8.Installthebrakespringontotheidlerarm(Figure38).
9.Installthedrivebeltcoverwiththeboltsthatyou
removedinstep1.
Note:Ensurethatthedrivebeltisproperlyadjusted
andoperating;refertoCheckingtheControlCable
(page12)andAdjustingtheControlCable(page13).
AdjustingtheQuickShoot™
Control
Ifthereismorethan13mm(1/2inch)ofslackintheQuick
Shootcable(Figure39)orthedischargechutedoesnotrotate
leftandrightinequalangles,adjusttheQuickShootcontrol
cables.

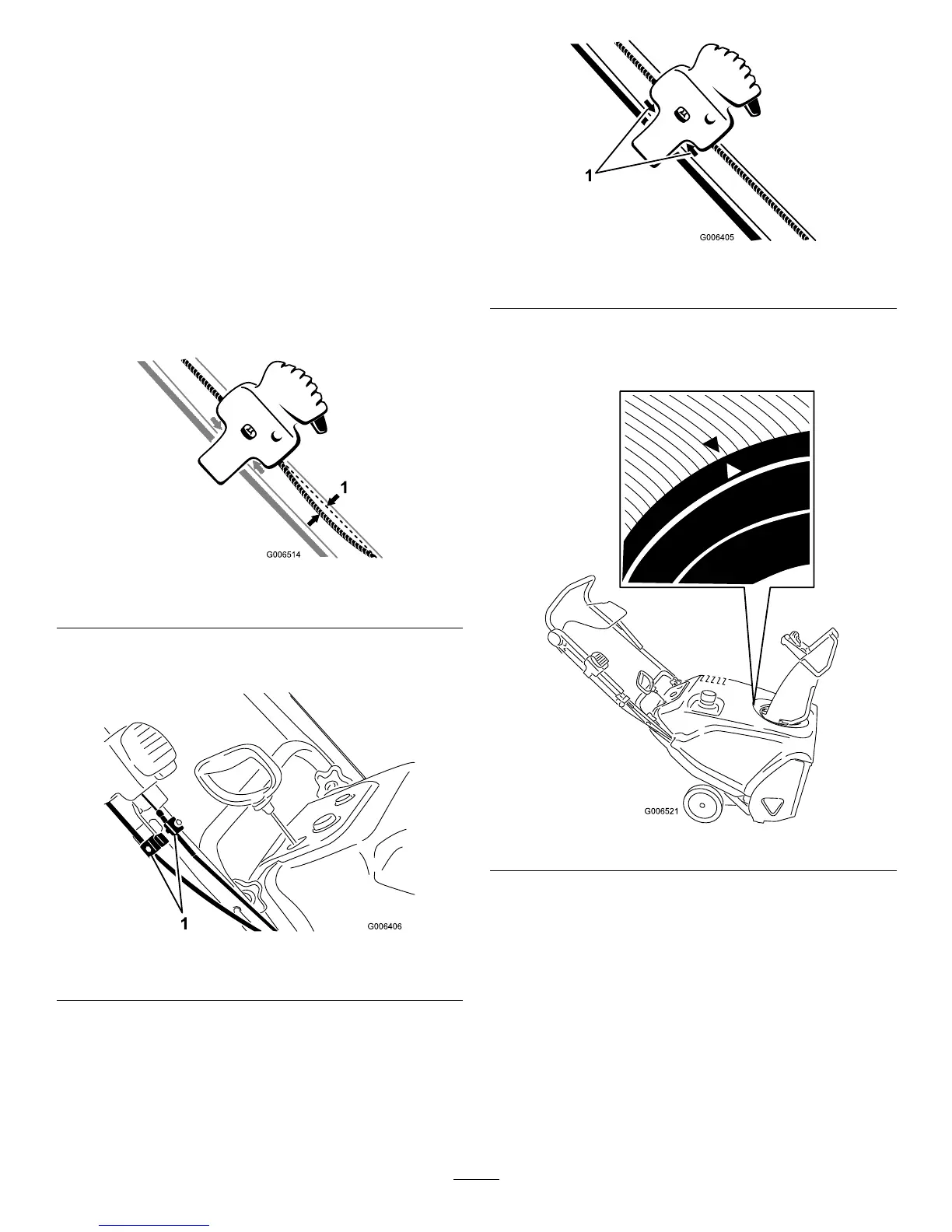

Figure39
1.13mm(1/2inch)maximumslack
1.Loosenthe2QuickShootcontrol-cableclamps(Figure
40).
Figure40
1.Cableclamps
2.PositiontheQuickShootcontrolbetweenthe2arrows
locatedontherightsideoftheupperhandle(Figure
41).
Figure41
1.Arrows
3.Rotatethedischargechutesothatitfacesstraight
aheadandthearrowonthebackofthedischargechute
alignswiththearrowontheshroud(Figure42).
Figure42
