Toro PowerPlex 51880 - Battery Pack Management; Removing the Battery Pack; Charging the Battery Pack

RemovingtheBatteryPack
1.Placethechainsawonaatsurface.
2.Pressdownonthelatchandremovethebattery
packfromthecavity.
g192109

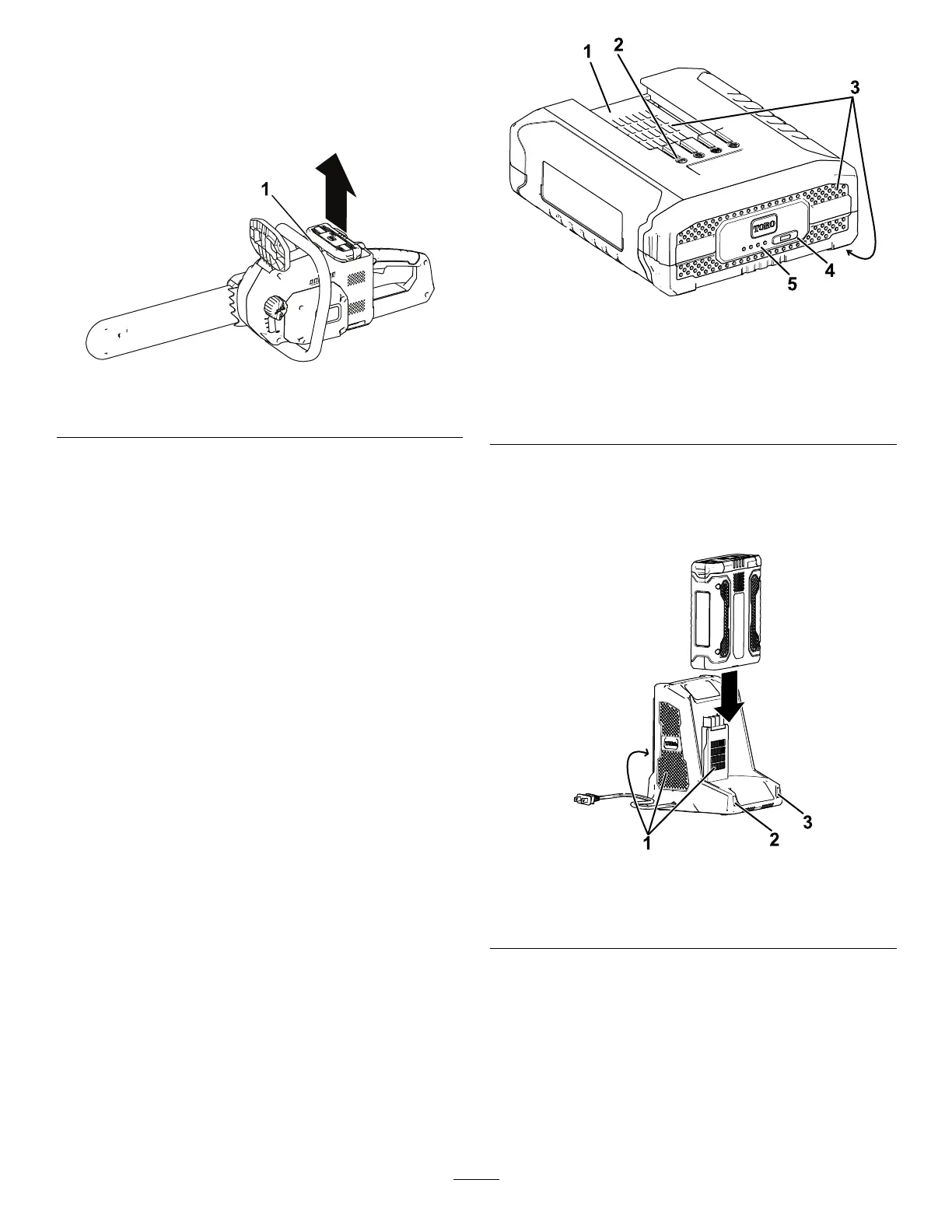

Figure22
1.Latch
ChargingtheBatteryPack
Important:Readallsafetyprecautions.
Important:Chargethebatterypackonlyin
temperaturesthatarewithintheappropriate
range;refertoSpecications(page8).
Note:Atanytime,pressthebattery-charge-indicator
buttononthebatterypacktodisplaythecurrent
charge(LEDindicators).
1.Makesurethattheventsonthebatterypackare
clearofanydustanddebris.
2.Lineupthecavityinthebatterypack(Figure23)
withthetongueonthecharger.
g228487
Figure23
1.Batterypackcavity4.Battery-charge-indicator
button
2.Batterypackterminals
5.LEDindicators(current
charge)
3.Batterypackventingareas
3.Makesurethattheventsonthebatterycharger
areclearofanydustanddebris.
4.Slidethebatterypackintothechargeruntilitis
fullyseated(Figure24).
g194423
Figure24
1.Chargerventingareas
3.Rightindicatorlight
2.Leftindicatorlight
5.Toremovethebatterypack,slidethebattery
backwardoutofthecharger.
6.RefertothefollowingtabletointerprettheLED
indicatorsonthebatterycharger.
