Important:Makesurethatthespring
washersareinstalledcorrectlyasshownin
Figure47.
5.Installthedustcap(Figure47).

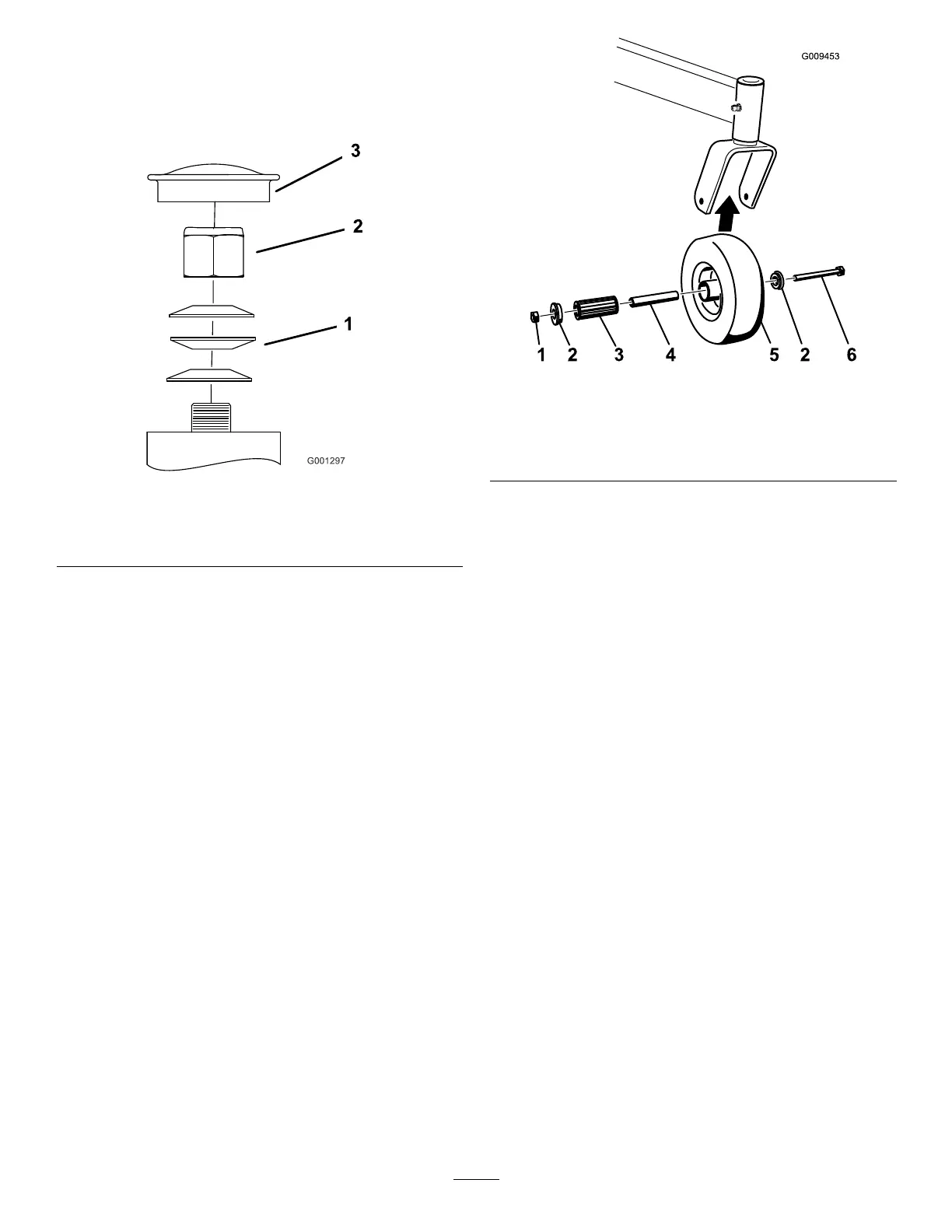

g001297
Figure47
1.Springwashers
3.Dustcap
2.Locknut
ServicingtheCaster
WheelsandBearings
Thecasterwheelsrotateonarollerbearingsupported
byaspannerbushing.Ifthebearingiskeptwell
lubricated,wearwillbeminimal.Failuretokeepthe
bearingwelllubricatedcausesrapidwear.Awobbly
casterwheelusuallyindicatesawornbearing.
1.Removethelocknutandwheelboltholdingthe
casterwheeltothecasterfork(Figure48).
g009453
Figure48
1.Locknut4.Rollerbearing
2.Bushing
5.Casterwheel
3.Spannerbushing
6.Wheelbolt
2.Remove1bushing,thenpullthespanner
bushingandrollerbearingoutofthewheelhub
(Figure48).
3.Removetheotherbushingfromthewheelhub
andcleananygreaseanddirtfromthewheel
hub(Figure48).
4.Inspecttherollerbearing,bushings,spanner
bushingandtheinsideofthewheelhubforwear.
Note:Replaceanydamagedorwornparts
(Figure48).
5.Place1bushingintothewheelhub(Figure48).
6.Greasetherollerbearingandspannerbushing,
andslidethemintothewheelhub(Figure48).
7.Placethesecondbushingintothewheelhub
(Figure48).
8.Installthecasterwheelintothecasterforkand
secureitwiththewheelboltandlocknut(Figure
48).
9.Tightenthelocknutuntilthespannerbushing
bottomsagainsttheinsideofthecasterforks
(Figure48).
10.Greasethettingonthecasterwheel.
