4
3352-550 Rev A

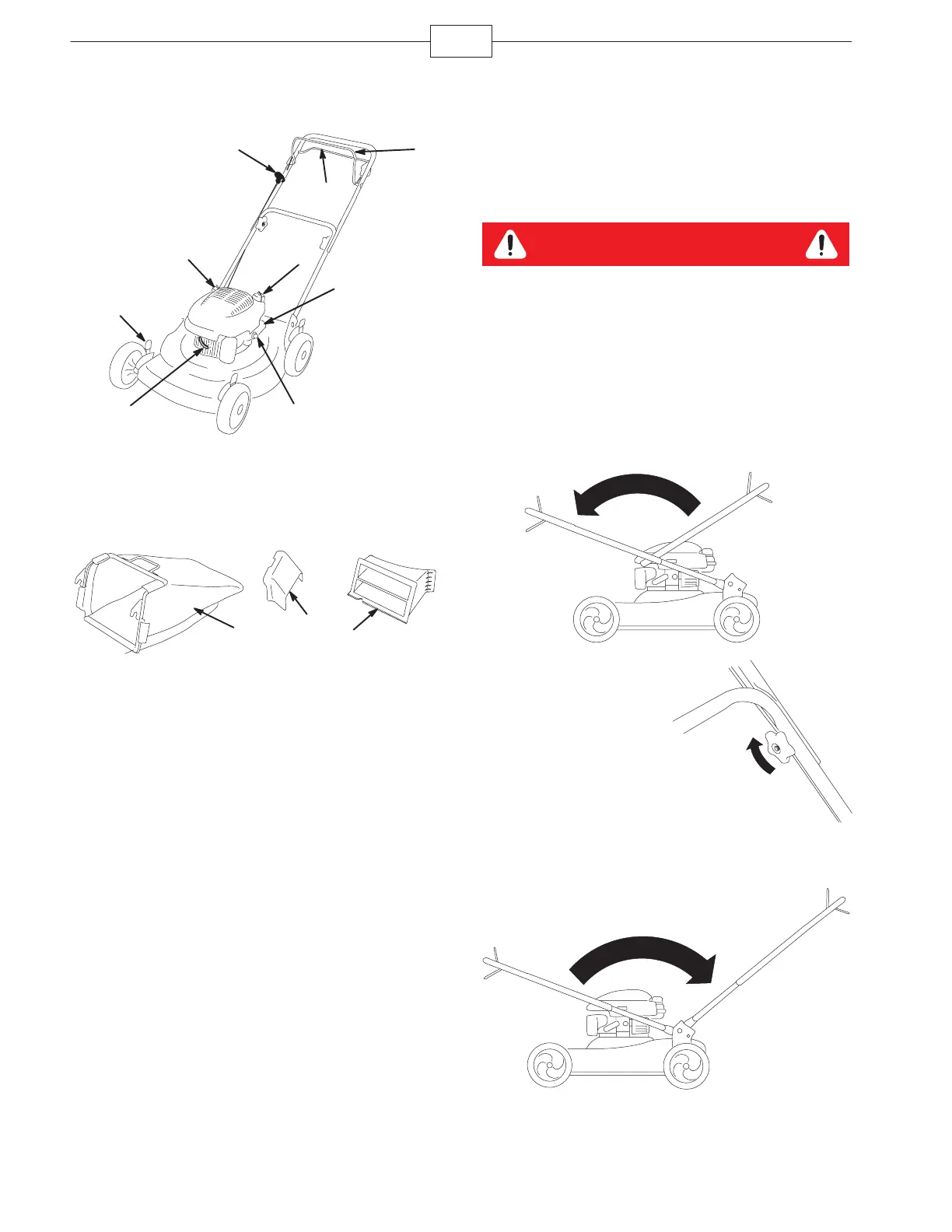

Product Overview
m-6292a
5
1
3
2
6
7
8
9
4
1. Cutting height lever
2. Oil fill/Dipstick
3. Recoil start handle
4. Blade control bar
5. Self-propel drive bar
6. Fuel tank cap
7. Air filter
8. Primer
9. Spark plug
m-5630/m-5637/m-5587
2
1
3
1. Grass bag
2. Side discharge chute
3. Rear discharge plug
(installed)
Setup
Important: Remove and discard the protective plastic
sheet that covers the engine.
Unfolding the Handle
Warning
Folding or unfolding the handle improperly can
damage the cables, causing an unsafe operating
condition.
S Do not damage the cables when folding or
unfolding the handle.
S If a cable is damaged, contact an Authorized
Service Dealer.
1. Carefully move the upper handle forward until the
handle halves are in line and nest together as shown.
m-5650a
2. Tighten the handle
knobs.
m-6289
3. Rotate the handle rearward (as shown) until it
clicks into place.
m-5650b
