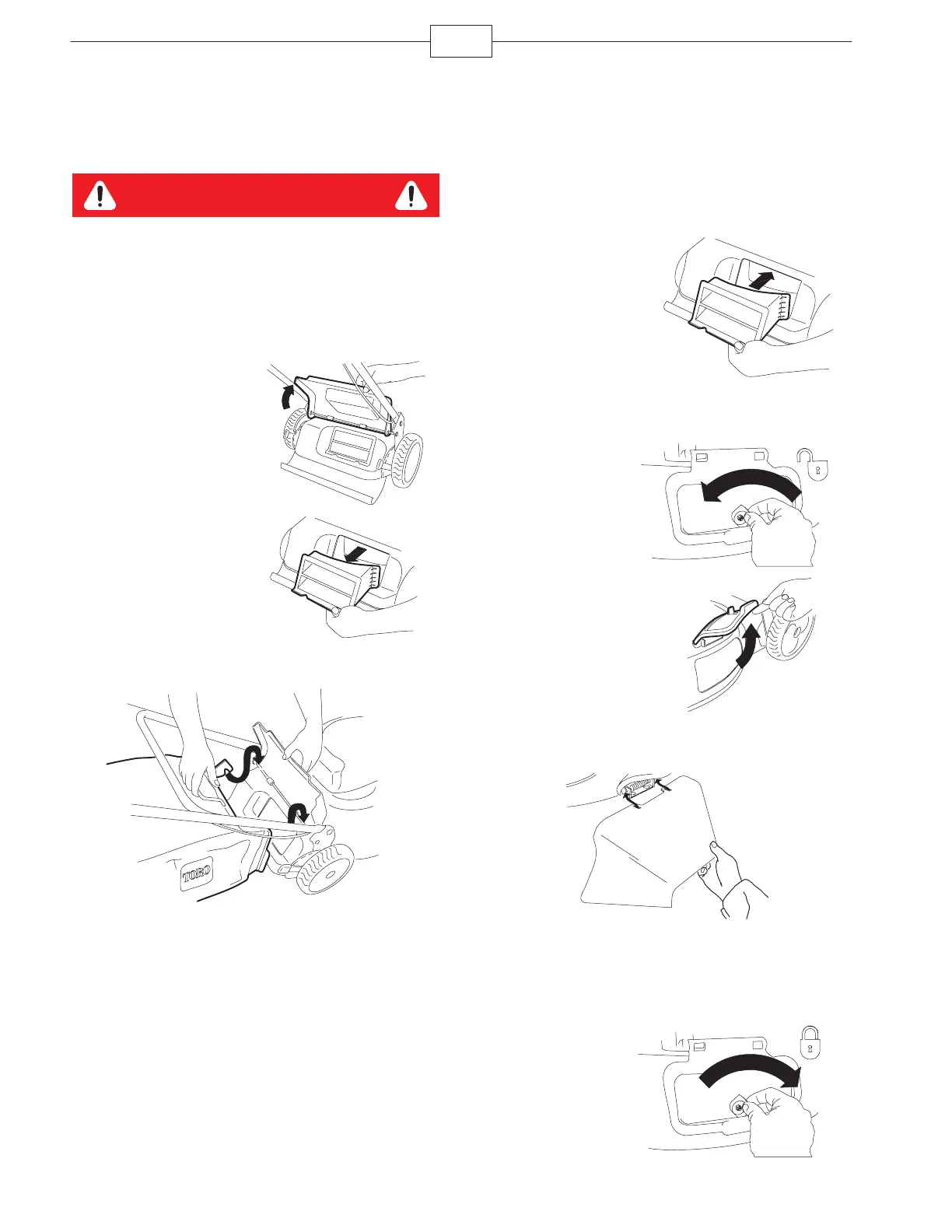

Bagging the Clippings
Use the grass bag when you want to collect grass
and leaf clippings from the lawn.
Warning
The blade is sharp; contacting the blade can
result in serious personal injury.
Stop the engine and wait for all moving parts to
stop before leaving the operating position.
Installing the Grass Bag
1. Raise and hold up
the rear door.
m-5586
2. Remove the rear
discharge plug.
m-5587
3. Install the bag onto the door rod.
m-5588
4. Lower the rear door.
Removing the Grass Bag
To remove the bag, reverse the steps above.
Side Discharging the
Clippings
Use the side discharge for cutting very tall grass.
If the bag is on the mower, remove it and insert the
rear discharge plug (refer to Removing the Grass Bag
on page 8) before side discharging the clippings.
Important: Ensure that
the rear discharge plug
is in place before you
side discharge the
clippings.
m-5587
Installing the Side Discharge Chute
1. Unlock the
side discharge
door.
m-7195
2. Lift open the side
discharge door.
m-5584
3. Install the side discharge chute and close the
door onto the chute.
m-5585
Removing the Side Discharge Chute
To remove the side discharge chute, reverse the
steps above.
Important: Lock
the side discharge
door after you
close it.
m-7196
