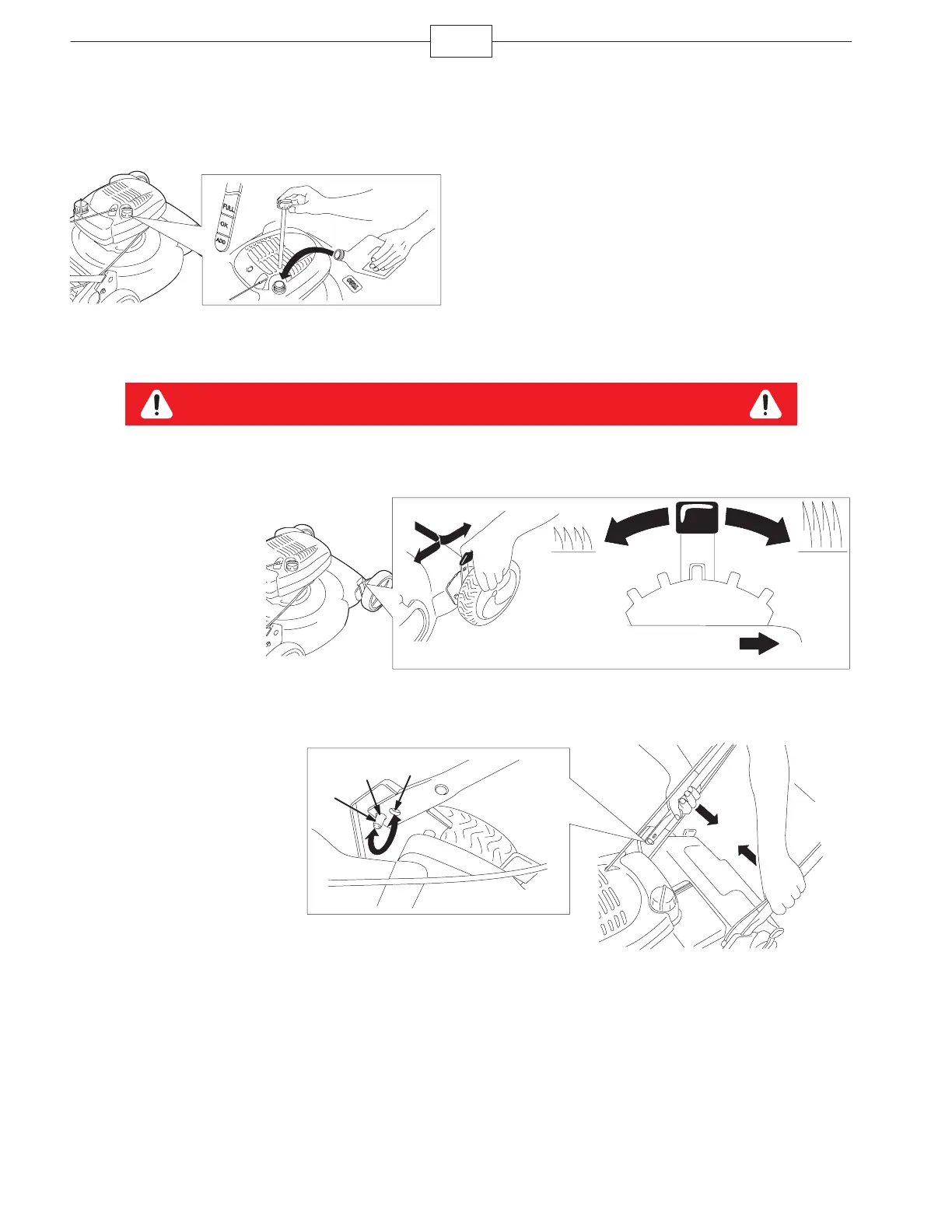

Checking the Engine Oil Level
1. Remove the dipstick, wipe it clean, and fully
install the dipstick.
m-5604a
m-5571
2. Remove the dipstick and check the oil level. If the
oil level is below the Add mark on the dipstick,
slowly pour oil into the oil fill tube to raise the oil level
to the Full mark on the dipstick. Do not overfill.
(Max. fill: 20 oz., type: SAE 30 detergent oil with an
API service classification of SF, SG, SH, SJ, SL, or
higher.)
3. Install the dipstick.
Adjusting the Cutting Height
Caution
If the engine has been running, the muffler will be hot and can severely burn you.
Keep away from the hot muffler.
Adjust the cutting height
as desired. Set all four
wheels to the same
height.
Note: To raise the mower,
move all 4 cutting height
levers forward; to lower
the mower, move them all
rearward.
1-5/8,
1-1/4,
2,
2-3/8,
2-3/4,
3-1/8,
3-7/8,
4-1/4,
3-1/2,
m-5629
m-5605a
FRONT
m-5604a
Adjusting the Handle Height
Squeeze the bottom of
the handle halves
together (as shown) and
change the handle holes
in which the pins (A) are
mounted, as follows:
• Raise the handle
using hole (B).
• Lower the handle
using hole (C).
m-5612
m-5614
A
B
C
