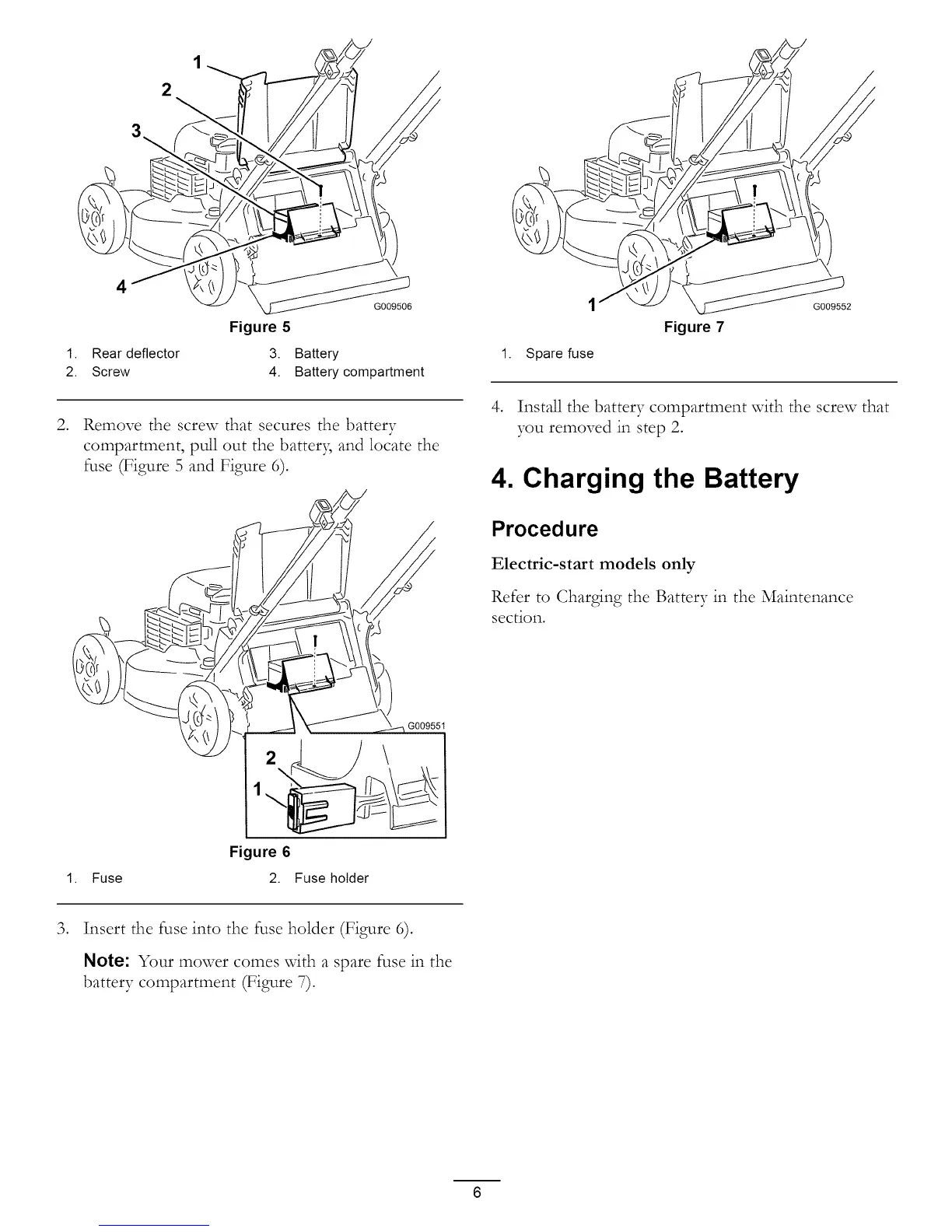

Figure 5
Rear deflector 3. Battery
Screw 4. Battery compartment
Figure 7
1. Spare fuse
4. Install the battery compartment with the screw that
Remove the screw that secures the battery you removed in step 2.
compartment, ptfll out the batter?, and locate the
fuse(F_ure5andF_gure6). 4. Charging the Battery
_ ///_i/'_f_T_ / Procedure
l ctri -,t rtmodel,on,y
Refer to Charging the Battery in the Maintenance
Figure 6
1. Fuse 2. Fuse holder
,
Insert the fuse into the fuse holder (Figure 6).
Note: Your mower comes with a spare fuse in the
battery compartment (Figure 7).
6

Toro Recycler Series Specifications

General

Deck Material	Steel
Mulching Capability	Yes
Bagging Capability	Yes
Side Discharge	Yes
Start Type	Recoil or Electric Start (varies by model)
Engine	Briggs & Stratton or Toro
Cutting Width	22 inches
Cutting Height Adjustment	Single Lever
