InstallingtheSparkPlug

g028109

Figure20

FuelSystem

Maintenance

CleaningtheSedimentCup

ServiceInterval:Every100hours

Yearlyorbeforestorage

Underneaththefuelvalveisasedimentcuptocatch

dirtinthefuel.

1.Parkthemachineonalevelsurfaceandengage

theparkingbrake.

2.Shutofftheengineandwaitforallmovingparts

tostop.

3.MovethefuelvalvetotheOFFposition,allthe

waytotheleft.

4.Unscrewthesedimentcup(Figure21).

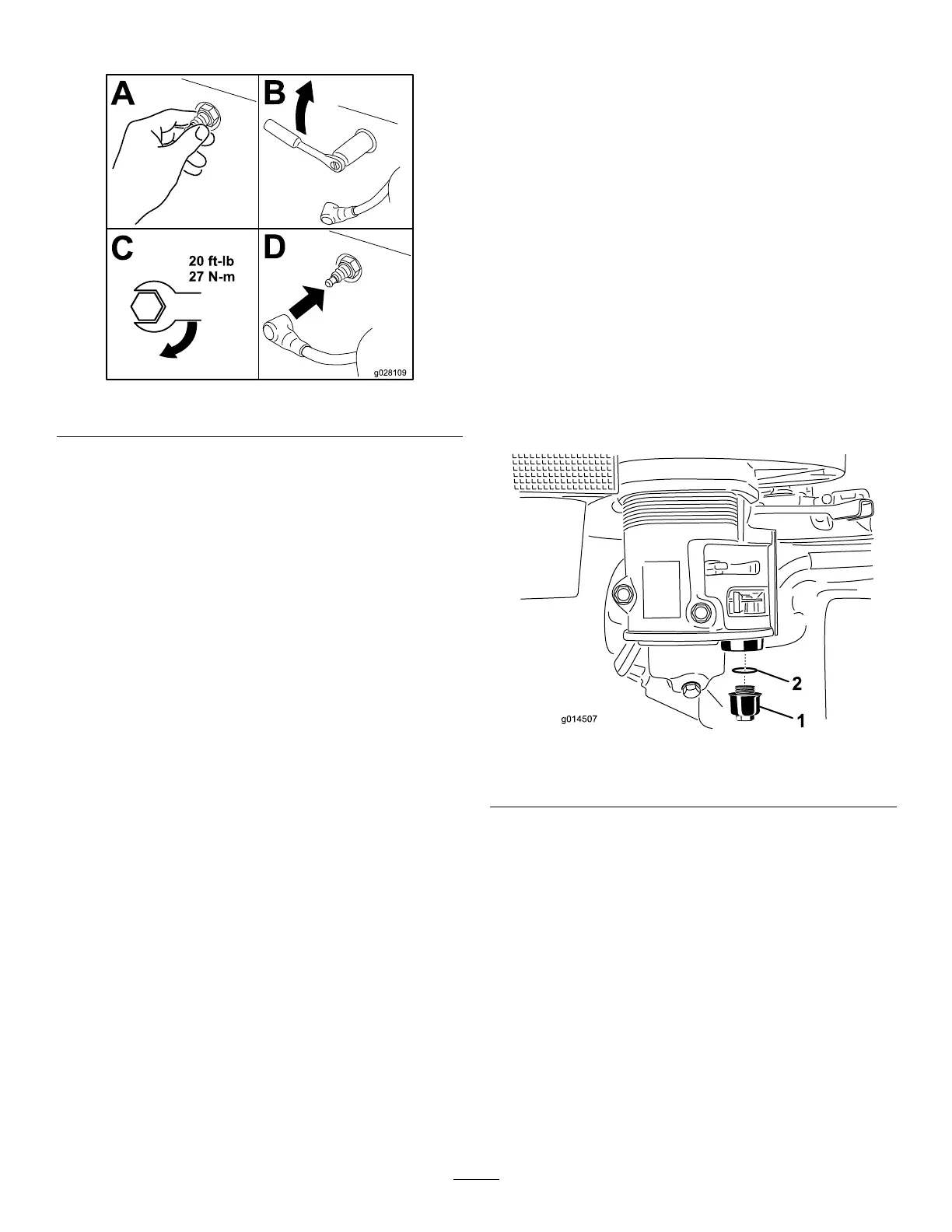

g014507

Figure21

1.Sedimentcup2.O-ring

5.CleanthereservoirandtheO-ringusinga

cleaningsolventanddrycarefully.

Note:MakesurenottomisplacetheO-ring.

6.PlacetheO-ringinthegrooveofthecupand

replacethesedimentcup.
