Installing the Jack Mount
1. Secure the jack mount to the left axle tube on
the front of the machine using 2 U-bolts and 4
locknuts ( Figure 1 ).

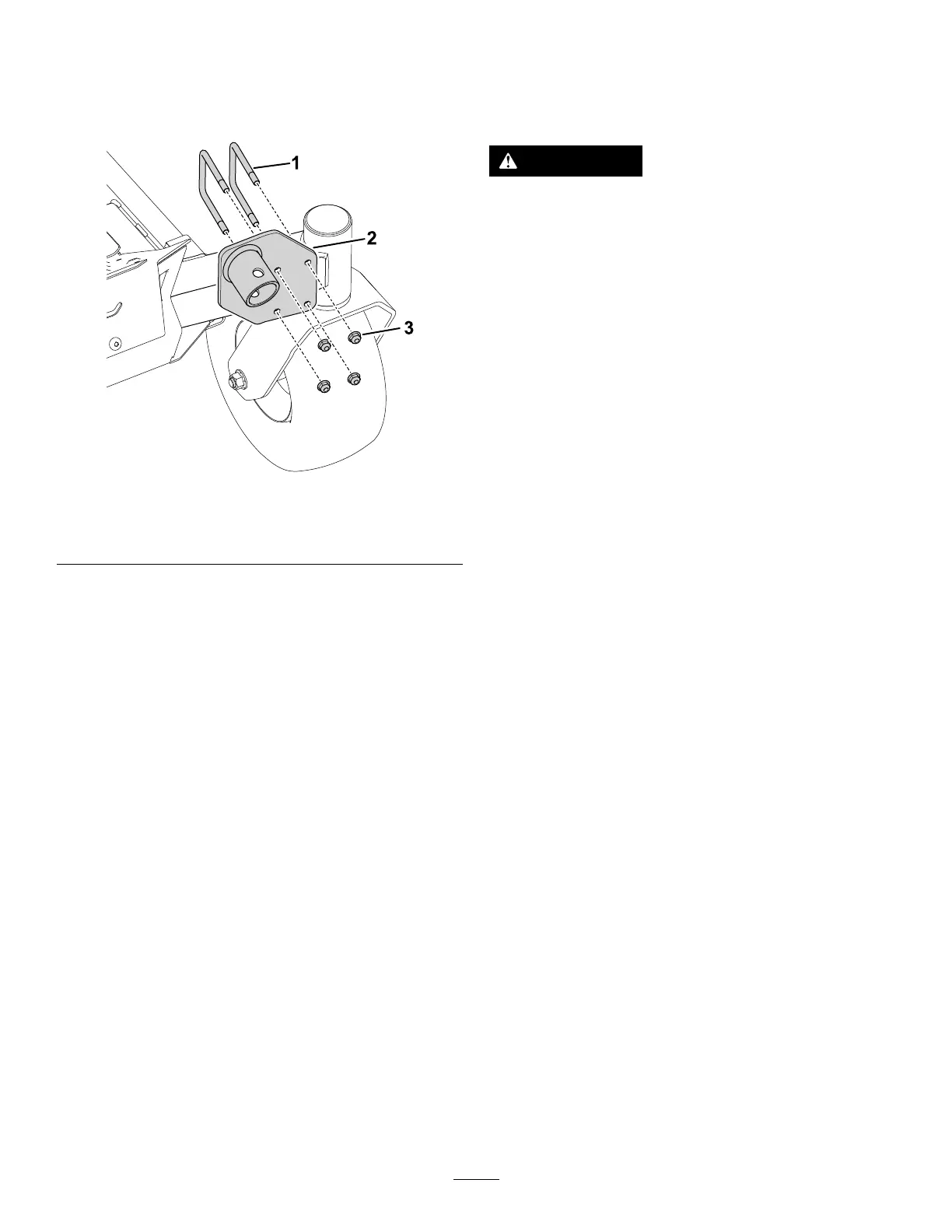

g467170
Figure 1
1. U-bolt 3. Locknut
2. Jack mount
2. T orque the fasteners to 19 to 25 N∙m (175 to
225 in-lb).
Operation
Using the Jack Mount
W ARNING
The machine could fall onto someone and
cause serious injury or death.
• Read and understand the Operator ’ s
Manual before performing maintenance.
• Always shut off the engine, engage the
parking brake, and remove the key before
performing maintenance on the machine.
• Do not keep the machine raised on the jack
for extended periods of time.
• Always use a jack on a level surface.
• Ensure that the jack is secured properly to
the jack mount using a jack pin.
• Do not rely solely on the jack for support.
Use adequate jack stands or equivalent
support.
• Do not mount or dismount the mower while
the jack is raised.
• Before each use, ensure that the jack and
jack mount work properly and that there
are no signs of damage.
Note: Use only a manufacturer-approved jack rated
at 907 kg (2,000 lb) or higher lift capacity with the
jack mount.
1. Park the machine on a level surface, disengage
the blade-control switch, and move the
motion-control levers outward to the P ARK
position.
Note: For electric models, move the
motion-control levers outward to the NEUTRAL
position and engage the parking brake.
2. Shut of f the machine, remove the key , and wait
for all moving parts to stop before leaving the
operating position.
3. Attach the jack to the jack mount with a jack pin
( Figure 2 ).
2
