Toro TimeCutter MX 3450 - Premaintenance Procedures; Raising the Seat; Lubrication; Greasing the Bearings

Premaintenance
Procedures
RaisingtheSeat
Makesurethatthemotion-controlleversarelockedinthe
PARKposition,andlifttheseatforward.
Thefollowingcomponentscanbeaccessedbyraisingtheseat:
•Serialplate
•Servicedecal
•Seat-adjustmentbolts
•Fuellter
•Batteryandbatterycables
Lubrication
GreasingtheBearings
ServiceInterval:Every25hours—Greasealllubrication
points.
GreaseType:No.2lithiumgrease
1.Parkthemachineonalevelsurface,anddisengagethe
blade-controlswitch.
2.Movethemotion-controlleversoutwardtothePARK
position,shutofftheengine,removethekey,and
waitforallmovingpartstostopbeforeleavingthe
operatingposition.
3.Cleanthegreasettings(Figure26andFigure27)with
arag.
Note:Makesuretoscrapeanypaintoffthefrontof
thetting(s).
1
G014522

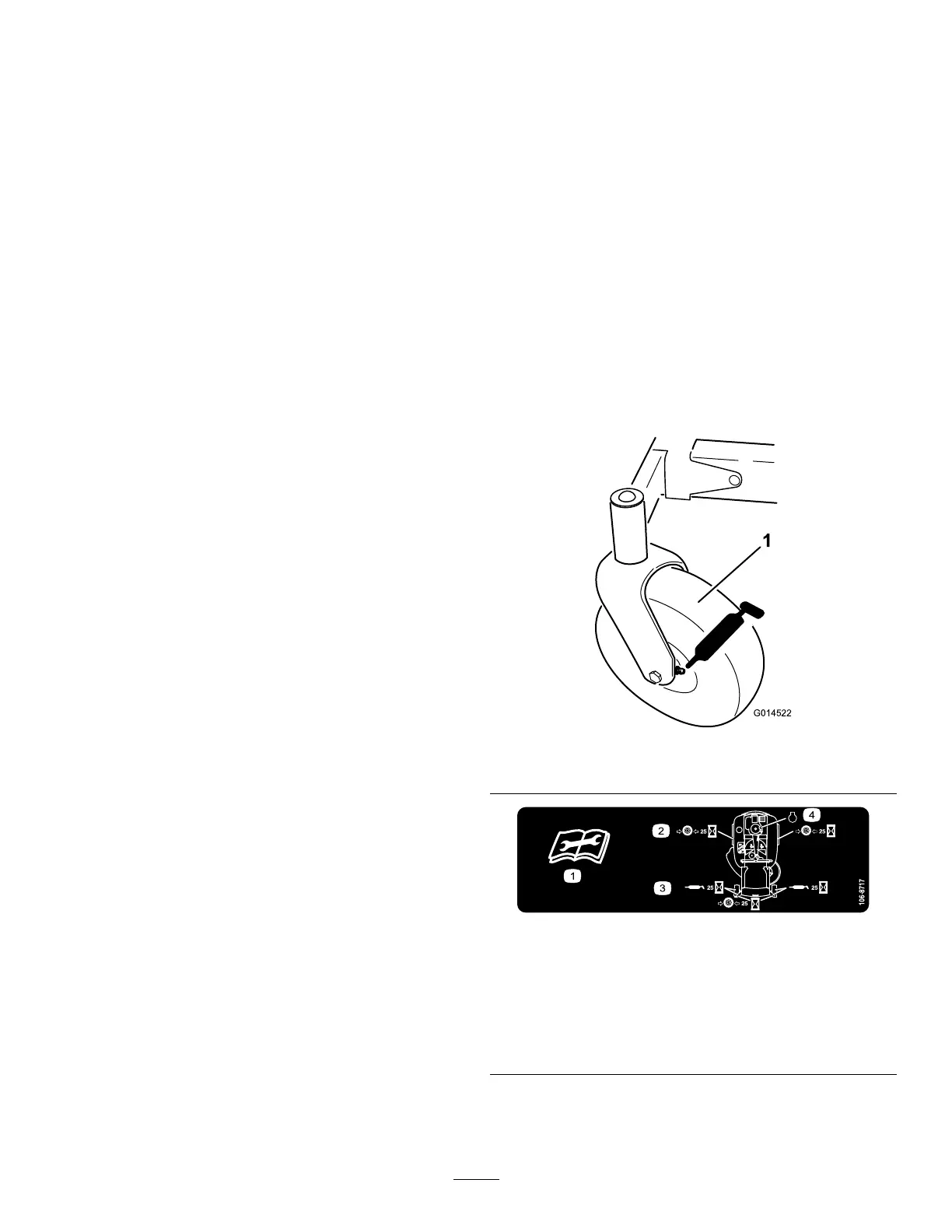

Figure26
1.Frontcastertire
Figure27
Locatedontheseat-panunderside
1.Readtheinstructions
beforeservicingor
performingmaintenance
3.Greaseevery25operating
hours
2.Checkthetirepressure
every25operatinghours
4.Engine
4.Connectagreaseguntoeachttingandpumpgrease
intothettingsuntilgreasebeginstooozeoutofthe
bearings(Figure26andFigure27).
27
