g336421

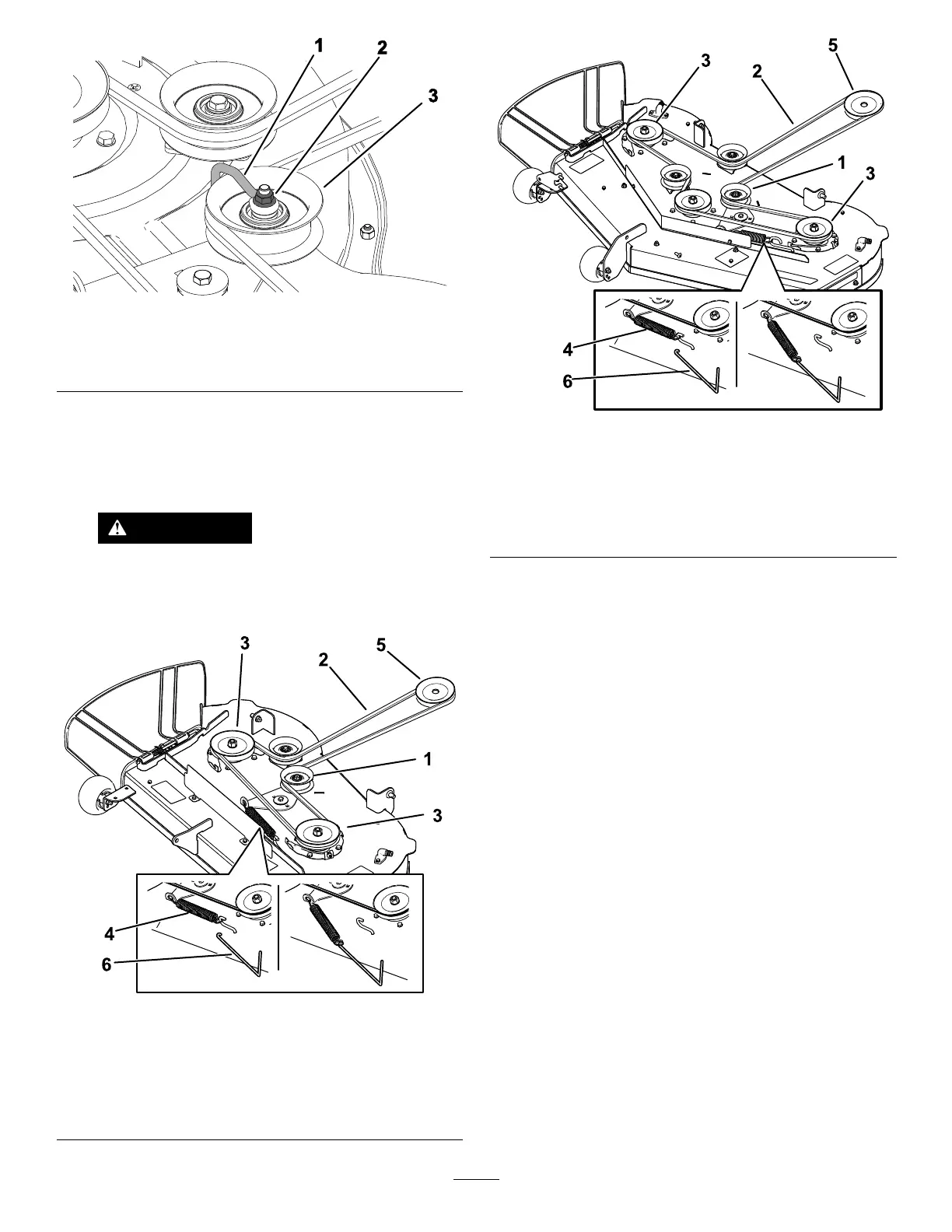

Figure56
1.Wireform
3.Idlerpulley
2.Nut
7.Usingaspring-removaltool(ToroPartNo.
92-5771),removetheidlerspringfromthedeck
hooktoremovetensionontheidlerpulley,and
rollthebeltoffthepulleys(Figure57orFigure
58).
WARNING
Thespringisundertensionwhen
installedandcancausepersonalinjury.
Becarefulwhenremovingthebelt.
g298025
Figure57
Mowerdeckswith2blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
g298026
Figure58
Mowerdeckswith3blades
1.Idlerpulley
4.Spring
2.Mowerbelt
5.Enginepulley
3.Outsidepulley6.Spring-removaltool
8.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure57orFigure58).
9.Usingaspring-removaltool(ToroPartNo.
92-5771),installtheidlerspringoverthedeck
hookandplacetensionontheidlerpulleyand
themowerbelt(Figure57orFigure58).
10.Fordeckswith3blades,tightenthenutsecuring
thewireformtotheidlerpulley.
Note:Positionthewireformagainsttheidler
armasshowninFigure56.
11.Installthepulleycovers.
12.Tightenthebottom2boltsforthemower-deck
curtaintothemowerdeck.RefertoReleasing
theMower-DeckCurtain(page32).
