rollthebeltoffthepulleys(Figure47orFigure
48).

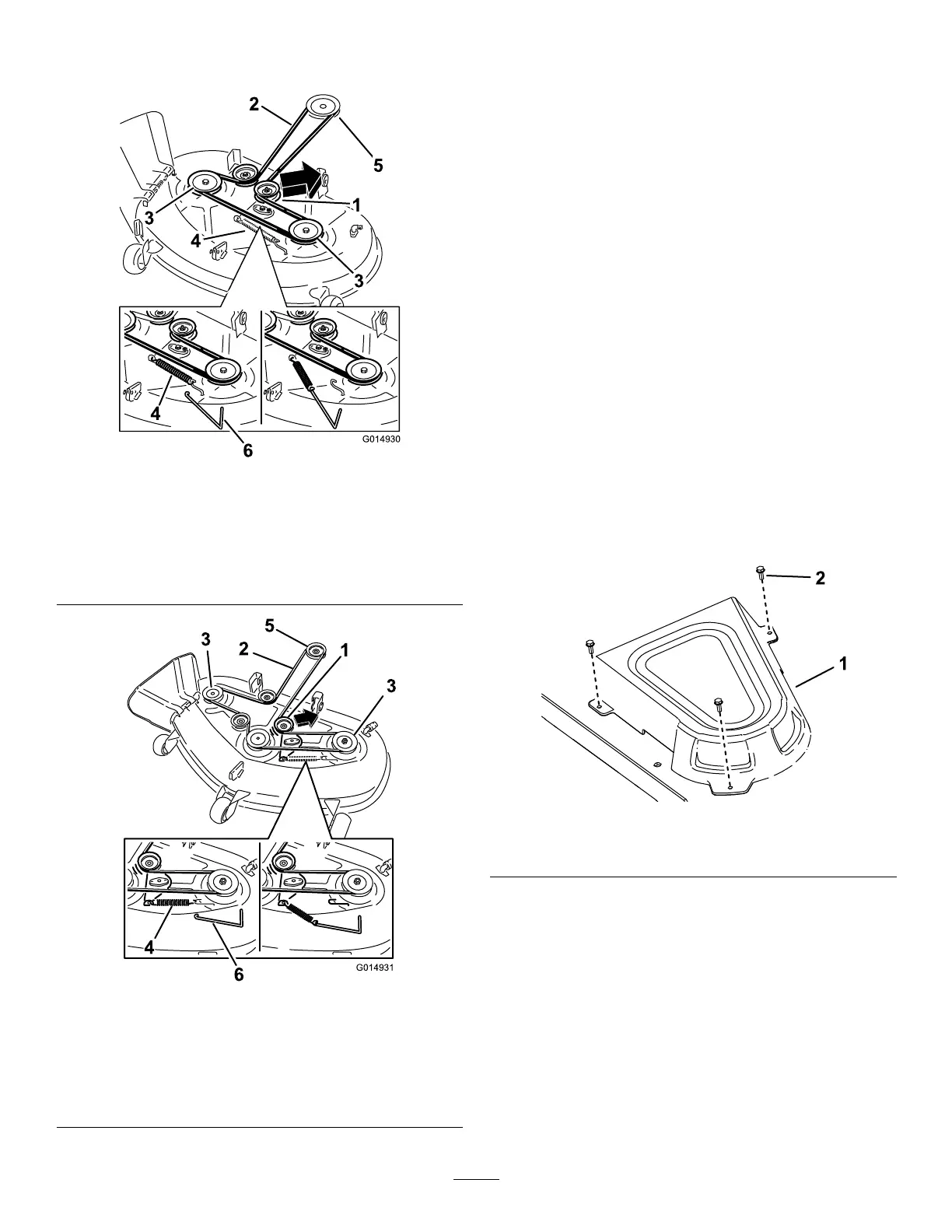

g014930
Figure47
MowerDeckswith2Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
g014931
Figure48
MowerDeckswith3Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
6.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure47orFigure48).
7.Usingaspring-removaltool,installtheidler
springoverthedeckhook,andplacetension
ontheidlerpulleyandmowerbelt(Figure47
orFigure48).
8.Installthepulleycovers.
MXMachines
Thesignsofawornbeltincludesquealingwhilethe
beltisrotating,bladesslippingwhilecuttinggrass,
andfrayededges,burnmarks,andcracksonthebelt.
Replacethemowerbeltifanyoftheseconditionsare
evident.
1.Parkthemachineonalevelsurface,disengage
theblade-controlswitch(PTO),andengagethe
parkingbrake.
2.Shutofftheengine,removethekey,andwait
forallmovingpartstostopbeforeleavingthe
operatingposition.
3.Settheheight-of-cutatthelowestcutting
positionof38mm(1-1/2inches).
4.Removethepulleycovers(Figure49).
g188324
Figure49
1.Cover2.Screw
5.Usingaspring-removaltool,(ToroPartNo.
92-5771),removetheidlerspringfromthedeck
hooktoremovetensionontheidlerpulley,and
rollthebeltoffthepulleys(Figure50andFigure
51).
40
