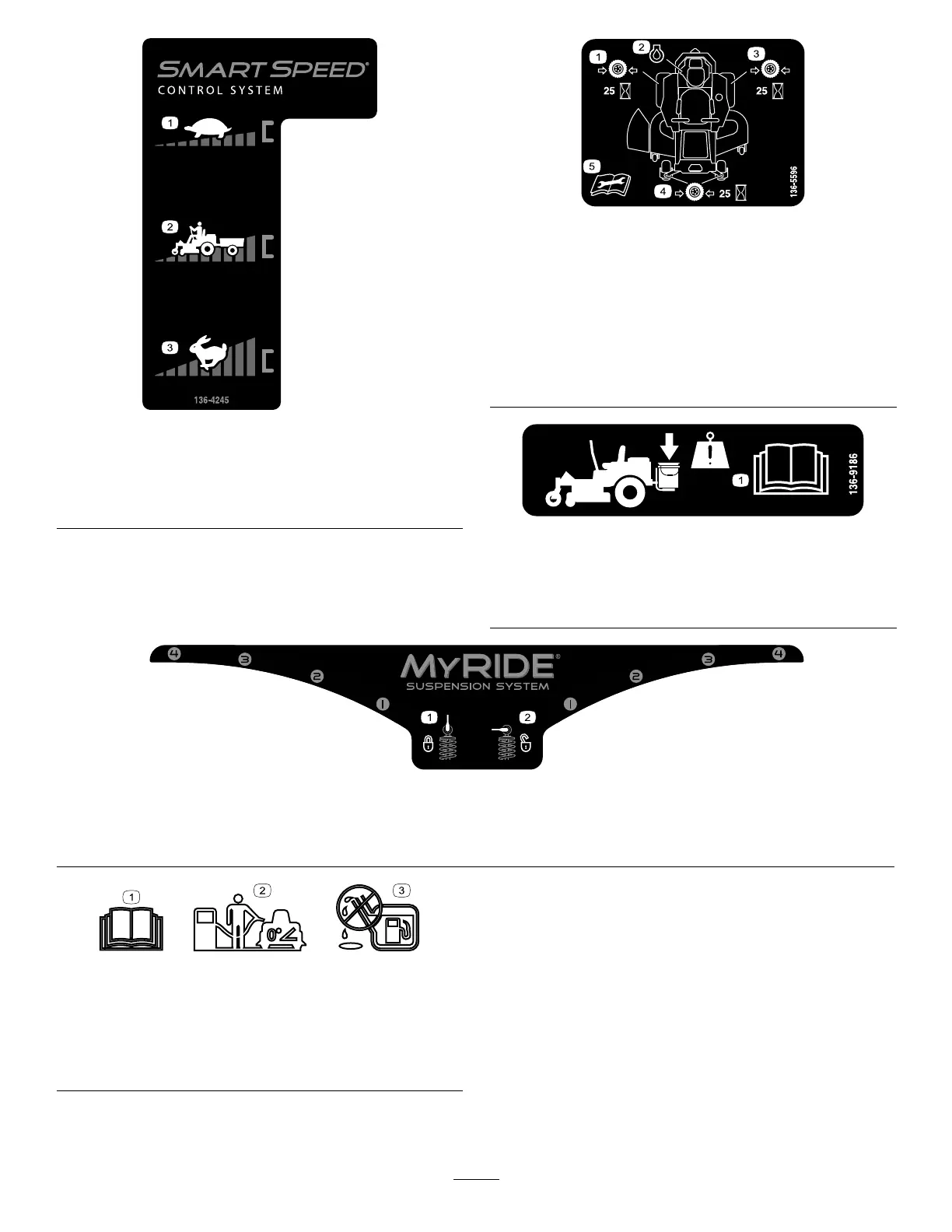

decal136-4245

136-4245

ForMachineswithMyRide™

1.Slow

3.Fast

2.Transport

decal136-5596

136-5596

ForModelswith152cm(60inch)DecksorMyRide

1.Checkthetirepressure

every25operatinghours.

4.Checkthetirepressure

every25operatinghours.

2.Engineoil

5.ReadtheOperator's

Manualbeforeperforming

maintenance.

3.Checkthetirepressure

every25operatinghours.

decal136-9186

136-9186

ForModelswith152cm(60inch)Decks

1.ReadtheOperator'sManualbeforeaddingweighttothe

bucket.

decal137-7044

137-7044

ForMachineswithMyRide™

1.Camlock2.Camunlock

decal138-2456

138-2456

1.ReadtheOperator’s

Manual.

3.Donotoverllthefuel

tank.

2.Parkthemachineona

levelsurfacewhenlling

thefueltank.

Table of Contents3
Safety4
General Safety4
Slope Indicator5
Safety and Instructional Decals6
Product Overview15
Controls15
Before Operation17
Before Operation Safety17
Adding Fuel17
Performing Daily Maintenance18
Breaking in a New Machine18
Using the Safety-Interlock System19
Positioning the Seat19
Adjusting the Myride™ Suspension System20
Adjusting the Motion-Control Levers21
During Operation21
During Operation Safety21
Operating the Mower Blade-Control Switch (PTO)23
Operating the Throttle24
Operating the Choke24
Starting the Engine24
Shutting off the Engine24
Using the Motion-Control Levers25
Driving the Machine25
Using the Side Discharge27
Adjusting the Height of Cut27
Adjusting the Anti-Scalp Rollers28
Using Attachments and Accessories29
Operating Tips29
After Operation30
After Operation Safety30
Pushing the Machine by Hand30
Transporting the Machine30
Maintenance33
Recommended Maintenance Schedule(S)33
Pre-Maintenance Procedures34
Maintenance Safety34
Raising the Seat34
Lubrication35
Greasing the Bearings35
Engine Maintenance36
Engine Safety36
Servicing the Air Cleaner36
Servicing the Engine Oil38
Servicing the Spark Plug40
Cleaning the Cooling System41
Fuel System Maintenance41
Replacing the In-Line Fuel Filter41
Electrical System Maintenance42
Electrical System Safety42
Servicing the Battery42
Servicing the Fuses44
Drive System Maintenance44
Checking the Tire Pressure44
Releasing the Electric Brake45
Belt Maintenance45
Replacing the Mower-Deck Belt45
Mower Maintenance47
Servicing the Cutting Blades47
Leveling the Mower Deck49
Removing the Mower Deck51
Installing the Mower52
Replacing the Grass Deflector53
Replacing the Grass Deflector54
Cleaning55
Washing the Underside of the Mower Deck55
Cleaning the Suspension System55
Disposing of Waste55
Storage56
Storage Safety56
Cleaning and Storage56
Storing the Battery57
Troubleshooting58
Schematics60
