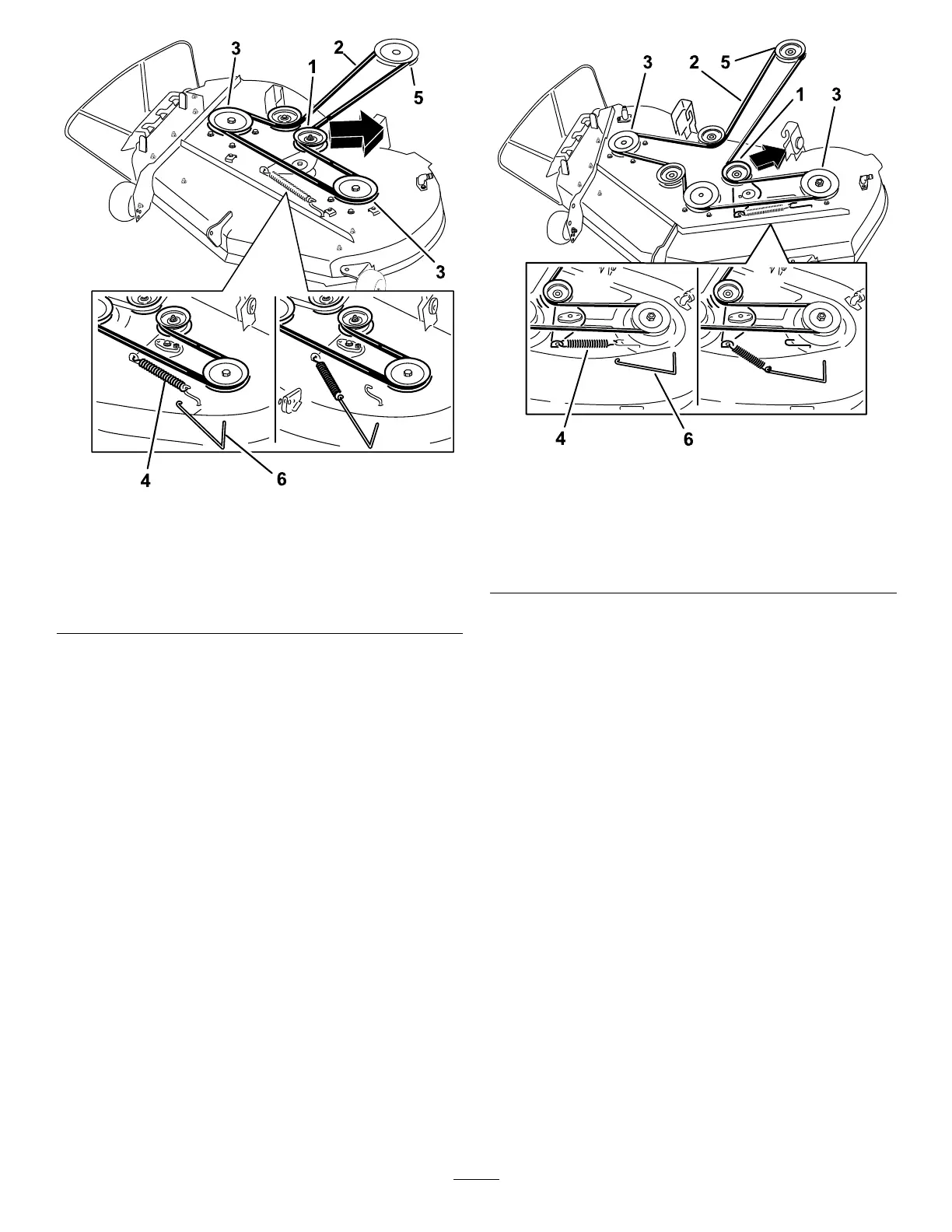

g225831
Figure50
MowerDeckswith2Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
g225832
Figure51
MowerDeckswith3Blades
1.Idlerpulley
4.Spring
2.Mowerbelt5.Enginepulley
3.Outsidepulley6.Spring-removaltool
6.Routethenewbeltaroundtheenginepulleyand
mowerpulleys(Figure50orFigure51).
7.Usingaspring-removaltool,installtheidler
springoverthedeckhook,andplacetension
ontheidlerpulleyandmowerbelt(Figure50
orFigure51).
8.Installthepulleycovers.
41
