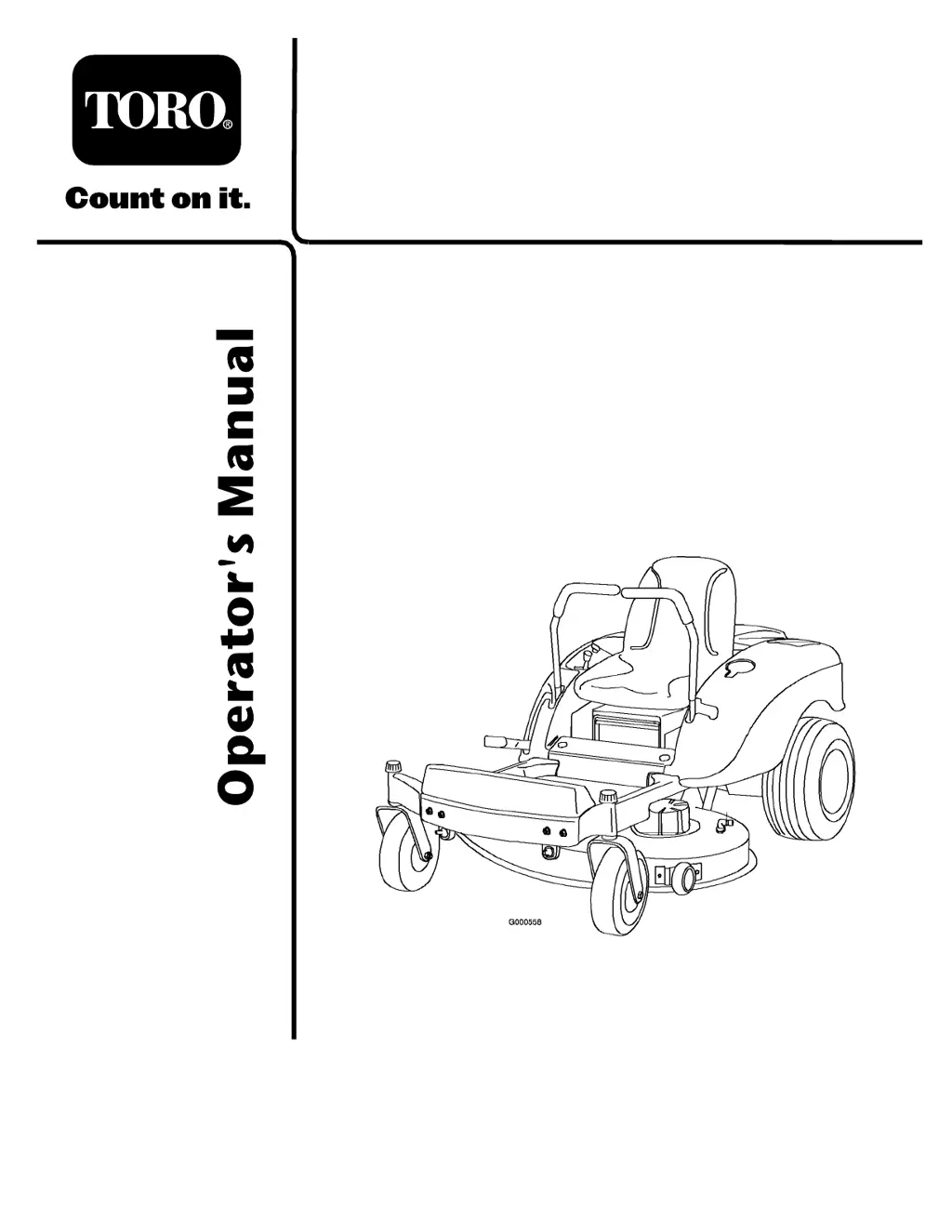

Toro TimeCutter Z420 - User Manual

Questions and Answers

M
Melissa OlsonAug 22, 2025
Why is my Toro Lawn Mower cutting height uneven?
- J
  Jamie StephensAug 22, 2025
  If the cutting height of your Toro Lawn Mower is uneven, several factors could be the cause. Start by sharpening the blade(s). If a cutting blade(s) is bent, install a new one. Ensure the mower is level from side-to-side and front-to-rear. Adjust the anti-scalp wheel height if it's not set correctly. Clean the underside of the mower if it's dirty. Adjust the tire pressure if it's incorrect. If a blade spindle is bent, contact an Authorized Service Dealer.
K
karen75Aug 25, 2025
What to do if Toro TimeCutter Z420 blades do not rotate?
- P
  Pamela ClayAug 25, 2025
  If your Toro Lawn Mower blades do not rotate, it could be due to a few reasons: * The drive belt is worn, loose, or broken: Install a new drive belt. * The drive belt is off of the pulley: Install the drive belt and check the adjusting shafts and belt guides for the correct position. * The mower belt is worn, loose, or broken: Install a new mower belt.
J
James JeffersonAug 27, 2025
How to troubleshoot a Toro Lawn Mower that won't start?
- R
  Richard ClarkAug 27, 2025
  If your Toro Lawn Mower engine will not start, starts hard, or fails to keep running, consider the following: * Ensure the fuel tank is filled. * Check that the fuel valve is open. * Make sure the choke is on. * Inspect and clean or replace the air cleaner element if it's dirty. * Ensure the spark plug wire(s) is securely installed. * Replace any pitted, fouled, or incorrectly gapped spark plug(s). * Add oil to the crankcase if the oil level is low.
J
julia20Aug 29, 2025
How to fix Toro TimeCutter Z420 engine overheating?
- V
  vaveryAug 29, 2025
  If your Toro Lawn Mower engine overheats, there are several potential causes. First, the engine load might be excessive, so try reducing your ground speed. Also, check the oil level in the crankcase and add oil if it's low. Make sure the cooling fins and air passages under the engine blower housing are free from obstructions. A dirty air cleaner can also contribute to overheating, so clean or replace it. Finally, dirt, water, or stale fuel in the fuel system can be a factor, in which case you should contact an Authorized Service Dealer.
K
Kelly SweeneyAug 31, 2025
Why does my Toro TimeCutter Z420 Lawn Mower engine lose power?
- C
  Connie BrownSep 1, 2025
  If your Toro Lawn Mower engine loses power, consider these possible causes: the engine load may be too high, so reduce ground speed. Clean the air cleaner element if it's dirty. Add oil to the crankcase if the oil level is low. Remove any obstructions from the cooling fins and air passages. Install new spark plug(s) if the existing ones are pitted, fouled, or have an incorrect gap. Open the vent in the fuel cap if it's closed. Replace the fuel filter if it's dirty. For issues related to dirt, water, or stale fuel in the fuel system, contact an Authorized Service Dealer. If you have incorrect fuel, drain the tank and replace it with the proper type.
S
Steven BellSep 2, 2025
How to fix Toro Lawn Mower when engine overheats?
- Z
  Zachary CollinsSep 2, 2025
  If your Toro Lawn Mower's engine is overheating, several factors could be the cause. First, the engine load might be excessive, so try reducing your ground speed. Also, check the oil level in the crankcase and add oil if it's low. Make sure the cooling fins and air passages under the engine blower housing are not plugged; if they are, remove the obstruction. A dirty air cleaner can also cause overheating, so clean or replace the air cleaner element. If the issue persists, there may be dirt, water, or stale fuel in the fuel system, and you should contact an Authorized Service Dealer.
E
Erika TylerSep 6, 2025
Why is my Toro TimeCutter Z420 cutting unevenly?
- M
  Matthew VillarrealSep 6, 2025
  Uneven cutting height with your Toro Lawn Mower can be caused by several factors. Ensure that the blade(s) is sharp, if not, sharpen the blade(s). A bent cutting blade(s) will also cause this, so install a new cutting blade(s). Check if the mower is level from side-to-side and front-to-rear and level it if necessary. An incorrectly set anti-scalp wheel can also lead to uneven cutting, so adjust the anti-scalp wheel height. A dirty underside of the mower can interfere with cutting, so clean it. Incorrect tire pressure can also be a factor, so adjust the tire pressure. If a blade spindle is bent, contact an Authorized Service Dealer.
M
Michael FordSep 8, 2025
What to do if Toro TimeCutter Z420 Lawn Mower starter does not crank?
- N
  Nicole SmithSep 8, 2025
  If the starter on your Toro Lawn Mower doesn't crank, several issues could be the cause. Ensure the blade control (PTO) is disengaged. The motion control levers should be in the brake position. Make sure you are seated on the seat. If the battery is dead, charge it. Check the electrical connections for corrosion or looseness and ensure good contact. Replace the fuse if it's blown. If a relay or switch is damaged, contact an Authorized Service Dealer.
R
Robert WilliamsSep 10, 2025
Why is my Toro TimeCutter Z420 Lawn Mower vibrating abnormally?
- K
  Kim HoltSep 10, 2025
  If you are experiencing abnormal vibration with your Toro Lawn Mower, check the following: tighten the engine mounting bolts if they are loose. Tighten the engine pulley, idler pulley, or blade pulley if any are loose. If the engine pulley is damaged or a blade spindle is bent, contact an Authorized Service Dealer. Install a new cutting blade(s) if the current one(s) is/are bent or unbalanced. Tighten the blade mounting bolt if it is loose.
J
Jeffrey BellSep 12, 2025
Why Toro Lawn Mower starter does not crank?
- M
  megan78Sep 12, 2025
  If the starter on your Toro Lawn Mower isn't cranking, there are a few things to check. Make sure the blade control (PTO) is disengaged. Also, ensure the motion control levers are in the brake position and that you are seated on the seat. A dead battery can also prevent the starter from cranking, so charge the battery. Check the electrical connections for corrosion or looseness and ensure they have good contact. A blown fuse could also be the problem, so replace the fuse. If none of these steps work, a relay or switch may be damaged, requiring you to contact an Authorized Service Dealer.

Summary

Safety

Safe Operating Practices

General guidelines for safe mower operation and avoiding hazards.

Slope Operation

Specific safety precautions and techniques for operating the mower on slopes.

Children Safety

Towing Safety

Toro Riding Mower Safety

Controls

Operation

Operational Safety First

Fueling and Engine Start-Up

Covers recommended gasoline and procedures for starting and stopping the engine.

Mowing Controls and Adjustments

Explains blade operation, safety interlocks, driving, seat, and height adjustments.

Mowing Procedures and Tips

Maintenance

Maintenance Schedules and Preparation

Engine System Maintenance

Servicing the air cleaner, oil, fuel system, and electrical components.

Mower and Drive System Maintenance

Storage

Cleaning and Storage

Troubleshooting

Toro TimeCutter Z420 Specifications

General

Cutting Width	42 inches
Ground Speed Forward	7 mph
Ground Speed Reverse	3 mph
Deck Type	Fabricated
Fuel Capacity	3 gal
Transmission	Hydrostatic
Cutting Height	1.5 - 4.5 in
Transmission System	Hydrostatic
Warranty	3-year limited
