BaggingtheClippings
Usethegrassbagwhenyouwanttocollectgrassandleafclippingsfromthelawn.
Iftheside-dischargechuteisonthemower,removeitbeforebaggingtheclippings;refertoRemovingthe
Side-DischargeChute(page18).
InstallingtheGrassBag
1.Raiseandholdupthereardoor(AofFigure24).
2.Removetherear-dischargeplugbypullingdownonthelatchwithyourthumbandpullingtheplugout
fromthemachine(BofFigure24).
3.Installthebagrodintothenotchesatthebaseofthehandleandrockthebagbackandforthtoensure
thattherodisseatedatthebottomofbothnotches(CofFigure24).
4.Lowerthereardooruntilitrestsonthegrassbag.

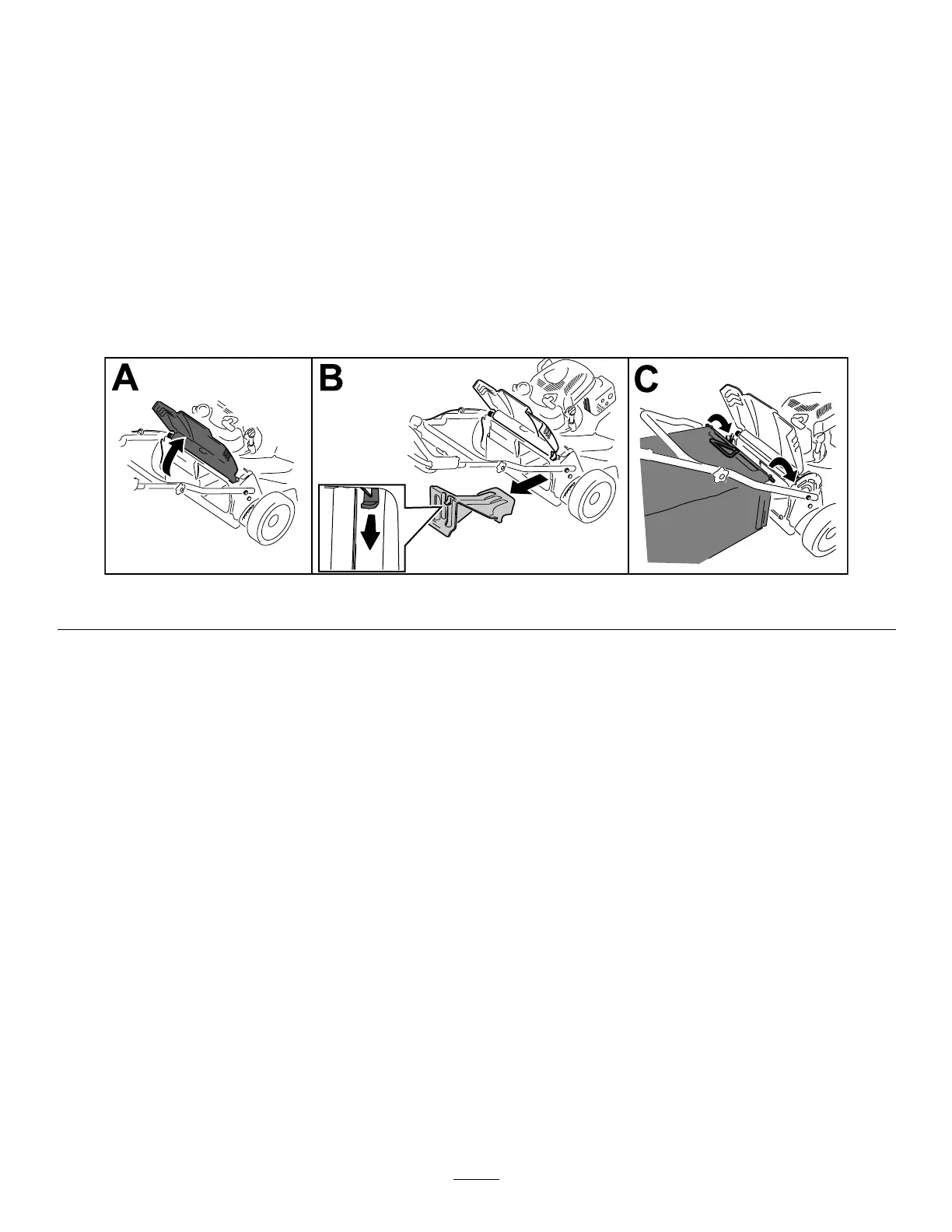

g244854
Figure24
RemovingtheGrassBag
Toremovethebag,reversethestepsinInstallingtheGrassBag(page17).
Side-DischargingtheClippings
Usethesidedischargeforcuttingverytallgrass.
Ifthebagisonthemachine,removeitandinserttherear-dischargeplug;refertoRemovingtheGrassBag
(page17)beforeside-dischargingtheclippings.
Important:Ensurethattherear-dischargeplugisinplacebeforeyourecycletheclippings(Figure23).
InstallingtheSide-DischargeChute
1.Liftopentheside-dischargedoor(AofFigure25).
2.Installtheside-dischargechuteandclosethedoorontothechute(BandCofFigure25).
