Toro TX 525 - Hydraulic Filter Replacement; Replacing the Hydraulic Filter

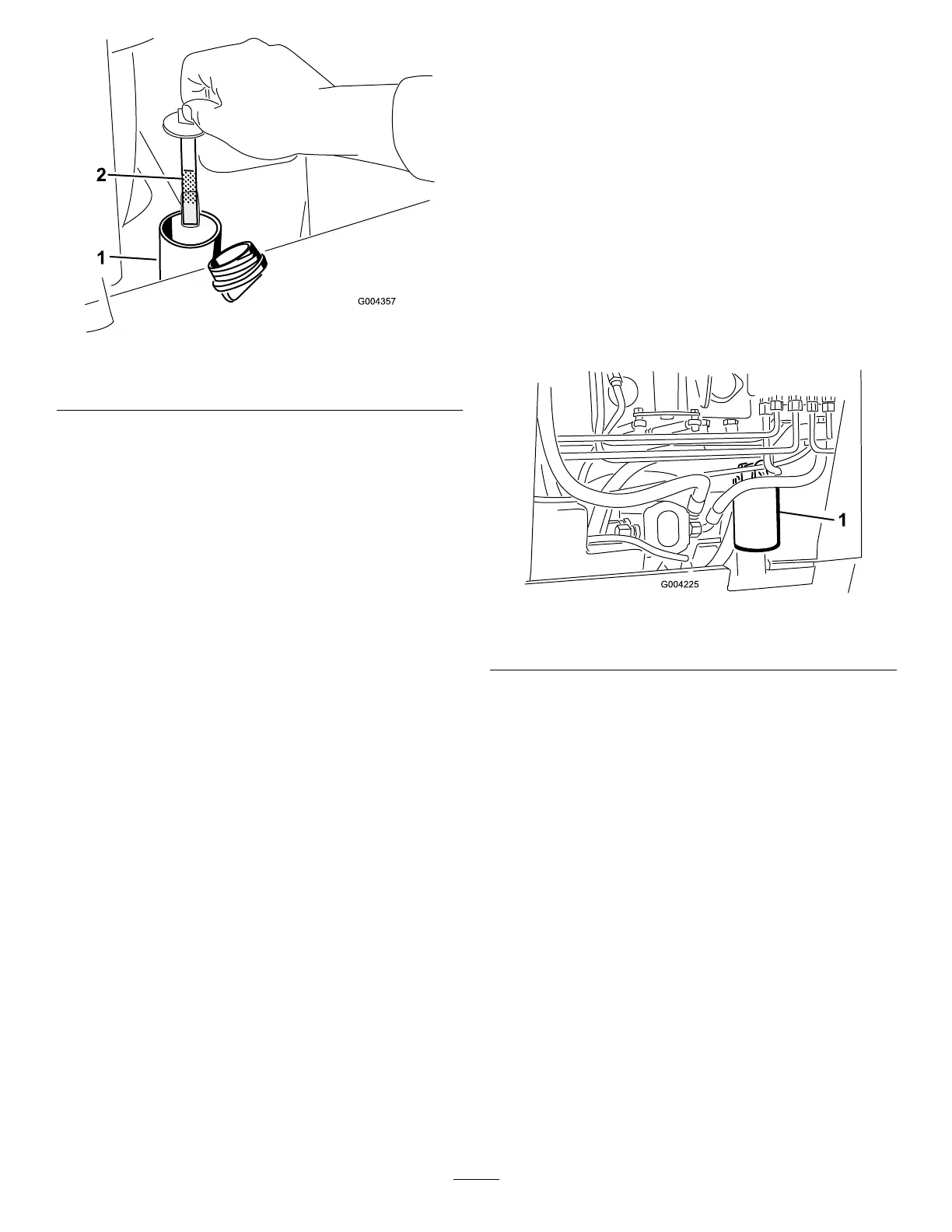

g004357
Figure60
1.Fillerneck2.Dipstick
7.Ifthelevelislow,addenoughuidtoraiseitto
theproperlevel.
8.Installtheller-neckcap.
9.Closethehood.
ReplacingtheHydraulic
Filter
ServiceInterval:Aftertherst8hours
Every200hours
Important:Donotsubstituteanautomotiveoil
lter;otherwise,severehydraulicsystemdamage
mayresult.
1.Parkthemachineonalevelsurface,engagethe
parkingbrake,andlowertheloaderarms.
2.Shutofftheengineandremovethekey.
3.Opentherearaccesscover.
4.Placeadrainpanunderthelter(Figure61).
g004225
Figure61
1.Hydrauliclter
5.Removetheoldlter(Figure61)andwipethe
surfaceofthelteradaptergasketclean.
6.Applyathincoathydraulicuidtotherubber
gasketonthereplacementlter.
7.Installthereplacementhydrauliclterontothe
lteradapter(Figure61).Tightenitclockwise
untiltherubbergasketcontactsthelteradapter,
thentightenthelteranadditional3/4turn.
8.Cleanupanyspilleduid.
9.Starttheengineandletitrunforabout2minutes
topurgeairfromthesystem.
10.Shutofftheengine,removethekey,andcheck
forleaks.
11.Checktheuidlevelinthehydraulictank
andadduidtoraisetheleveltothemarkon
dipstick;refertoCheckingtheHydraulic-Fluid
Level(page43).
Important:Donotoverllthetank.
12.Closetherear-accesscover.
44
