Torqeedo Deep Blue User Manual

Equipment and controls
DE EN
page 7 / 117
2 Equipment and controls
2.1 Overview of controls and components
Overview of controls
1
2
3
4

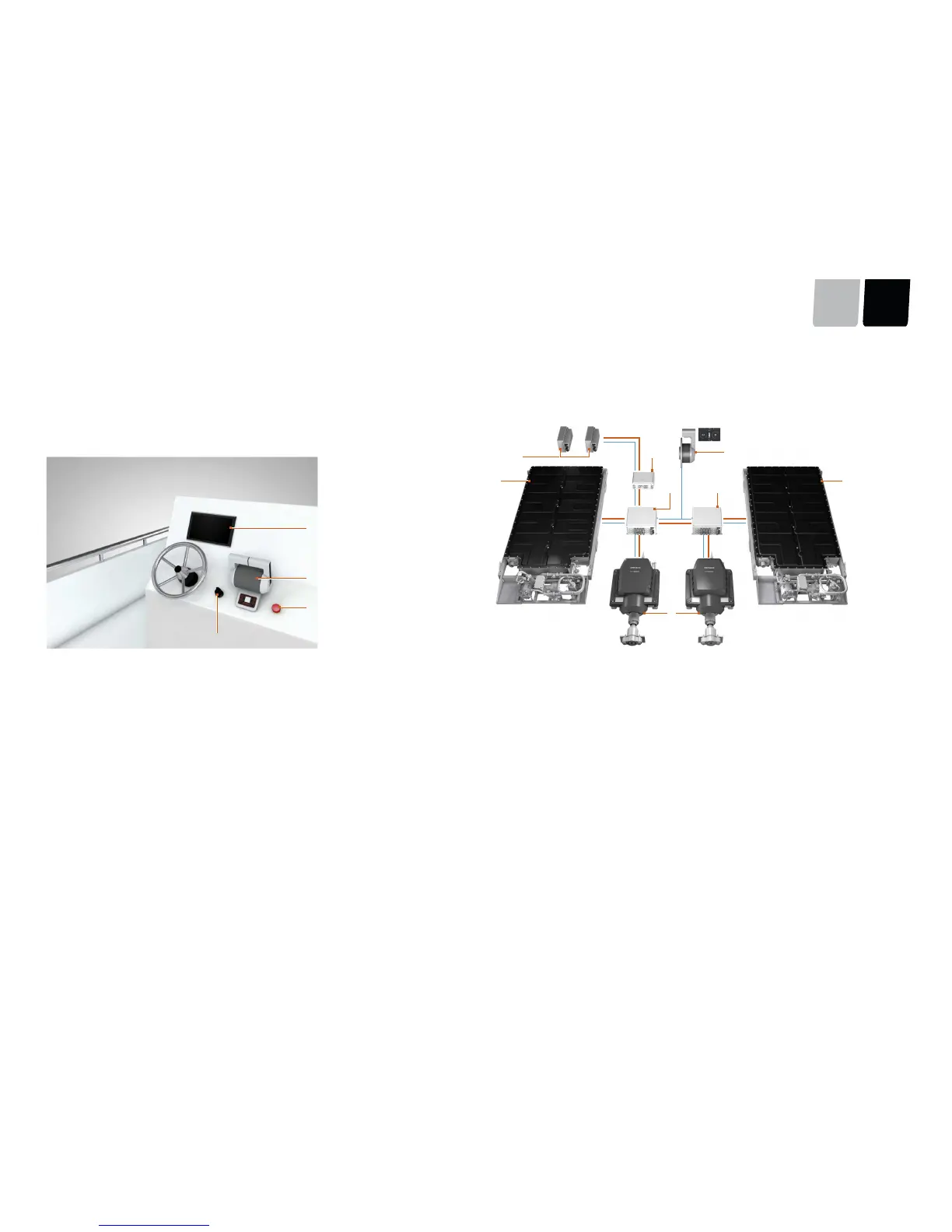

Fig. 1: Controls
1
System display, touchscreen
2
Electronic accelerator lever
3
Emergency Stop Switch
4
Key switch with key
Overview of components
1
2
55
6
4
33
Fig. 2: Components for Deep Blue 40i/80i
1
System control
2
Shore Power Distribution
3
System management unit for system integration and connection of the DEEP
BLUE components
4
Inboard with electric motor and power electronics
5
High-voltage battery for energy supply to the motor, with connection for the
venting system
6
One or more charger units for charging the DEEP BLUE system from an AC pow-
er supply while in port
