Toshiba 32L1400U User Guide

24
Connecting Your TV
Connecting a VCR, antenna, cable TV, or camcorder
HDMI
®
cables provide the best audio and picture quality.
Optical audio cable
(Sample Illustration) Optical audio cable
Optical audio cable connect receivers with Dolby
®
Digital or PCM
(pulse-code modulation) optical audio input to the TV’s Digital
Audio Out terminal, see “Connecting a digital audio system” on
page 31.
About the connection illustrations
You can connect different types and brands of devices to your TV in
several different congurations. The connection illustrations in this
manual are representative of typical device connections only. The
input/output terminals on your devices may differ from those
illustrated herein. For details on connecting and using your specic
devices, refer to each device’s User’s Guide.
Connecting a VCR, antenna, cable TV, or camcorder
Camcorder
TV back panel
From cable TV
From cable TV
or antenna
Cable box
Stereo VCR
IN
OUT
CH 3
CH 4
IN
from
ANT
VIDEO AUDIO
OUT
to
TV
L R
R
L
OUT
IN
CH 3
CH 4
VIDEO
AUDIO
OUT
L
R
TV back panel

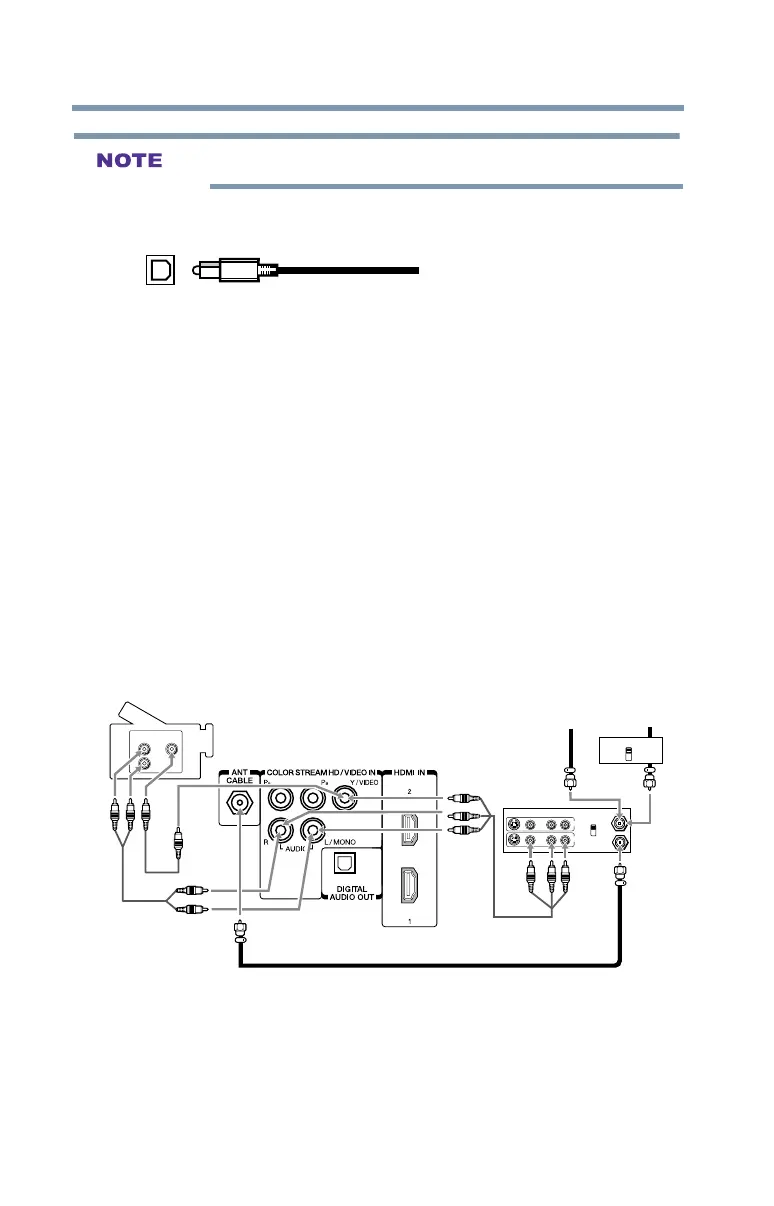

(Sample Illustration) 32/40/50L1400U—Connecting to a VCR,
antenna, or cable TV, or camcorder
Items needed:
v Coaxial cables
v Standard AV cables
If you have a mono VCR, connect L/MONO on the TV to your
VCR’s audio out terminal using the white audio cable only.
v Standard audio cable

Toshiba 32L1400U Specifications

General

Screen Size	32 inches
Display Type	LED
Display Technology	LED
Resolution	1366 x 768
Refresh Rate	60 Hz
HDMI Ports	2
USB Ports	1
Aspect Ratio	16:9
Built-in Wi-Fi	No
Smart TV	No
