Connecting Your TV
Connecting a Blu-rayTM / DVD player, satellite receiver with ColorStreamTM or VCR
Connecting a Blu-ray
TM
/ DVD player, satellite receiver with
ColorStream
TM
or VCR
IN from ANT
VIDEO AUDIO
OUT to TV
L R
R
L
OUT
IN
CH 3
CH 4
S-VIDEO
OUT
VIDEO
OUT
AUDIO
OUT
COMPONENT VIDEO
L
R
Satellite
IN
P
B
P R
Y
From antenna
Stereo VCR
TV back panel
From
satellite dish
Satellite receiver, Blu-ray or DVD player
TM

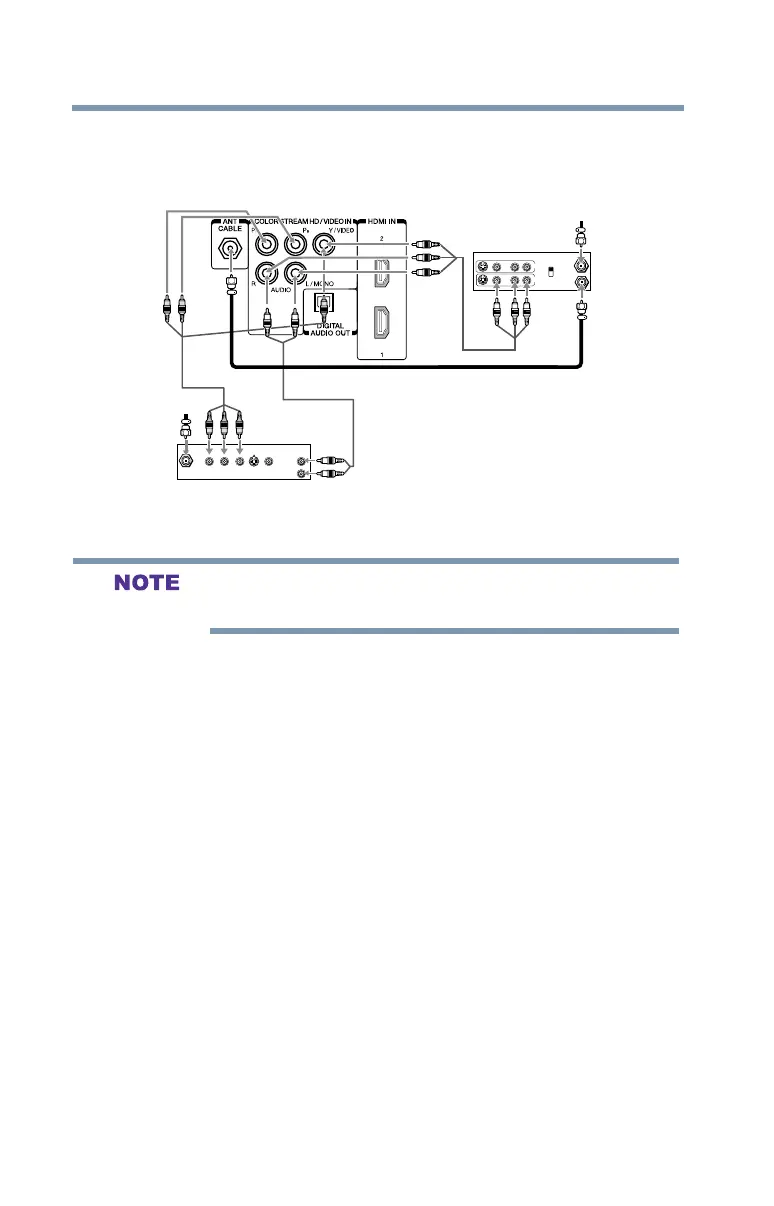

(Sample Illustration) 32/40/50L1400U—Connecting a Blu-ray™ /
DVD player or Satellite receiver with ColorStream
TM
(or VCR).
ColorStream
TM
and composite video cables cannot be connected
simultaneously.
Items needed:
v Coaxial cables
v Standard AV cables
If you have a mono VCR, connect L/MONO on the TV to your
VCR’s audio out terminal using the white audio cable only.
v Standard audio cables
v Component video cables
v You can connect the component video cables (plus audio
cables) from the DVD player or satellite receiver to the
COLOR STREAM HD terminal in the TV. The COLOR
STREAM HD terminal can be used to display Progressive
(480p, 720p) and Interlaced (480i, 1080i) scan systems.
Please note that 1080p is not supported. Check the User’s
Guide of the DVD player in order to determine the best
output signal available.
v If your DVD player or satellite receiver does not have
component video, connect a standard A/V cable to the
AUDIO/VIDEO terminal. If your DVD player has HDMI
®
video, see “Connecting an HDMI® or DVI device to the
HDMI® input” on page 27
Connecting a Blu-ray
TM
/ DVD player, satellite receiver with ColorStream
TM
or VCR
