Toshiba 40RV52R Service Material And Reference Tips

Is
5 VDC present
at pins 10, 11, and 12 of
P802 on the power supply
when AC is
applied?
Does
a 4.0 volt on off
signal appear at pin
13 of P802 when the
on/off button is
pressed?
Yes
Suspect a problem with
the standby 5 volt supply
on the power supply
module.
No
Is the
Power Good
(AC Detect) level
less than .07V at pin
14 of P802
when AC is
applied?
Yes No
Suspect a problem with
the power supply module.
Does
the secondary
12 volt source appear
at pin 8 of P802 when
the on/off button is
pressed?
No
No
Suspect a problem
with the SYSCON
circuit located on the
Main module.
Yes

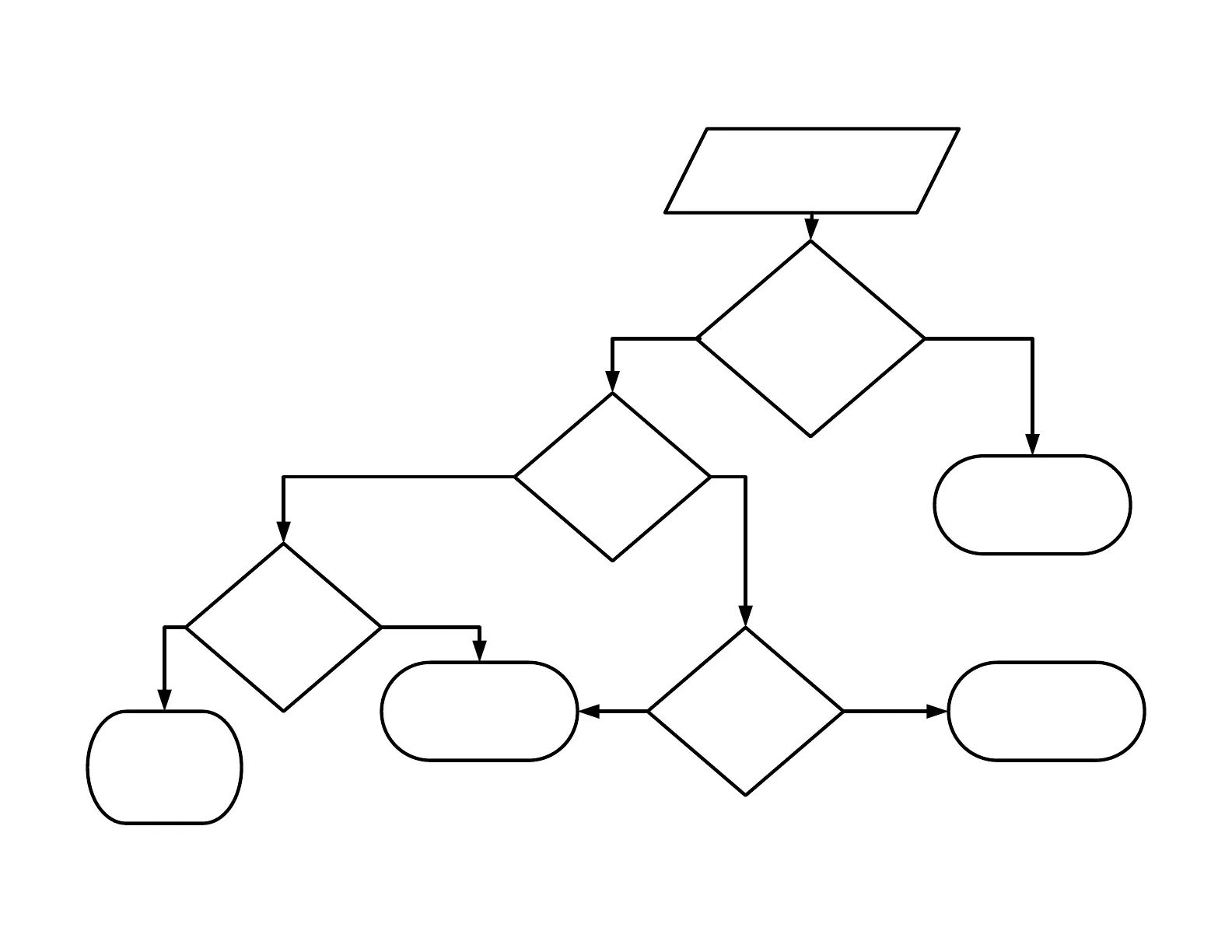

32RV525RZ, 37RV52R, 37RV52RZ,
37RV525RZ, 40RV52R, 40RV52RZ,
40RV525R, 40RV525RZ, 46RV525R,
46RV525RZ – Dead Set
Yes
Suspect a
problem with the
Main module.
Dead Set
(No Sound and
No Picture or No LED)
SMART2009-LCD209-V9 Page 4 of 10

Toshiba 40RV52R Specifications

General

Brand	Toshiba
Model	40RV52R
Category	LCD TV
Language	English
