Introduction
TV back panel controls and connections
5 IR Blaster OUT—Used to connect and control infrared
remote-controlled devices.
6 Digital Audio Jack—Optical audio output in Dolby
®
Digital
or PCM (pulse-code modulation) format for connecting an
external Dolby
®
Digital decoder, amplifier, A/V receiver, or
home theater system with optical audio input.
7 Analog Audio Port—Analog audio outputs for connecting an
audio amplifier.
8 3 HDMI Ports—High-Definition Multimedia Interface input
receives digital audio and uncompressed digital video from an
HDMI
®
device or uncompressed digital video from a DVI
device. HDMI
®
connection is necessary to receive 1080p
signals.
TV back panel controls and connections
For explanations of cable types and connections, see “Connecting
Your TV” on page 27.

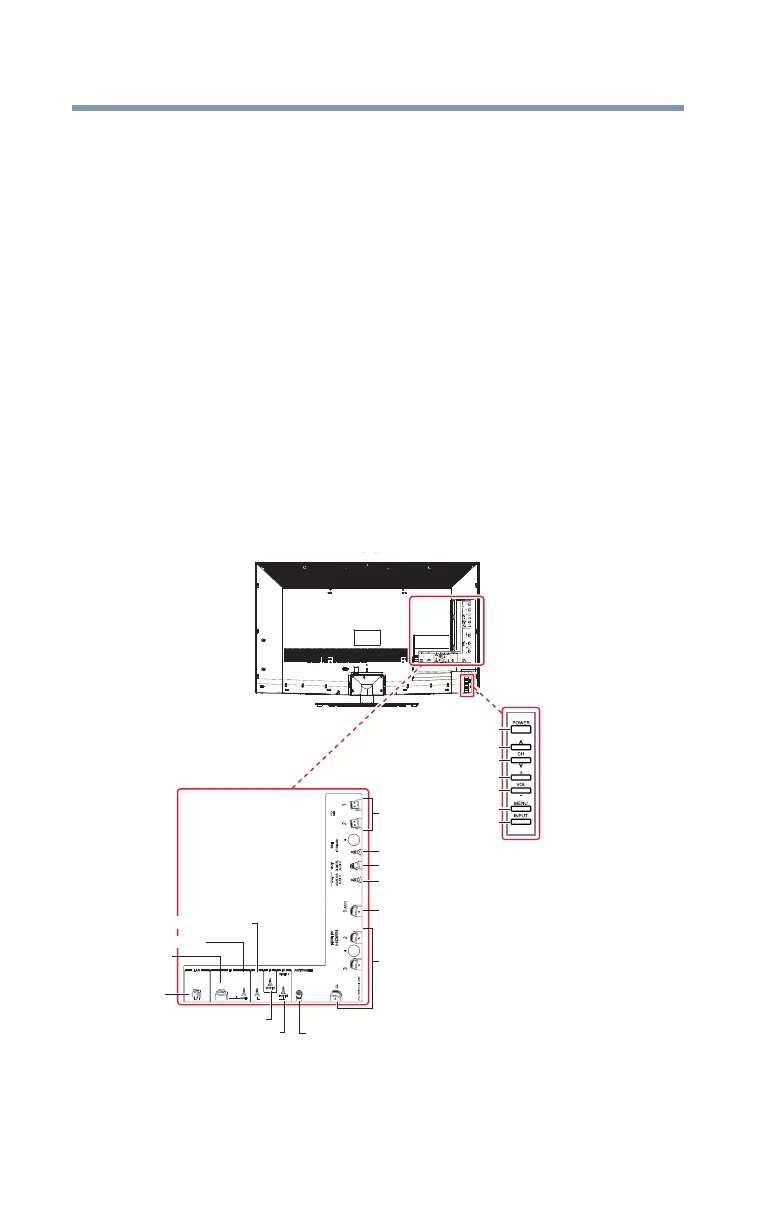

(Sample Illustration) L6200U/L7200U Series back panel controls
and connections
Back
HDMI 4HDMI 4
HDMI 3HDMI 3
PC / COLOR STREAM HD 2PC / COLOR STREAM HD 2
COLOR COLOR
STREAM STREAM
HD 1HD 1
VIDEO 2VIDEO 2
ColorStream
®
HD
Analog Audio OUT
Digital Audio OUT
IR Blaster OUT
Antenna/Cable
Video 1 IN
Video 2 IN
USB ports
HDMI
®
IN ports
PC/HDMI
®
IN
PC IN
LAN
ARC HDMI
®
only port
Menu button
Input button
Power button
Volume Up
Volume Down
Channel Up
Channel Down
