Connecting Your TV
Connecting an HDMI® or DVI device to the HDMI® input
uncompressed digital video from a DVI (Digital Visual Interface)
source device.
This input is designed to accept HDCP (High- Bandwidth
Digital-Content Protection) program material in digital form from
EIA/CEA-861-D– compliant[1] consumer electronic devices (such
as a set-top box or DVD player with HDMI
®
or DVI output).
The HDMI
®
input can accept and display VGA, SVGA, XGA,
WXGA, SXGA, 480i (60Hz), 480p (60Hz), 720p (60Hz), 1080i
(60Hz), and 1080p (24Hz/60Hz) signal formats. For detailed signal
specifications, see “HDMI® signal formats” on page 196.
The supported Audio formats are Linear PCM and Dolby
®
Digital,
sampling rate 32/44.1/ 48 kHz.
To connect a PC to the HDMI
®
input, see “Connect a computer to the
TV’s HDMI® terminal” on page 41.
To connect an HDMI
®
device, you will need one HDMI
®
cable
(type A connector) per HDMI
®
device:
❖ For proper operation, it is recommended that you use an
HDMI
®
cable with the HDMI
®
Logo ( ).
❖ To display an 1080ip/60Hz signal format, you will need a High
Speed HDMI
®
cable. A conventional HDMI
®
/DVI cable may
not work properly.
❖ HDMI
®
cables transfer both video and audio. Separate analog
audio cables are not required (see illustration).

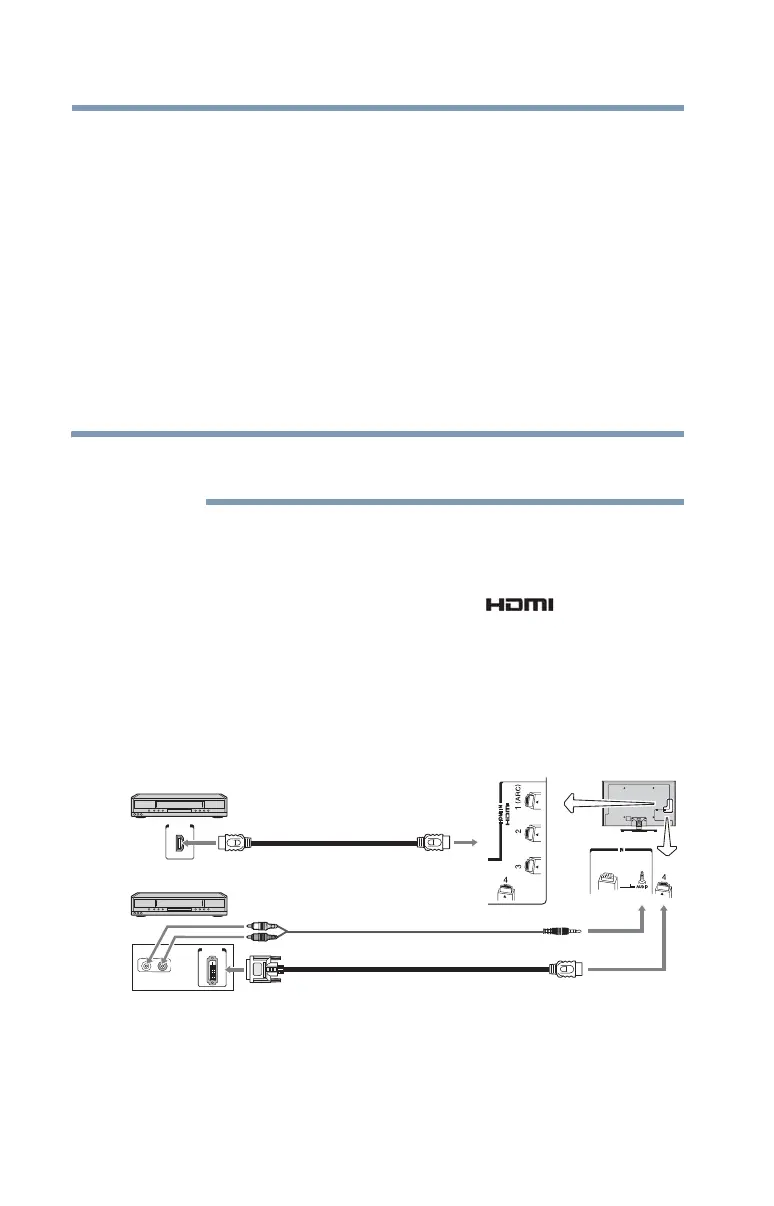

(Sample Illustration) L6200U/L7200U Series—Connecting an
HDMI
®
or DVI device to the HDMI
®
Input
To view the HDMI
®
device video:
Select HDMI 1, HDMI 2, HDMI 3 or HDMI 4 video input source
on the TV. (Press the INPUT button on the remote control. For
NOTE
TV back panel
HDMI OUT
DVI/HDCP
OUT
AUDIO
R
L
OUT
HDMI device
DVI device
HDMI cable
Analog audio cable
HDMI-to-DVI adapter cable
HDMI 4HDMI 4
PC / COLOR STREAM HD 2PC / COLOR STREAM HD 2

Toshiba 42L6200U Specifications

General

Comb filter	2D/3D
Display diagonal	42 \
Native aspect ratio	16:9
LED backlighting type	-
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	Yes
3D type	Passive
3D glasses quantity	4
Product color	Black
Panel mounting interface	400 x 400 mm
RMS rated power	20 W
Number of speakers	2
DVI port	No
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Cables included	AC, AV
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Depth (with stand)	214 mm
Height (with stand)	631 mm
Weight (with stand)	13400 g
Depth (without stand)	42 mm
Width (without stand)	955 mm
Height (without stand)	580 mm
Weight (without stand)	12000 g
