Toshiba 42L7463D - EXPLODED VIEW

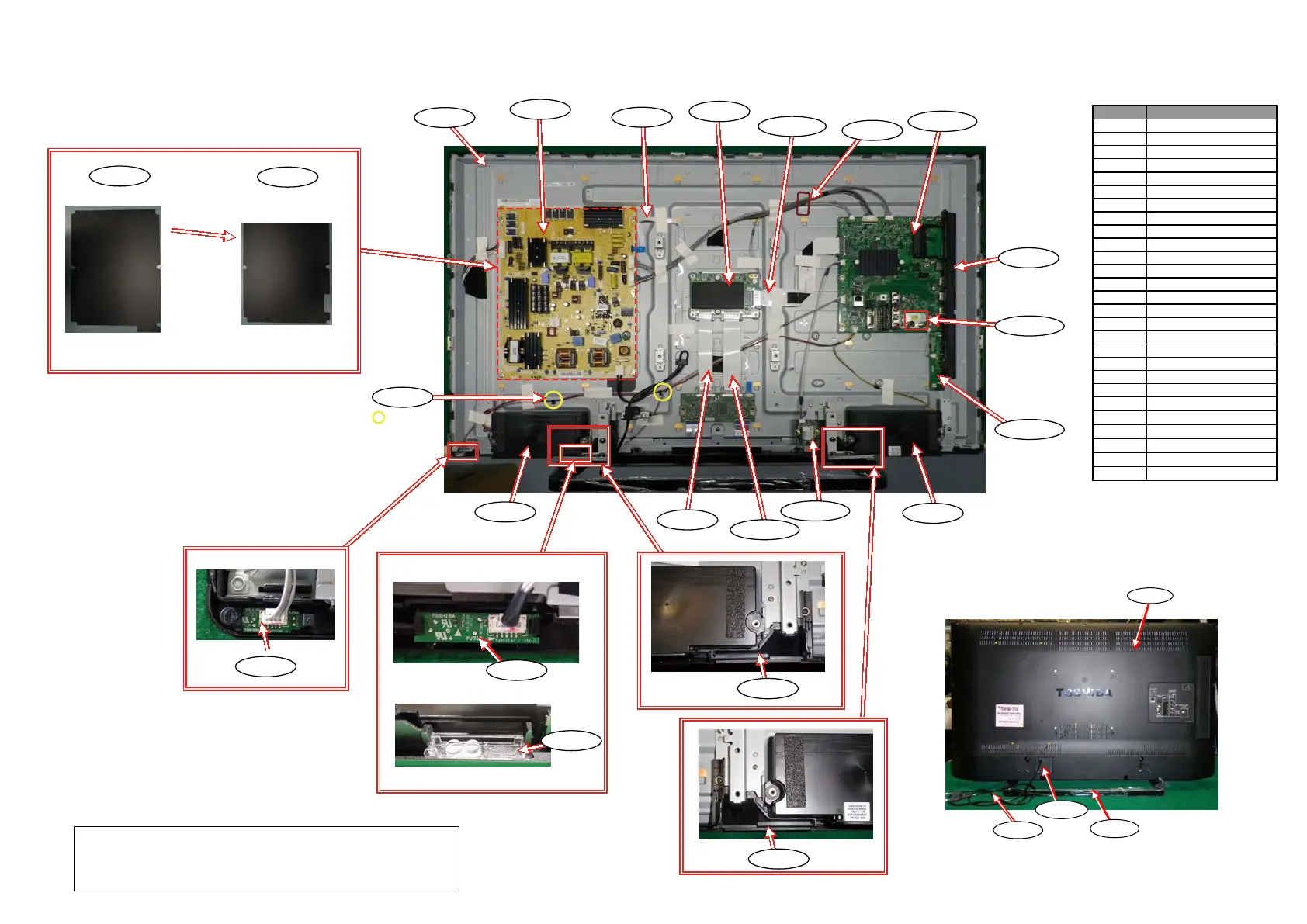

EXPLODED VIEW
42L7453D/7463D series
Location Description
A201 PIECE C R ASSY
A202 PIECE C L ASSY
A204 PIECE LENS RMT
A301 KEY PLATE ASSY
A302 PIECE CORD POW
A401S COVER ASSY, UNIT
A423S STAND ASSY
B001 S-Fit LCD Panel
E01 SHEET INSULATOR
E02 SHEET INSULATOR
H7501 TUNER
MZ01 CABLE, FFC
MZ02 CABLE, FFC
MZ03 CABLE, FFC
MZ04 CABLE, FFC
P801x POWER CORD
PP11 CLAMP
PP21 CLAMP
U01A PC BOARD ASSY, MAIN
U02A PC BOARD ASSY, FRC
U03A PCB LED UNIT
U04A PCB RMT UNIT
U05A PC BOARD ASSY, KEY
U800 POWER UNIT
U802 MODULE, WLAN
W661 SPEAKER
W662 SPEAKER
Note:
These photographs are samples.
These photographs differ from the mass-production product.
A401S
P801x
A423S
A302
B001
E01
E02
A301
MZ04
W 661
A202
PP21
U01A
U800
W 662
U05A
H7501
MZ02
U802
MZ03
PP11
(Under U800)
(Under E01)
A201
MZ01
U02A
mark
(2
places)
U04A is removed.
U04A
A204
U03A
A201 is removed.
