31
Connecting your TV
• This TV is able to connect with HDMI devices.
But it is possible that some HDMI devices may
not operate properly with this TV.
Connecting an HDMI or a DVI device
The HDMI input on your TV receives digital audio
and uncompressed digital video from an HDMI
device and uncompressed digital video from a
DVI device.
This input is designed to accept HDCP
programme material in digital from CEA-861-D
compliant consumer electronic devices (such as
a set top box and DVD player with HDMI and DVI
output).
The HDMI input is designed for best performance
with 1080i (50 Hz/60 Hz) and 1080p (24/50/60
Hz) high-defi nition video signals, but will also
accept and display 480i, 480p, 576i, 576p, and
720p (50Hz/60 Hz (60 Hz: except for E-EDID))
and VGA (VESA 640 × 480 @ 60/72/75 Hz)
signals.
• HDMI: High-Defi nition Multimedia Interface
• DVI: Digital Video Interface
• HDCP: High-bandwidth Digital Content
Protection
• CEA-861-D compliance covers the
transmission of uncompressed digital video
with high-bandwidth digital content protection,
which is being standardized for reception of
high-defi nition video signals. Because this is
an evolving technology, it is possible that some
devices may not operate properly with the TV.
• E-EDID: Enhanced-Extended Display
Identifi cation
• Acceptable PC signal format:
S-VGA: VESA 800 5 600 @ 56/60/72/75 Hz
XGA: VESA 1024 5 768 @ 60/70/75 Hz
W-XGA: VESA 1280 5 768 @ 60/75 Hz
W-XGA: VESA 1360 5 768 @ 60 Hz
S-XGA: VESA 1280 5 1024 @ 60/75 Hz
However, these signal formats are converted to
match the number of pixels of the LCD panel.
Therefore, the TV may not display small text
properly.
If you connect this unit to your PC, the
compressed image is displayed in S-XGA mode,
therefore the picture quality may deteriorate and
characters may not be read.
• L-PCM: Linear-Pulse Code Modulation

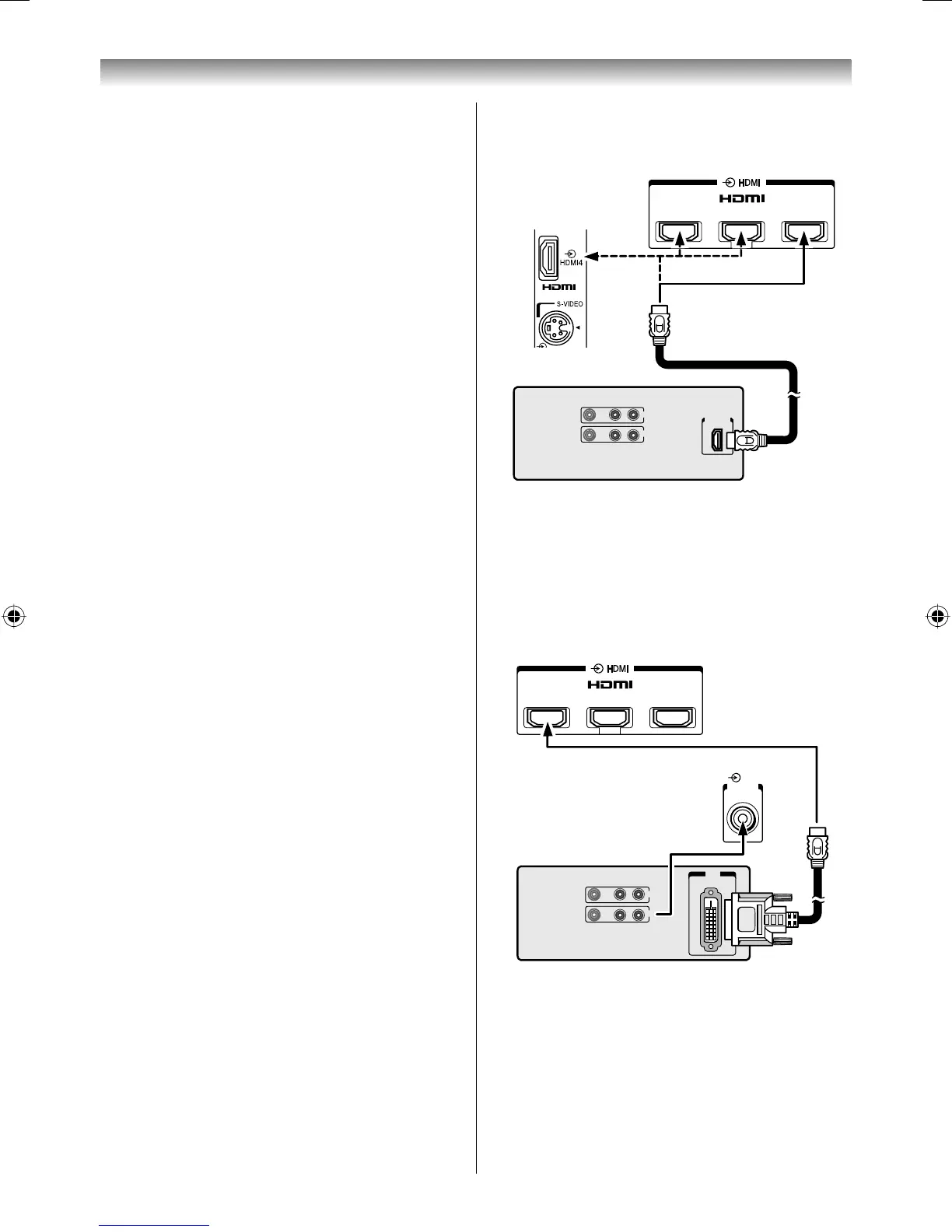

Connecting an HDMI device
One HDMI cable (type A connector)
VIDEO AUDIO
LR
IN
OUT
HDMI OUT
1 23
TV back view
TV right side view
HDMI device
For proper operation, it is recommended that you
use a short HDMI cable.
HDMI cable transfers both video and audio.
Connecting a DVI device
One HDMI (type A connector)-to-DVI adapter
cable and audio cables
VIDEO AUDIO
LR
IN
OUT
DVI
OUT
PC/
HDMI 1
(
AUDIO
)
1 23
DVI device
TV back view
TV back view
HDMI (type A connector)-to-DVI adapter cable
For proper operation, the length of an HDMI-to-
DVI adapter cable should not exceed 3m. The
recommended length is 2m.
Standard analogue audio cables
An HDMI-to-DVI adapter cable transfers only
video. Separate analogue audio cables are
required.
324246RV600ETY_En.indd 31324246RV600ETY_En.indd 31 7/28/2009 10:08:18 AM7/28/2009 10:08:18 AM
