33

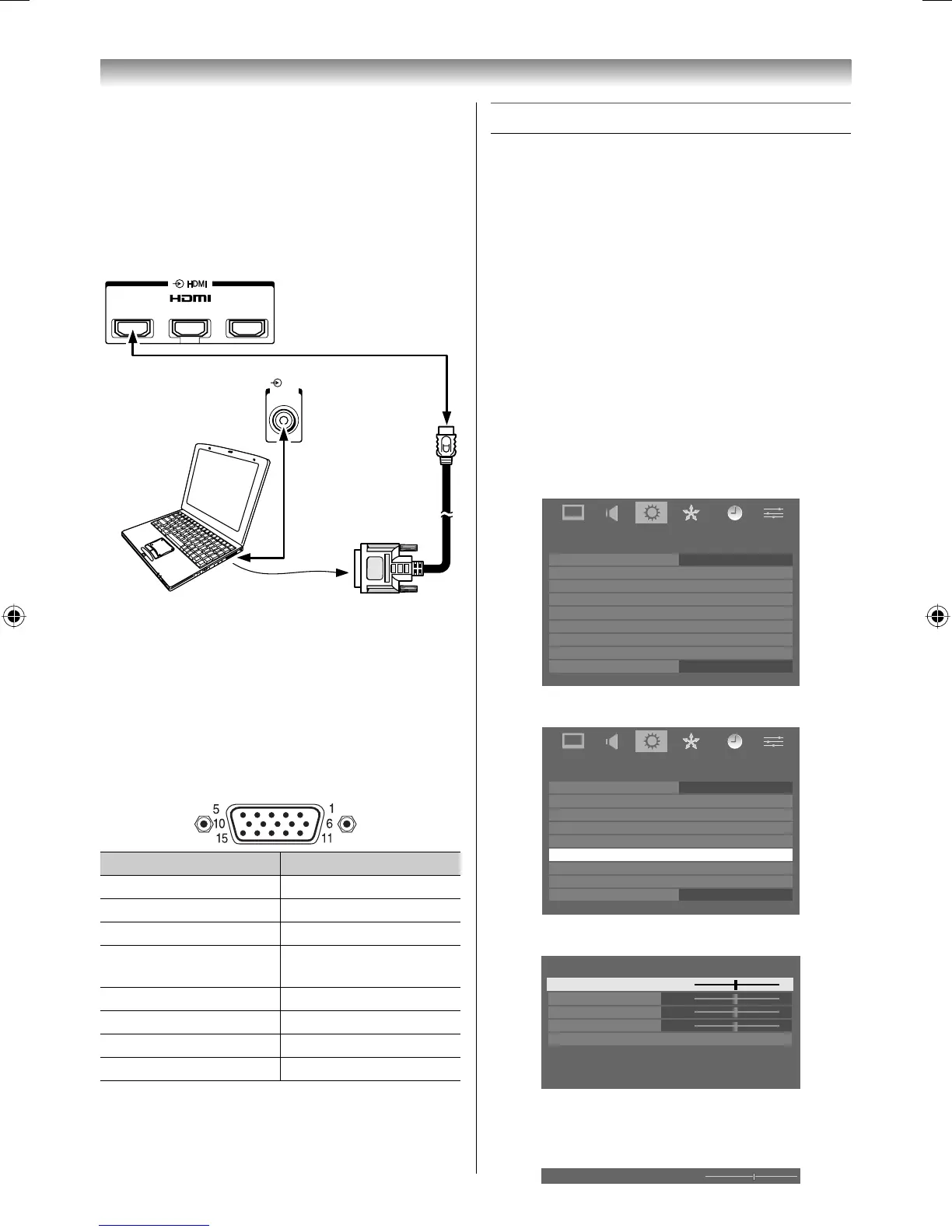

Connecting your TV
To connect a PC to the HDMI terminal on the
TV:
When connecting a PC to the HDMI terminal on
the TV, use an HDMI-to DVI adapter cable and
analogue audio cables.
If connecting a PC with an HDMI terminal, use
an HDMI cable (type A connector). Separate
analogue audio cables are not necessary.
PC/
HDMI 1
(
AUDIO
)
1 23
TV back view
TV back view
Computer
Audio cable
for PC-to-TV
connection
For acceptable PC signal format, see page 31.
Notes:
• The edges of the images may be hidden.
• If connecting a certain PC model that signal is
particular, the PC signal may not be detected
correctly.
Signal names for mini D-sub 15 pin connector
Pin assignment for RGB/PC terminal
Pin No. Signal name Pin No. Signal name
1R 9NC
2 G 10 Ground
3 B 11 NC
4 NC (not
connected)
12 NC
5 NC 13 H-sync
6 Ground 14 V-sync
7 Ground 15 NC
8 Ground
Using the PC setting
• Most of the picture controls and functions are
available. However features not available will be
greyed out.
• In the PC input mode, the Manual setting
(- page 24) is not displayed.
• First press L until the video input mode list
appears on the screen, then press V or U and
Q in order to select the PC input mode
(- page 24).
• This function may not be available for some
signal or if no signal is received.
• The optimum points of the clock phase
and sampling clock adjustments may be
incomprehensible according to the input signals.
Adjusting the picture position
1 Press MENU, then press Y or Z to display
the SET UP menu.
SET UP
Language
Auto tuning
Manual tuning
Manual setting
AV connection
PC Setting
Picture position
Quick Setup
Location
English
Home
2 Press V or U to select PC Setting.
SET UP
Language
Auto tuning
Manual tuning
Manual setting
AV connection
PC Setting
Picture position
Quick Setup
Location
English
Home
3 Press Q to display the PC Setting menu.
PC Setting
Horizontal position
Vertical position
Clock phase
Sampling clock
Reset
0
0
0
0
4 Press V or U to select an option you want to
adjust. Press Y or Z to adjust the settings as
required.
Horizontal position
0
