Toshiba BMS-TP0641ACE Installation Manual

2

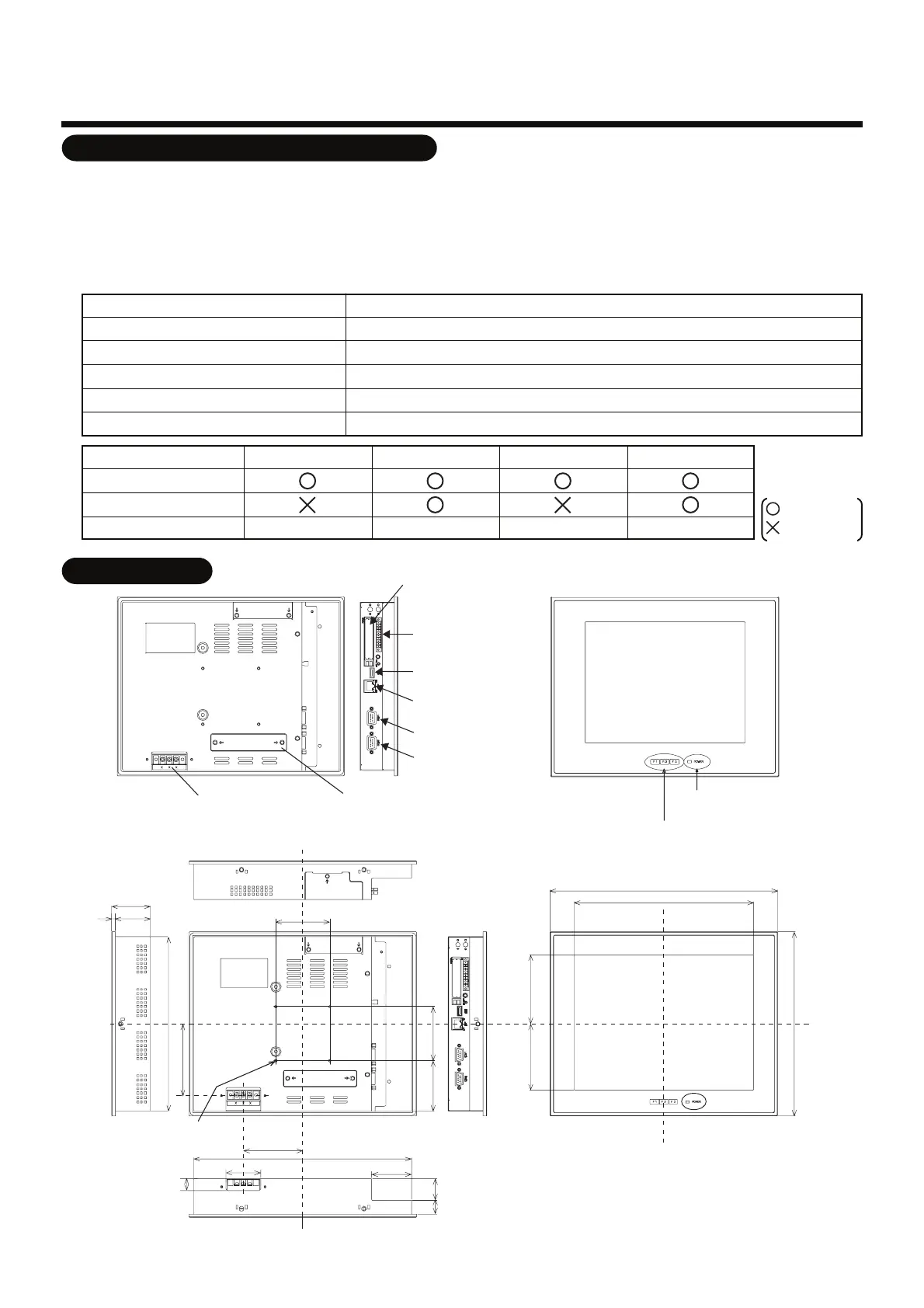

Introduction
Applications/Functions/Specifications
•
Applications/Functions
The Touch Screen Controller is equipped with the LCD display and the touch panel and has various
functions such as operation control, operation status monitoring, scheduled operation, and error code
display of up to 64 or 512 indoor units.
•
Specifications
Power supply
Power consumption
Operating temperature/humidity
Storage temperature
Dimensions
Mass
100 - 240 VAC, 50/60Hz
50VA
0°C to 50°C, 20% to 85% RH (no condensation)
-10°C to +60°C
256 (H) × 316 (W) × 54 (D) mm
3.5kg
Air conditioning control
Power distribution
Indoor units connected
BMS-TP0641ACE BMS-TP0641PWE BMS-TP5121ACE BMS-TP5121PWE
Max. 64 units Max. 64 units Max. 512 units Max. 512 units
External View
249
95.7591.75
256
19 30
16
54
549
242
99.3
75
82.5
302
55.5
48
70 75
316
Function switch (F1, F2, F3)
PCI expansion unit
connector cover
Power input
terminal block
Ethernet
USB
CF (Compact Flash)
card slot (CF card for
data files)
POWER LED
M4 Tap (×4 pcs.)
(depth: 10 mm max.)
Input/Output port
unit: mm
COM1(RS-232C)
COM2(RS-485)
: available
: Not available
