4

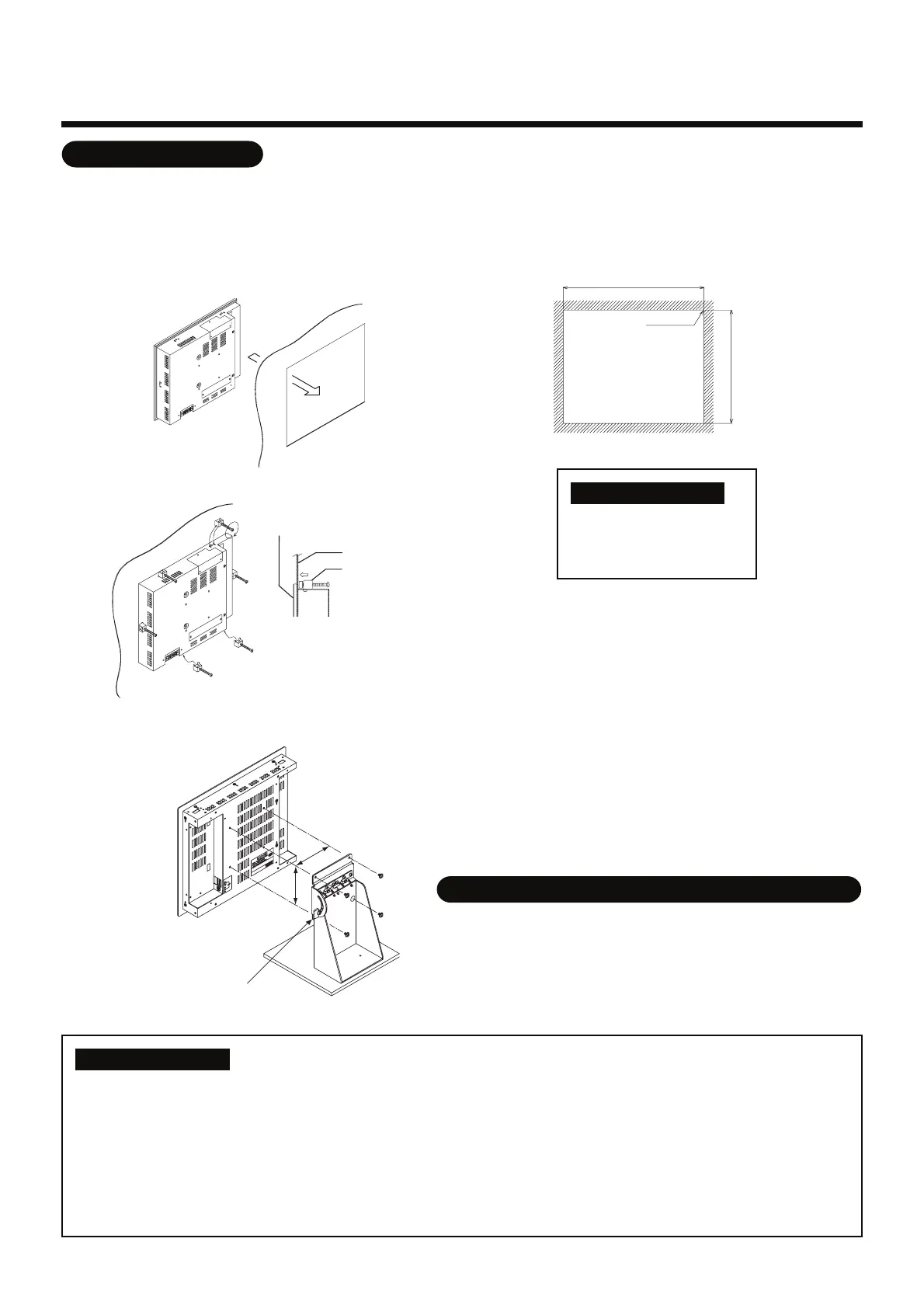

Installation Method
Two installation methods are provided. One is the panel mount with the fixture. The other is the desk top
installation using the CONTEC stand (procured on site).
(1) Panel Mount
How to install the fixture
1. Insert the controller from outside of the panel.
2. Insert the fixtures from inside of the panel.
Tightening screws excessively
may cause the screws to break.
Optimum tightening torque for
good waterproofing effect is
0.6N/m.
Panel
Touch Screen
Controller
Fixture
Panel cut size
303
+1
-0
243
+1
-0
R1 or less
[mm]
Panel thickness: 1.6 - 7 mm
REQUIREMENT
Use a panel
(procured on site) of
thickness 1.6-7 mm.
(2) Desk Top Installation using the CONTEC stand (procured on site)
For reference
Display stand (not supplied with the controller)
Use the CONTEC stand (model: IPC-SND-03).
For details of the stand, visit the CONTEC web site.
Europe: http://www.contec-europe.com/
China: http://www.contec.sh.cn/
The angle adjustment lock screw.
(Loosen the screw and adjust angle.)
75 mm
75 mm
REQUIREMENT
Do not install the unit in any of the following places.
• Humid or wet place
• Dusty place
• Place exposed to direct sunlight
• Place where there is a TV set or radio within one meter
• Place exposed to rain (outdoors, under eaves, etc.)
To Next Page
