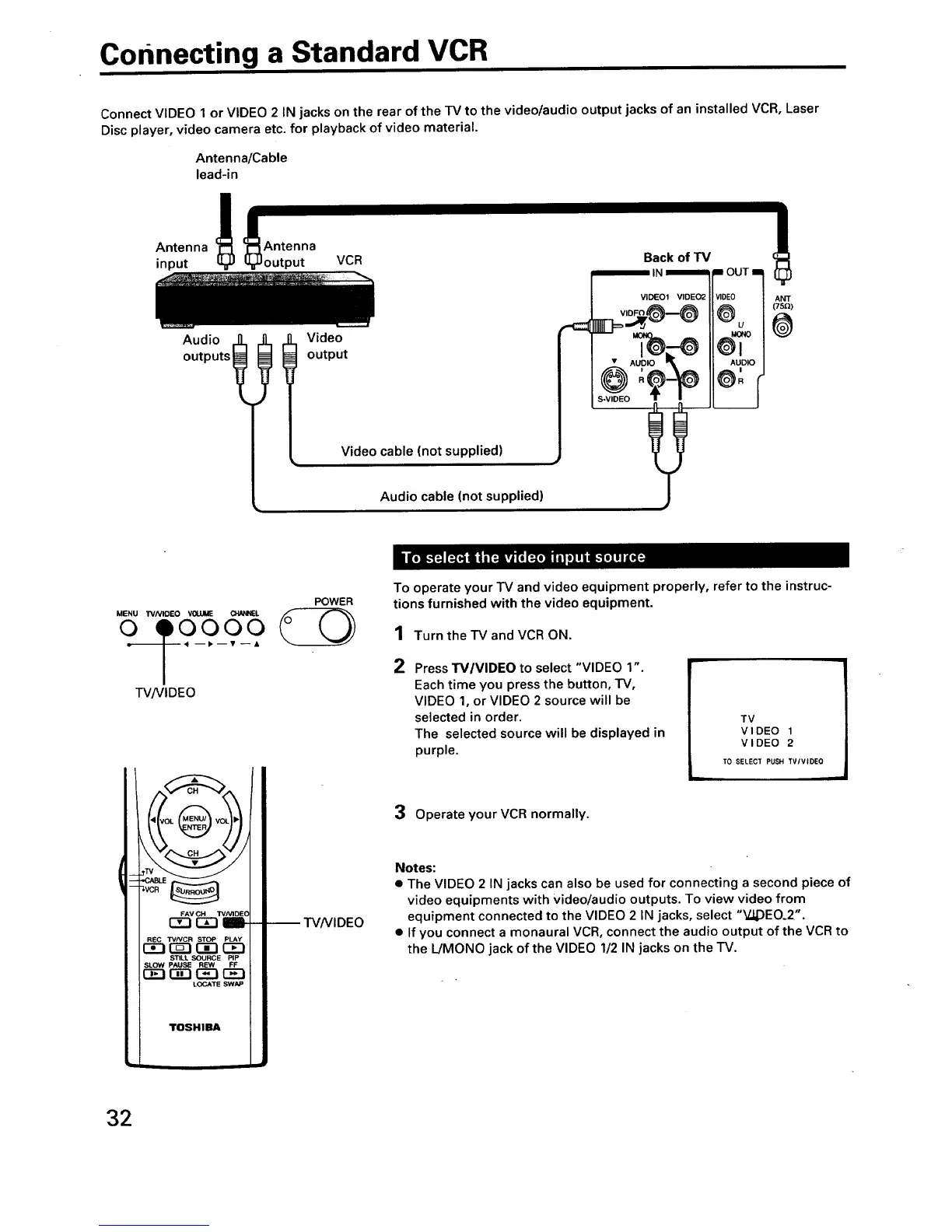

Connecting a Standard VCR
Connect VIDEO 1 or VIDEO 2 IN jacks on the rear of the TV to the video/audio output jacks of an installed VCR, Laser
Disc player, video camera etc. for playback of video material.
Antenna/Cable
lead-in
Antenna
input
Audio
outputs _
Antenna
output
VCR
Video
output
Video cable (not supplied)
Audio cable (not supplied)
Back of TV
----'N----'lr
VIDE01 VIDE02 iiv,[
VlDF(3_ I1_
POWER
To operate your TV and video equipment properly, refer to the instruc-
tions furnished with the video equipment.
2
W/VIDEO
REC WNCR STOP PLAY
C_ r_ (3D r-_
STILL SOURCE PIP
SLOW PAUSE REW FF
Q_ r_ 1253!3_3
TOSHIBA
-- "I-V/VIDEO
Turn the TV and VCR ON.
Press W/VIDEO to select "VIDEO 1". r
Each time you press the button, TV,
[
VIDEO 1, or VIDEO 2 source will be
selected in order.
The selected source will be displayed in
purple.
TV
VIDEO 1
VIDEO 2
TO SELECT PUSH TVIVIDEO
3 Operate your VCR normally.
Notes:
• The VIDEO 2 IN jacks can also be used for connecting a second piece of
video equipments with Video/audio outputs. To view video from
equipment connected to the VIDEO 2 IN jacks, select "V._OEO_2".
• If you connect a monaural VCR, connect the audio output of the VCR to
the L/MONO jack of the VIDEO 1/2 IN jacks on the "IV.
32
