6. Printer-specific Adjustments (GA-1211)
6.1.4 Confirmation of Calibration Result
Explanation

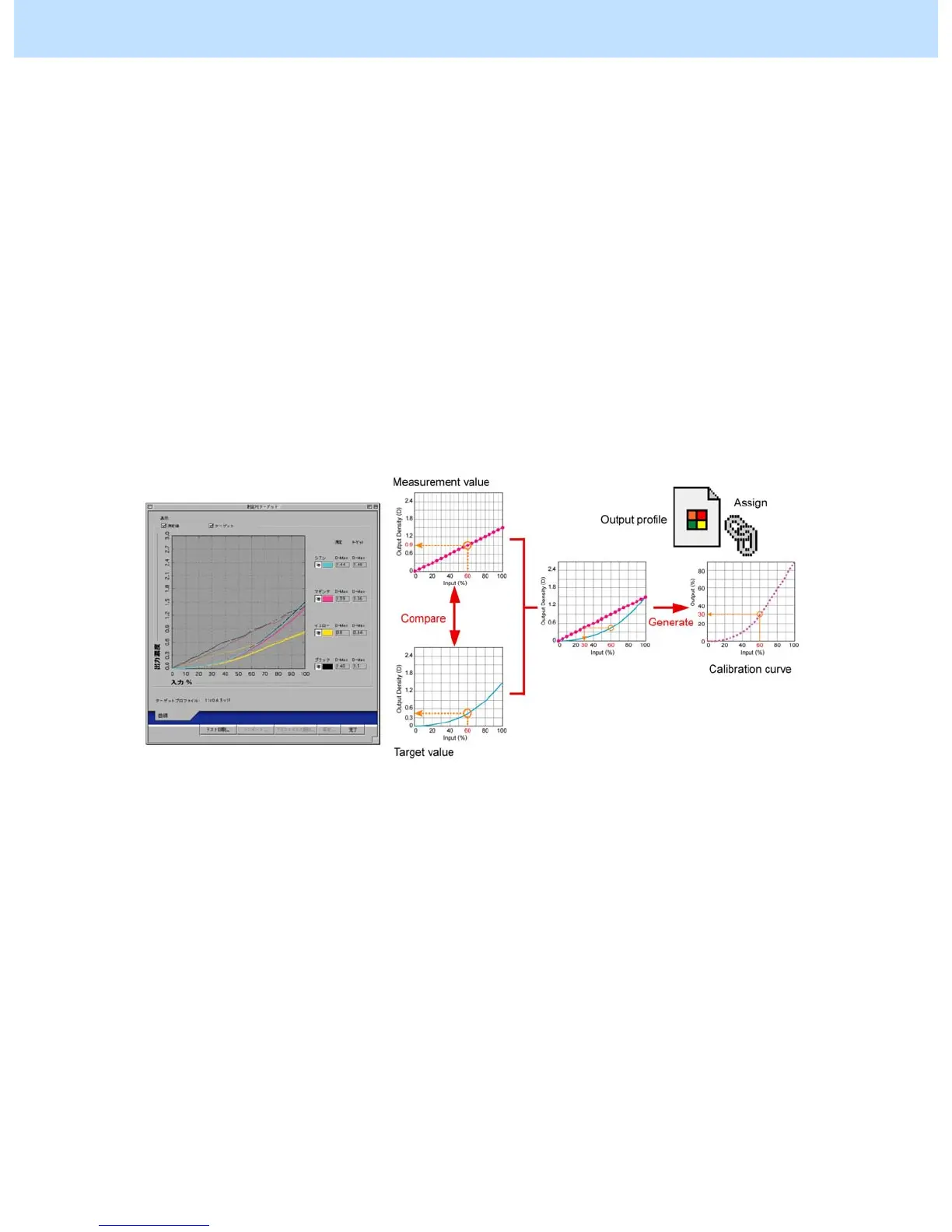

The Measurement vs. Target graph of the View Measurement of Calibrator shows the tone characteristics of the
target image with a bold line and those of the printer engine in the MFP without calibration with a thin line. The
graph indicates how tone characteristics deviate from those of the target image, not the tone characteristics after
calibration.
The Measurement Page printed from Calibrator is a gradation step chart that is printed with the calibration
function off. The tone characteristics of this chart are detected to figure out how they deviate from those of the
target image, and according to the detected result, the GA-1211 corrects the tone characteristics of the printer
engine. In other word, the graph shows the status of the printer engine before correction. Therefore there will not
be any problem if the tone characteristics deviate from those of the target image.
With the GA-1211 you can check the tone characteristics after calibration in the procedure below, using Calibrator
and a measurement device.
