e-STUDIO5540C/6540C/6550C/5560C/6560C/6570C © 2011 - 2015 TOSHIBA TEC CORPORATION All rights reserved
DISASSEMBLY and REPLACEMENT
4 - 162
4.7.23 TRU waste toner motor (M10)
4.7.24 Transfer belt motor (M13)
(1) Take off the 2nd transfer unit.
 P. 4-154"4.7.14 2nd transfer unit (TRU)"
(2) Disconnect 1 connector [1] and remove 1
screw. Then take off the bracket [2].

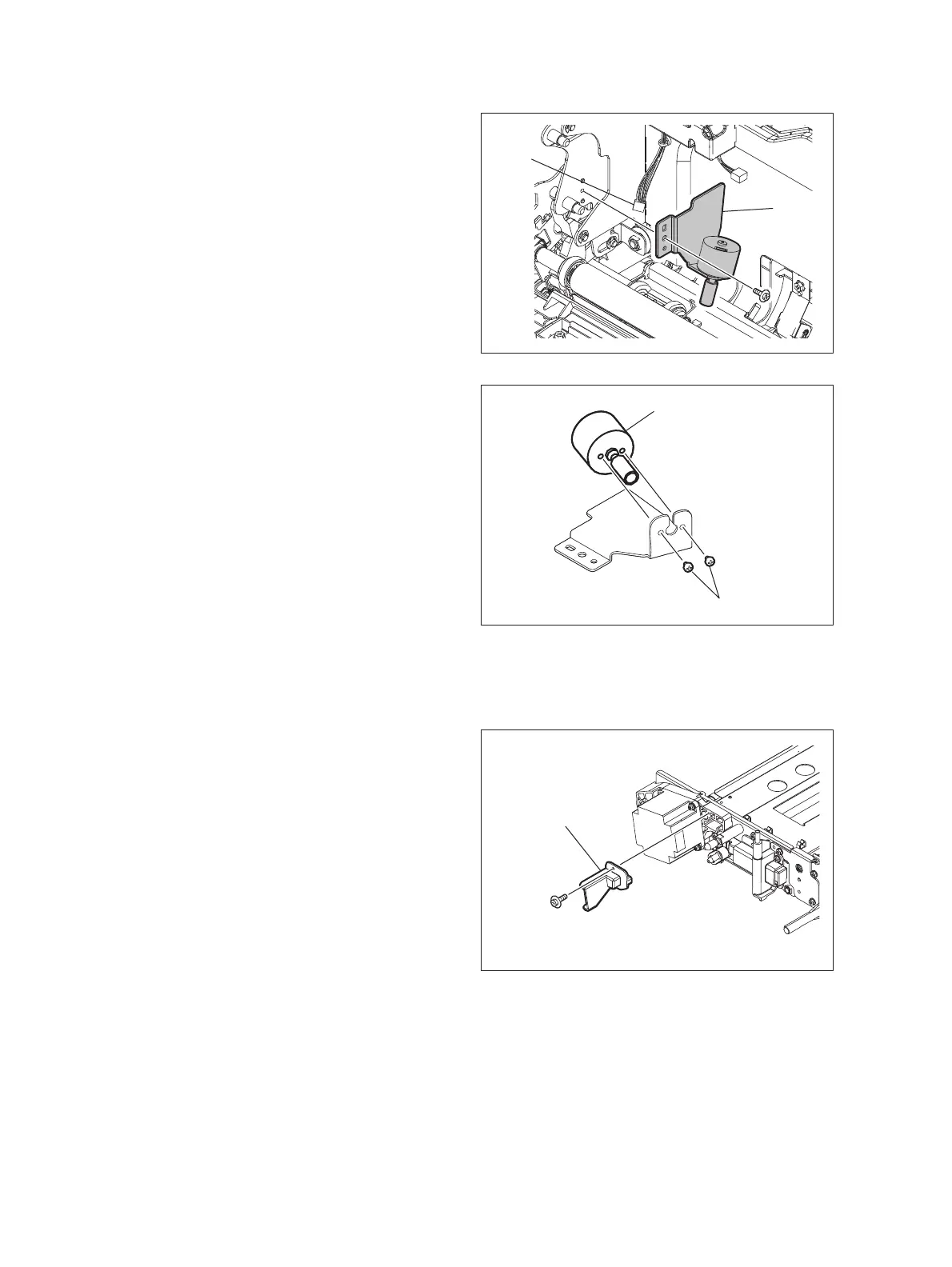

Fig. 4-474
(3) Remove 2 screws and then take off the TRU
waste toner motor.
Notes:
Pay attention to the size (length) of the
screws. If incorrect ones are used, the motor
could be damaged.
Fig. 4-475
(1) Take off the transfer belt unit.
 P. 4-144"4.7.6 Transfer belt unit (TBU)"
(2) Remove 1 screw, and take off the harness
cover [1].
Fig. 4-476
[
1
]
[
2
]
Screw
TRU waste toner motor
[
1
]
