7

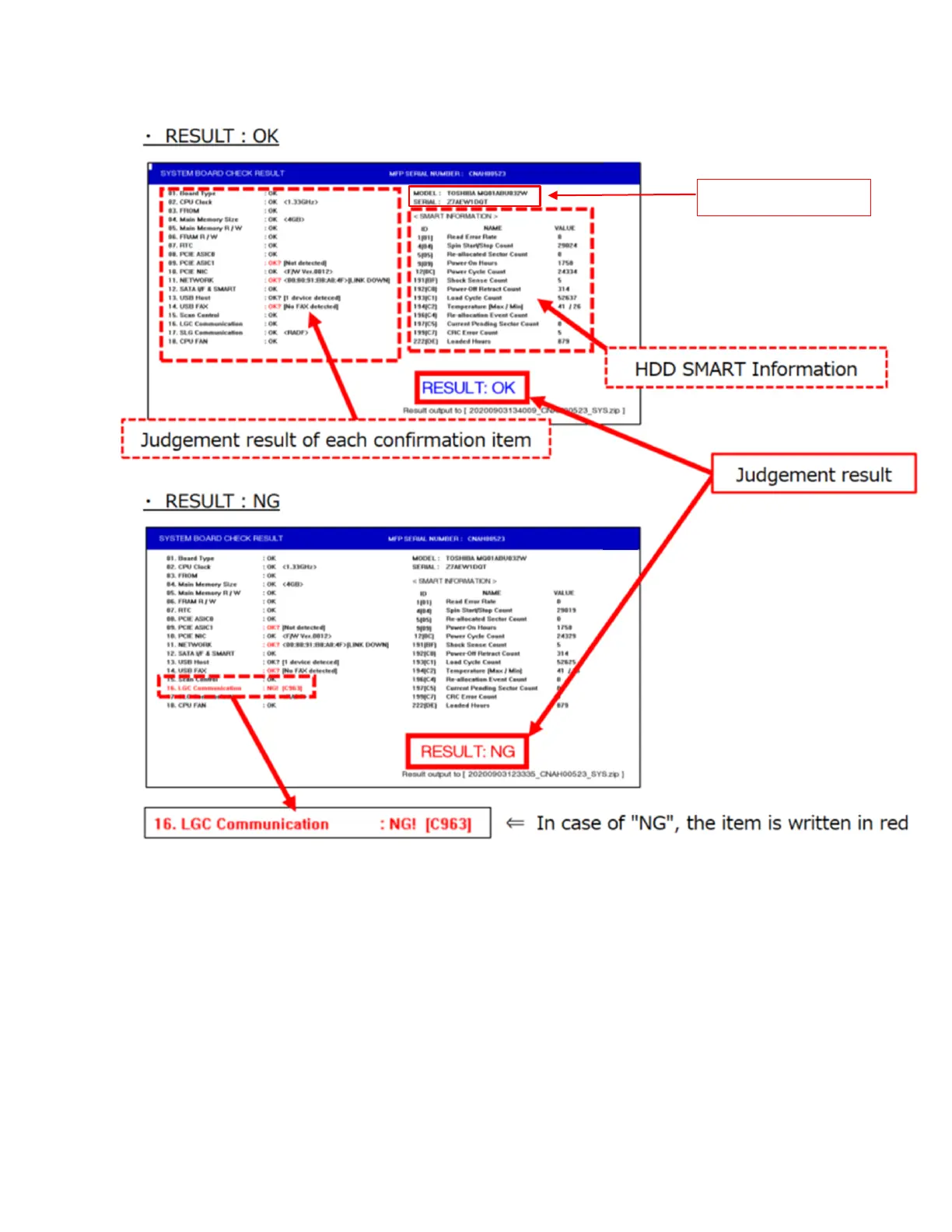

9. When the tool diagnosis has complete, the judgment of OK or NG as shown in the
example figure below is displayed on the LCD of the Control Panel.
10. When the result is displayed and the buzzer sounds, press and hold the power button for
approximately 5 seconds to turn the power OFF.
Then turn the Main power switch OFF.
11. After confirming that the power is turned OFF, remove the USB memory. The USB will
contain a compressed file with test results saved.
File name：(inspection time)_(machine S/N)_SYS.zip
Example：20200903133800_CNAH00523_SYS.zip
Note: The compressed test result file cannot be accessed with a computer and is for
use by the factory for additional troubleshooting when necessary.
To Next Page
