24
3.5. Replacing the base
3.5.1. Replacing the serial label
The base has a serial label indicating the manufacturer's serial number of the unit.
In replacing the base, remove the serial label and attach it to the new base.
3.5.2. Installing the strap holder

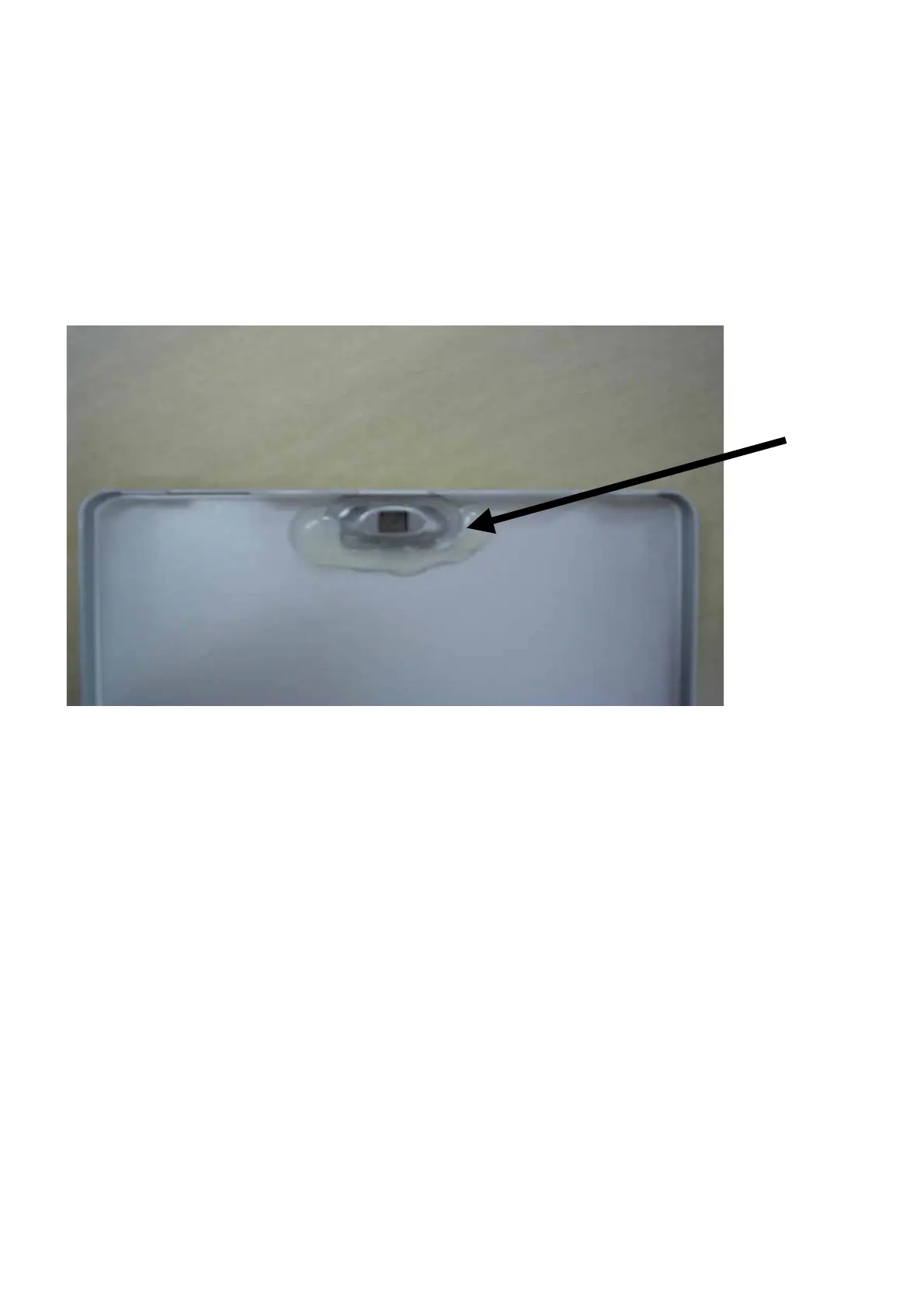

Fix the strap holder to the base with hot melt as shown in the figure below
.
Circumference,
bottom 1/2
Circumference
+5mm maximum
26
28
Table of Contents
Table of Contents
4
Product Overview
5
Product Outline
5
Block Diagram
8
Logic Circuit Block Diagram
8
Power Circuit Block Diagram
9
Cautions on Repair
10
Tell the Owner that the Contents of the HDD May be Erased
10
Remove the AC Adaptor and Set the BATTERY Switch to off
10
When Replacing the HDD
11
When Replacing the Main Board
25
Replacing the Base
27
Replacing the Frame
28
Replacing the LCD and LCD Backlight Unit
29
Replacing the Lithium-Ion Battery
30
Replacing the Cradle
30
Troubleshooting
31
Anticipated Defects
31
Defect Analysis Procedure as a Maintenance Service
32
Procedure to Confirm the Firmware Version
39
About the Version of Firmware
39
Disassembling/Reassembling Procedures
40
Disassembling Procedures
41
Reassembling Procedures
45
Exploded View
48
Parts List
49
Specifications
50
