36 1600XPi Series UPS Installation and Operation Manual – 60616-014
EXTERNAL BATTERY CABINETS (MATCHING) (cont)
BATTERY STRING FAULTS
External Battery Cabinet battery string faults, such a blown fuse, resulting in a loss of power ow are marked in the icon
display by a thin line on that battery string. Figure 16-2 shows the result of a battery fault in battery string #2 in External
Battery Cabinet 1.
If a fault occurs in one of the External Battery Cabinet battery strings, correct the fault then reset the UPS by pressing the
RESET switch on the lower right side of the display panel. (See Section 12.1)
On-Line
DVCOH
EXTBC1
Main Monitor Settings Records
12:35 PM
INV
HOME
USR
96% 100%
Internal Battery
External Battery 1
External Battery 2
On-Line
DVCOH
EXTBC1
Main Monitor Settings Records
12:35 PM
INV
HOME
USR
96% 100%
Monitor
Battery Cabinet 1
Voltage DC: 280 V
Charge %: 90 %
Current: 1.00 A

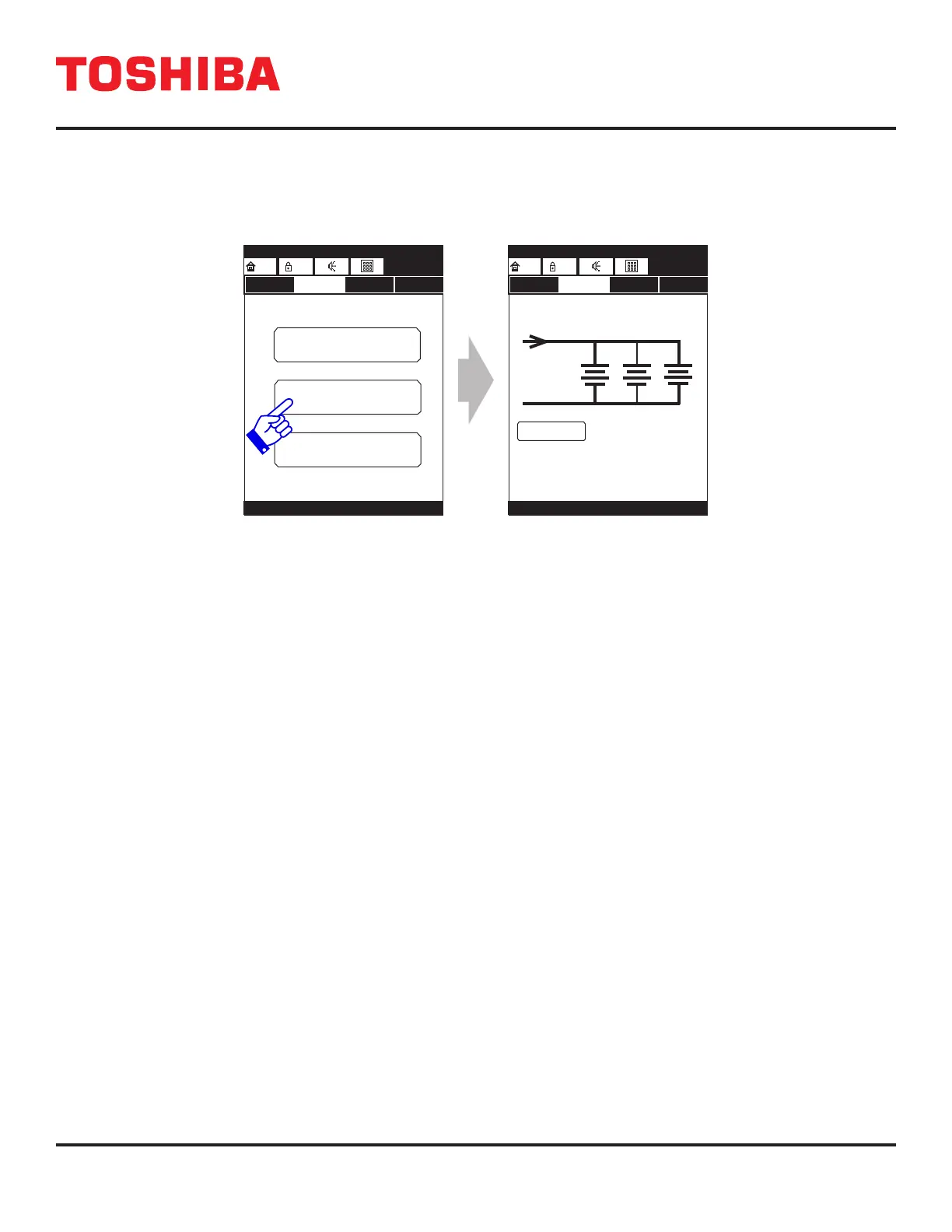

Figure 16-2: Battery String Icons Showing Fault Condition
