46

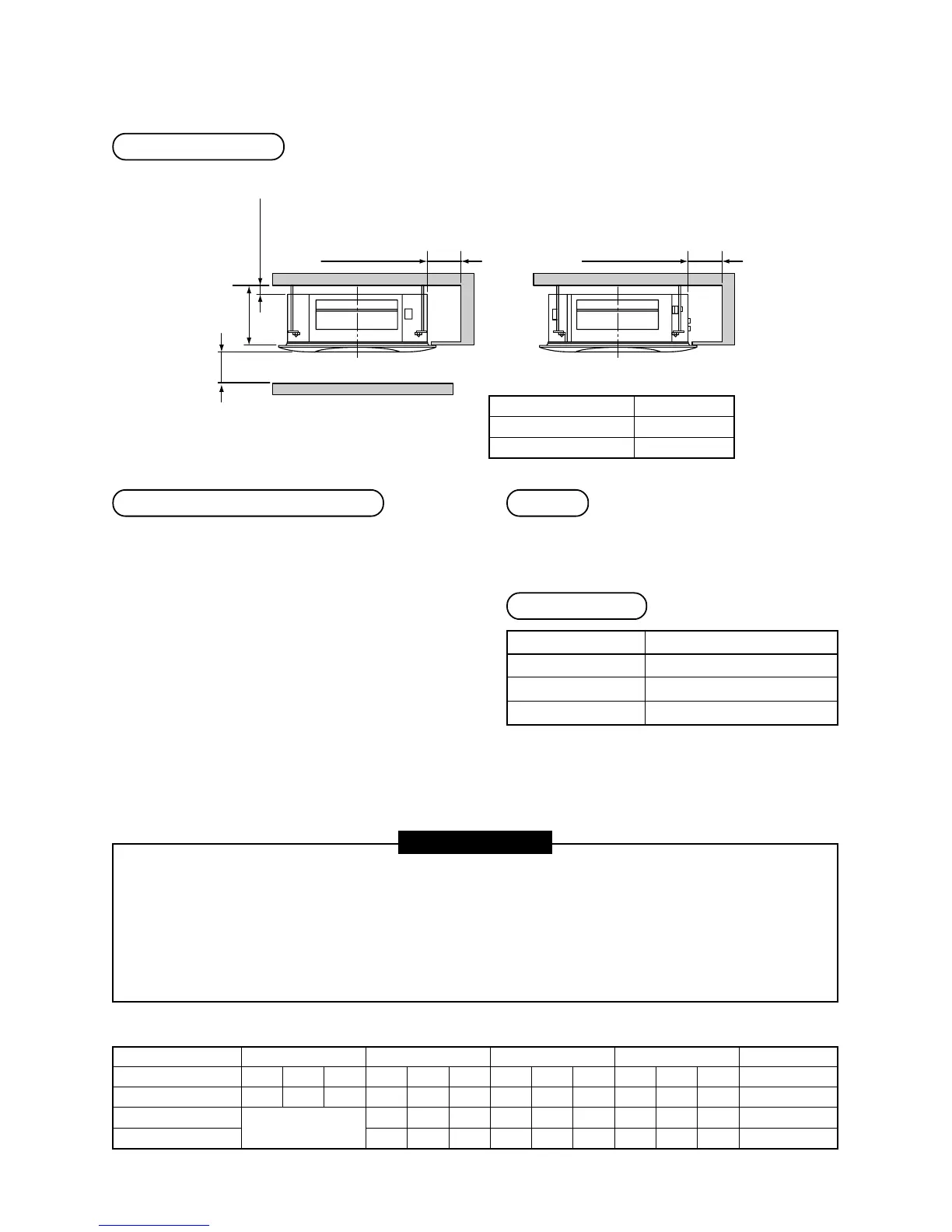

6-3. 4-Way Air Discharge Cassette Type
Installation space
Secure the specified space in the figure for installation and servicing.
1000
or more
15 or more
1000 or more
Obstacle
Model MMU- A mm
AP0091H to AP0301H
AP0361H to AP0561H
271 or more
334 or more
A
1000 or more
Model MMU-
AP0091H to AP0121H
AP0151H to AP0301H
AP0361H to AP0561H
Possible installed ceiling height
Up to 2.7 m
Up to 3.8 m
Up to 4.3 m
Selection of installation place
In case of continued operation of the indoor unit under
high-humidity conditions as described below, dew may
condense and water may drop.
Especially, high-humidity atmosphere (dew point
temperature : 23°C or more) may generate dew inside
the ceiling.
1. Unit is installed inside the ceiling with slated roof.
2. Unit is installed at a location using inside of the
ceiling as fresh air take-in path.
3. Kitchen
If installing a unit at such place, put insulating material
(glass wool, etc.) additionally on all the positions of the
indoor unit which come to contact with high-humidity
atmosphere.
Advice
Set a service check opening panel at right side of
the unit (size: 450 x 450mm or more) for piping,
maintenance, and servicing.
Ceiling height
When the height of the ceiling exceeds the distance
of the item Standard/4-way in Table below, the hot
air is difficult to reach the floor. Therefore, it is
necessary to change the setup value of the high
ceiling switch or discharge direction.
REQUIREMENT
When using the air conditioner with 2-way discharge system with the standard setting (at a shipment), it
may stop abnormally in heating. Therefore, change the setting switch according to the number of discharge
direction and the ceiling height.
When using the air conditioner with 2-way/3-way discharge system, a strong wind blows directly if the ceiling
height is lower than the standard. Therefore, change the setting switch according to height of the ceiling.
When using the high ceiling (1) or (2) with 4-way discharge system, the draft is apt to be felt due to drop of
the discharge temperature.
Installable ceiling (Unit : m)
Model MMU-
No. of discharge direction
Standard (at shipment)
High ceiling (1)
High ceiling (2)
High ceilong setup
Set data
0000
0001
0003
AP0091H to AP0121H
4-way 3-way 2-way
2.7 3.0
AP0151H to AP0181H
4-way 3-way 2-way
2.8 3.2 3.5
3.2 3.5 3.8
3.5 3.8
AP0241H to AP0301H
4-way 3-way 2-way
3.0 3.3 3.6
3.3 3.5 3.8
3.6 3.8
AP0361H to AP0561H
4-way 3-way 2-way
3.6 3.9 4.2
3.9 4.1 4.3
4.2 4.3
Cannot be installed
to a high ceiling
