Toshiba MMD-AP0181BH Installation Manual

60
Ø26 Power supply,
remote controller cable take-out port
110
129
44
49
Knock-out hole Ø125
(Air take-in port)
6-Ø4 Tapping screw hole Ø160
Hanging bolt pitch 700
59
41
Main unit dimension 800
75
Hanging bolt pitch B
<Air outlet side>
Main unit dimension A
C
Refrigerant pipe
connecting port
(Gas side ØF)
Hanging bolt
4-M10 screw
(Arranged locally)
Refrigerant pipe connecting port
(Liquid side ØG)
Drain pipe connecting port for vinyl chloride pipe
(Inner dia. 32, VP. 25)
41
196
393
498
638
50
131
243
50
174
320
240
215
16
120
4
2.7
120
• Wired remote controller
(RBC-AMT21E)
Hanging bolt pitch B
<Air inlet side>
Main unit dimension A
D
Hanging bolt
4-M10 screw
(Arranged locally)
240

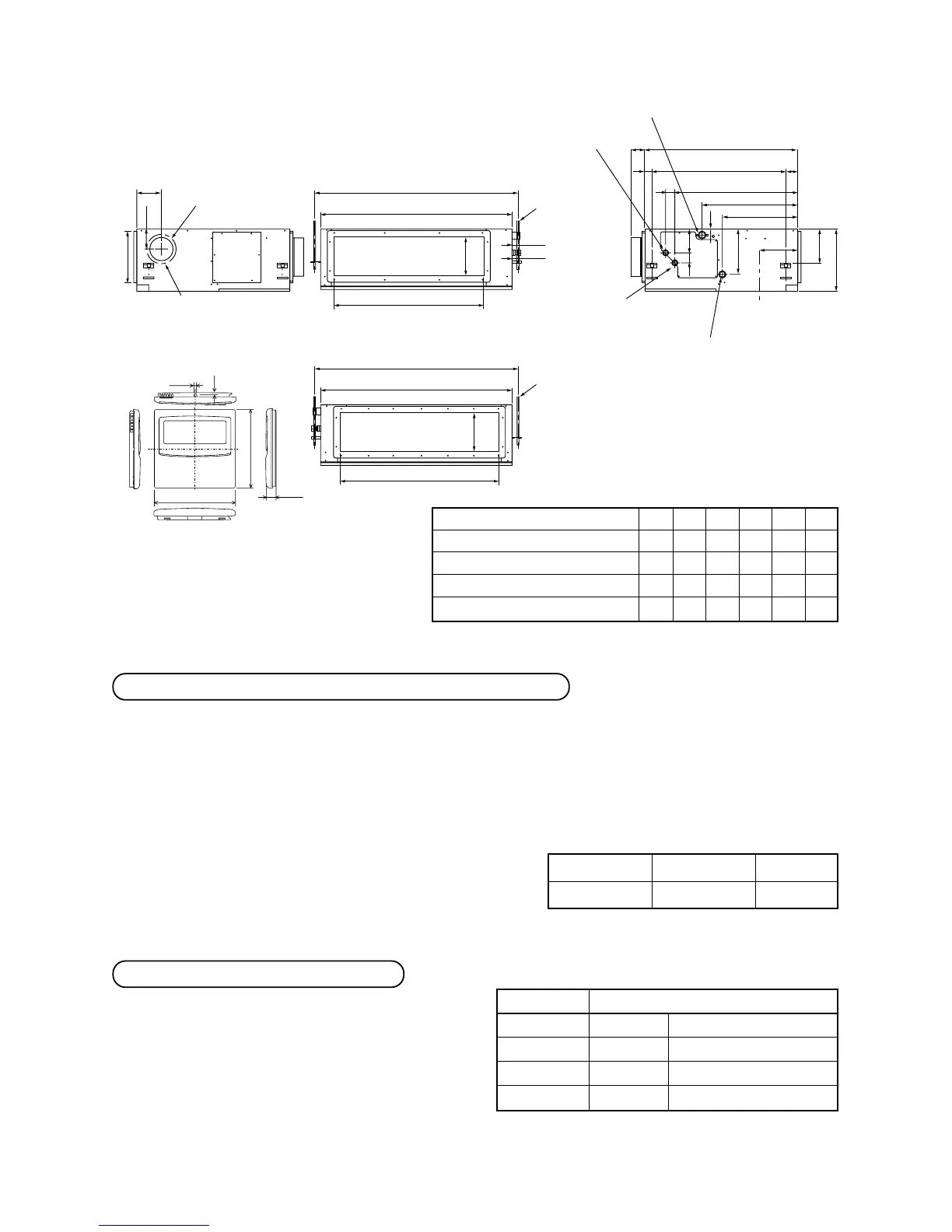

External view
Opening hole on ceiling and placing of hanging bolt
• Considering the indoor unit and the hanged-up piping/wiring work, determine the installation position and
direction.
• After installation position of the indoor unit has been determined, open a hole on the wiring and place the
hanging bolt.
• For opening size of the ceiling and the hanging bolt pitch, see the external view.
• When the ceiling has already boarded, draw the drain pipe, refrigerant pipe, inter-unit wire between indoor and
outdoor units, central control system wire, and remote controller wire up to the position where pipes and wires
are connected before hanged-up the indoor unit.
The hanging bolts and nuts will be procured locally.
Hanging bolt
Nut
M10 or W3/8
M10 or W3/8
4 pieces
12 pieces
Model MMD-
AP0071BH, AP0091BH, AP0121BH
AP0151BH, AP0181BH
AP0241BH, AP0271BH, AP0301BH
AP0361BH, AP0481BH, AP0561BH
ABCDFG
550 616 350 470 9.5 6.4
700 766 500 620 12.7 6.4
1000 1066 800 920 15.9 9.5
1350 1416 1150 1270 15.9 9.5
Setup data
0000
0001
0003
0006
Outside static pressure
40Pa Standard (At shipment)
70Pa *1 High static pressure 1
100Pa *2 High static pressure 2
20Pa Low static pressure
Setup of outside static pressure
Be sure to set up a tap change based upon the
resistance (External static pressure) of the duct to be
connected.
To change the external static pressure, setup the
item code (DN) from wired remote controller is
necessary. (Item code = [5d])
For detailed procedure, refer to “18. APPLIED
CONTROL”.
<Change on wired remote controller>
*1: 65Pa for Model AP0481BH, AP0561BH
*2: 90Pa for Model AP0481BH, AP0561BH
