– 91 –

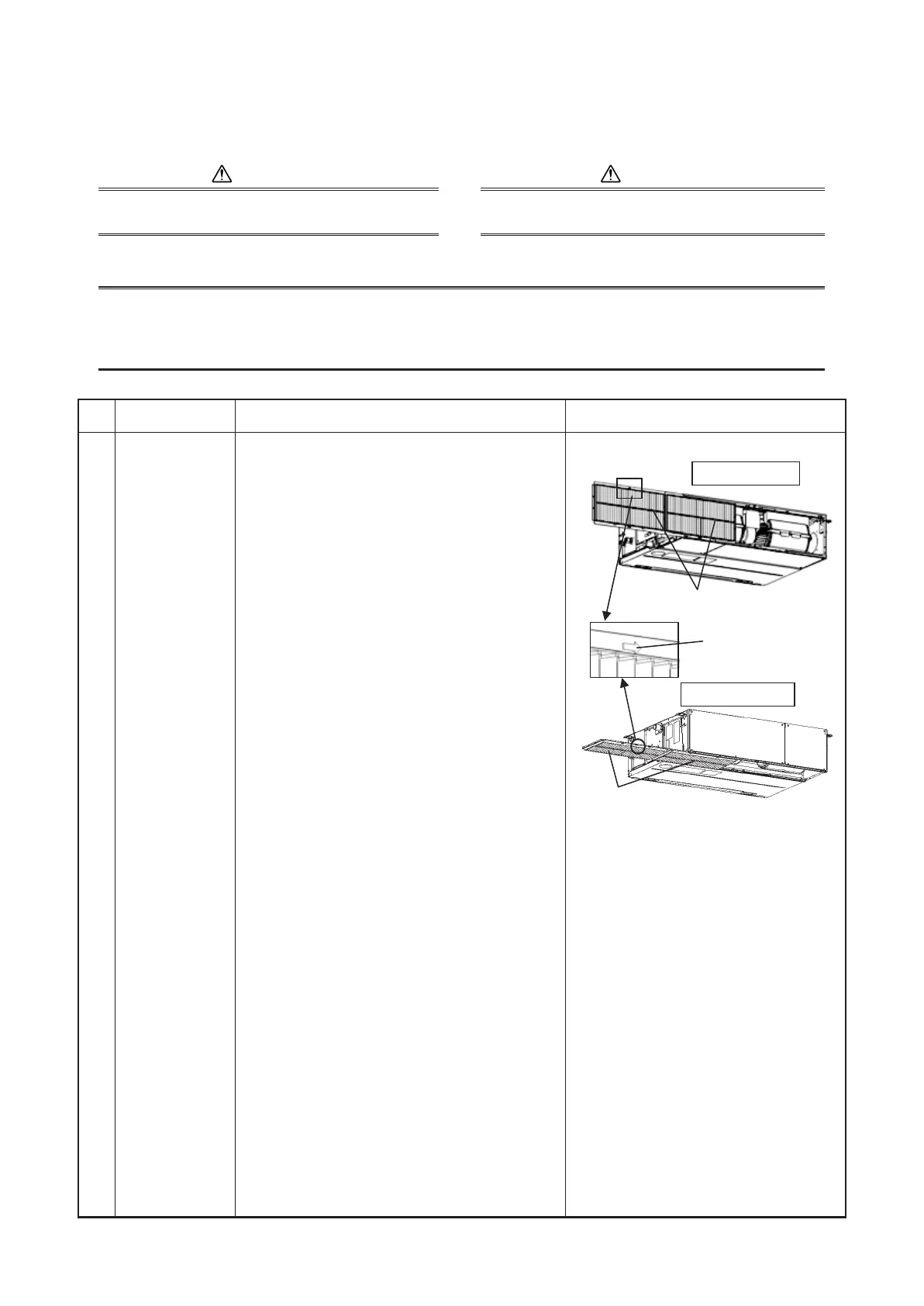

11. DETACHMENTS
No. Part name Procedure Remarks
WARNING
Be sure to stop operation of the air conditioner before
work and then turn off switch of the breaker.
CAUTION
Be sure to put on gloves during working time;
otherwise an injury will be caused by a part, etc.
NOTE
In a section, Detachments, the models are expressed as follows for convenience.
AP007: MMD-AP0076BHP1-E(TR) to AP0186BHP1-E(TR)
AP024: MMD-AP0246BHP1-E(TR) to AP0306BHP1-E(TR)
AP036: MMD-AP0366BHP1-E(TR) to AP0566BHP1-E(TR)
Back air intake
Air filter
Arrow mark
Air filter
Under air intake
1. Detachment
1) Slide the filter toward the opposite side of
the arrow mark and then pull out the filter.
(In the case that two filters are provided,
pull out the first filter, then the second filter
will be pulled out connected with the first
filter.)
2. Attachment
1) Insert the filter in the filter rail toward the
arrow mark, slide it until the filter stops and
then fix it.
(In the case that two filters are provided,
insert the second filter in the same
direction after inserting the first filter.)
Air filter
c
To Next Page
