User’s Manual 2-3
The Grand Tour
Left side

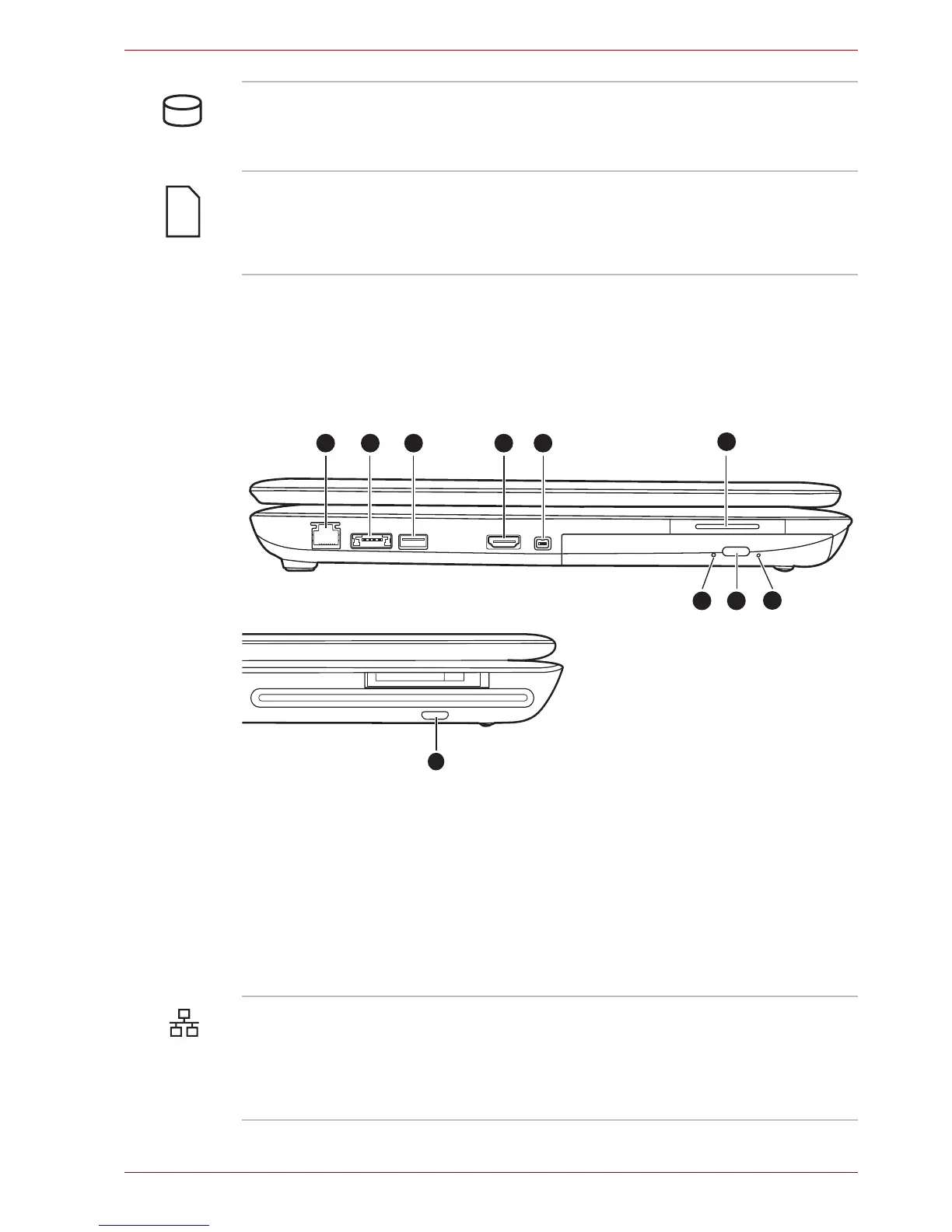

The following figure shows the computer's left side.
■ Tray ODD
The left side of the computer
Disk LED Disk LED indicates that the hard disk drive or
optical disc drive is being accessed.
Multiple Digital
Media Card Slot LED
Multiple Digital Media Card Slot LED lights up
when the Multiple Digital Media Card Slot is
accessed.
(Provided with some models)
1 2 3 4 5 6
87 9
10
1. LAN Jack
2. eSATA/USB Combo Port
3. Universal Serial Bus (USB 2.0) Port
4. HDMI Port
5. i.LINK (IEEE 1394a) Port
6. Express Card Slot
7. ODD Indicator (Tray ODD)
8. Eject Button (Tray ODD)
9. Emergency Eject Hole (Tray ODD)
10. Eject Button (Slot ODD)
■ Slot ODD
LAN Jack This jack lets you connect to a LAN. The adaptor
has built-in support for Fast Ethernet LAN or
Giga bit Ethernet. (Depends on the model you
purchased) Refer to Chapter 4, Operating
Basics, for details.
