12. EXPLODED VIEWS AND PARTS LIST

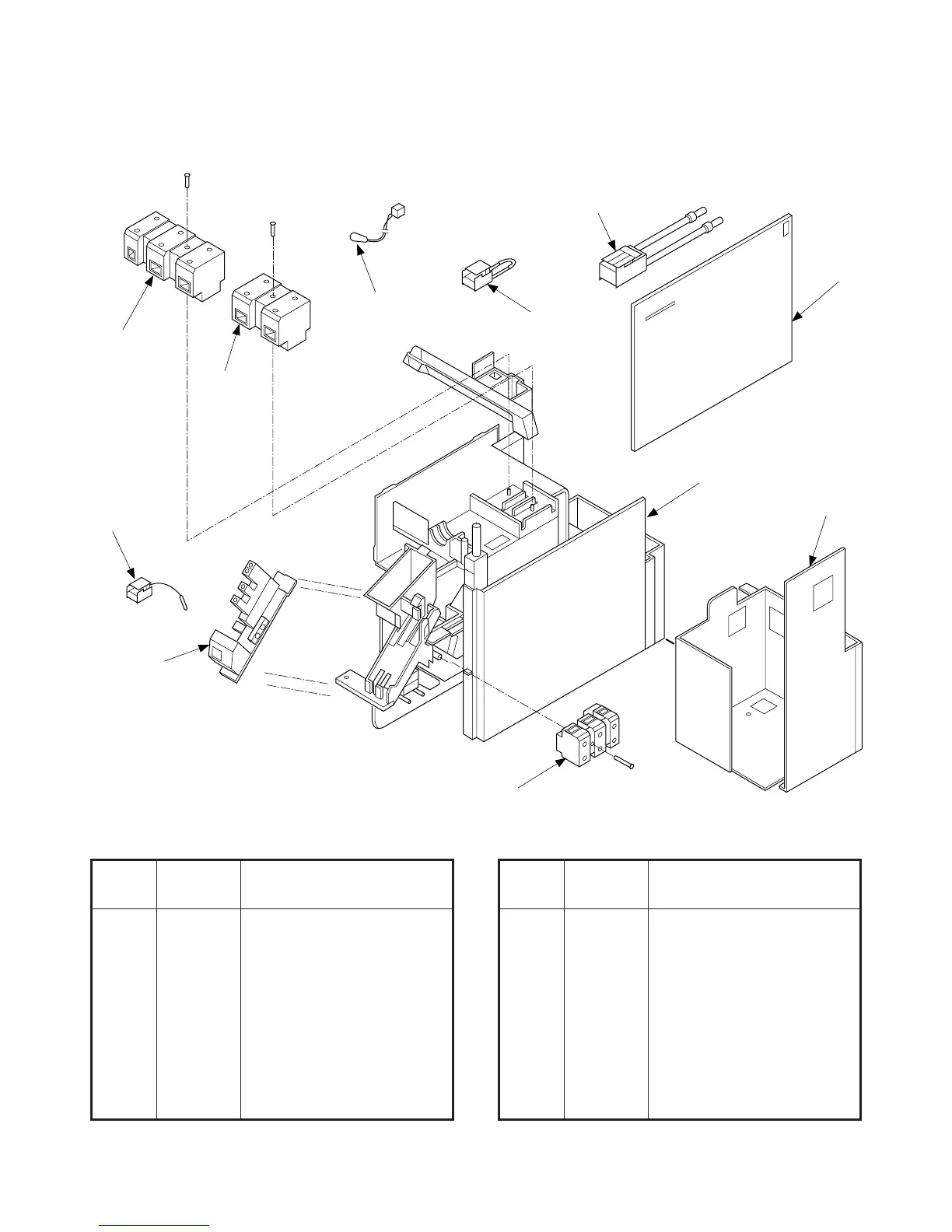

12-1. Indoor Unit (1)
403 43T60002 Base, Terminal
3P, AC 300V, 20A
407 43T69004 Sensor, Heat Exchanger
10kΩ, 25°C
410 43T69005 Sensor, Thermostat
10kΩ, 25°C
411 43T60004 Fuse, Temperature 77°C
414 43T69007 PC Board, WRS-LED
MCC-635
Location Part
Description
No. No.
415 43T69008 PC Board A’ssy MCC-713
416 43T61001 Base, E-Parts
ABS, Black, UL94-5V
417 43T62006 Base, Shield
SGCC-Z08-LUB
419 43T60001 Base, Terminal
2P, AC 300V, 20A
420 43T60005 Housing 4P
Location Part
Description
No. No.
403
407
420
411
415
416
417
403
414
410
419

Toshiba RAS-10SKH-E Specifications

General

Type	Split System
Cooling Capacity	2.5 kW
Heating Capacity	3.2 kW
Power Supply	220-240V, 50Hz
Refrigerant	R410A
Energy Efficiency Ratio (EER)	3.21
Coefficient of Performance (COP)	3.61
Outdoor Unit Dimensions (W x H x D)	660 x 530 x 240 mm
Indoor Unit Weight	9 kg
Noise Level (Outdoor)	48 dB(A)
