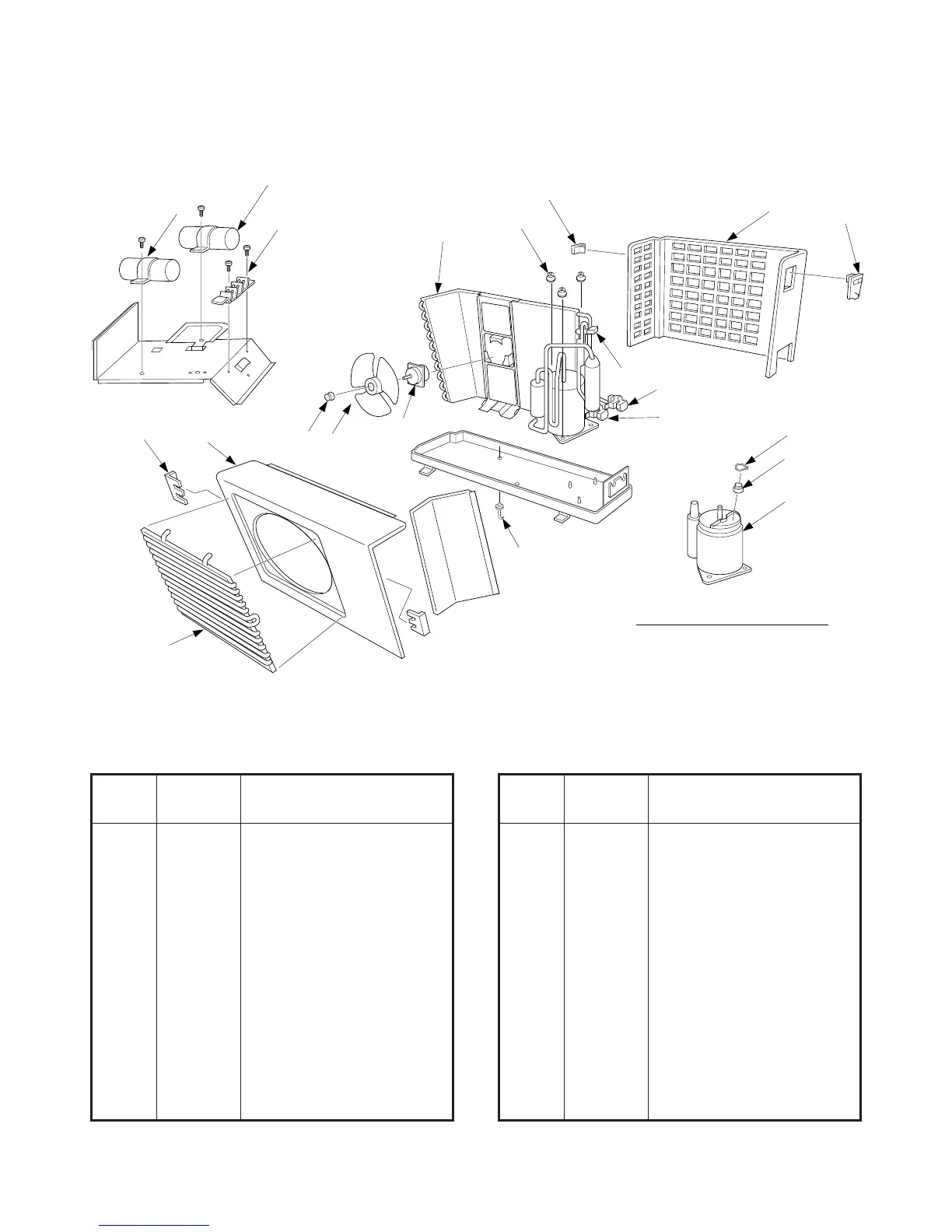

12-2. Outdoor Unit
1
19
3
23
24
25
14
2
13
4
17
16
6
5
20
21
22
7 : CAPILLARY TUBE
8, 9
10, 11
12
15
18
1 43T19001 Guard Fan
2 43T20001 Fan, Propeller
3 43005037 Front Cabinet
4 43T43001 Condenser
5 43062194 Cover, E-Parts
6 43005038 Back Cabinet
7 43T47004 Capillary-Tube 1.7 DIA
8 43T46001 Packed Valve, 9.52
9 43T47002 Bonnet, 9.52 DIA
10 43T46002 Packed Valve, 6.35
11 43T47003 Bonnet, 6.35 DIA
12 43T46003 4-Way-Valve, VH7100D
13 43T21001 Fan-Motor UE6-21SJ5P
14 43T47001 Flange, Nut
15 43046255 Solenoid Coil
16 43T19005 Handle
17 43T49001 Rubber-Cushion
18 43T79001 Nipple, Drain
19 43T19002 Stopper, Guard
20 43T63001 Holder, OL-Relay
21 43054403 Relay, Over-Load
J-MRA 99269-9200
22 43T41400 Compressor, PH120T1-4C
23 43055483 MF Capacitor 25µF 400V
24 43T55001 MF Capacitor 1.5µF, 500V
25 43060049 Terminal Block, 5P
Location Part
Description
No. No.
Location Part
Description
No. No.

Toshiba RAS-10SKH-E Specifications

General

Type	Split System
Cooling Capacity	2.5 kW
Heating Capacity	3.2 kW
Power Supply	220-240V, 50Hz
Refrigerant	R410A
Energy Efficiency Ratio (EER)	3.21
Coefficient of Performance (COP)	3.61
Outdoor Unit Dimensions (W x H x D)	660 x 530 x 240 mm
Indoor Unit Weight	9 kg
Noise Level (Outdoor)	48 dB(A)
