– 66 –
FILE NO. SVM-08032

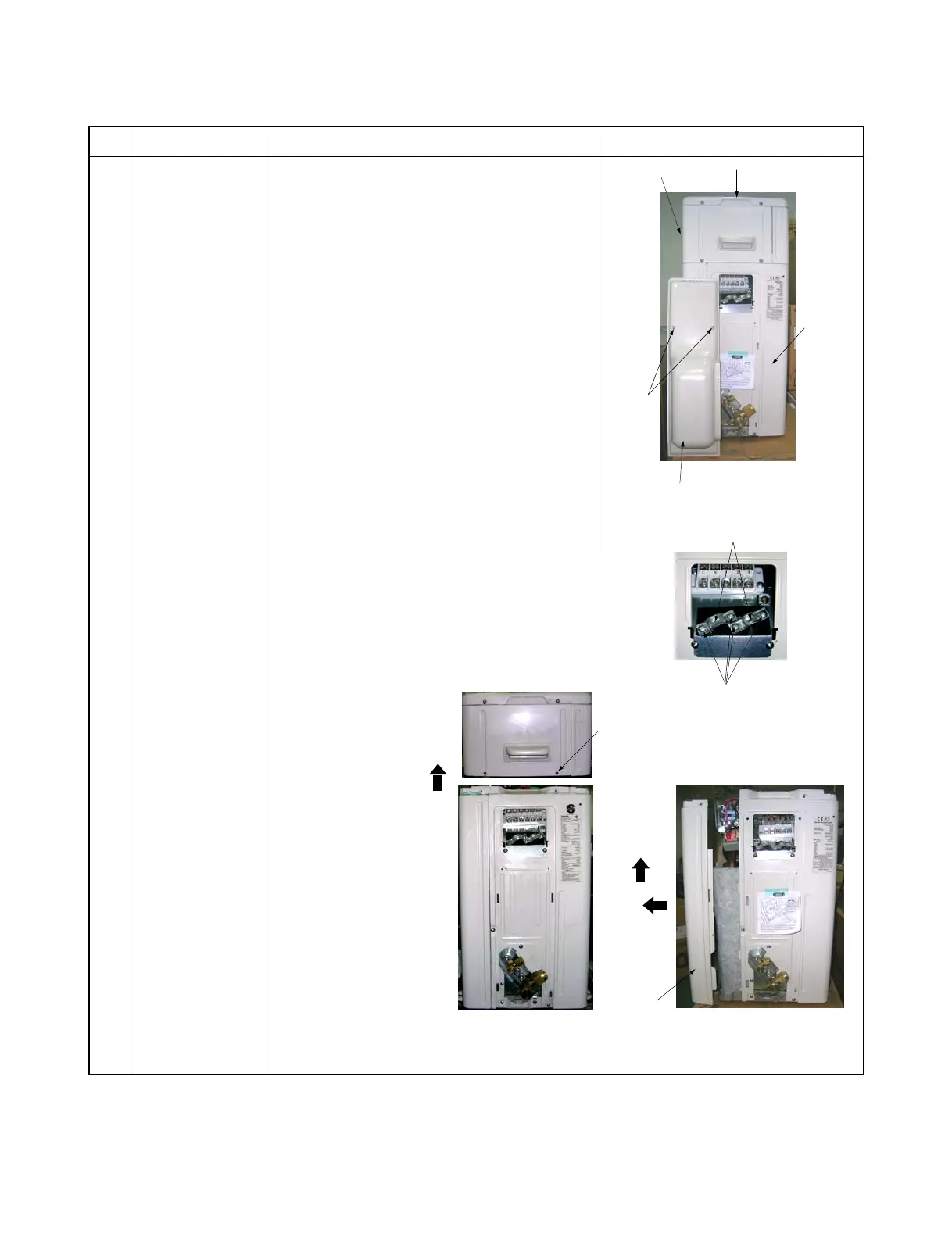

10-3. Outdoor Unit (RAS-24S2AX, RAS-24S2A-E)
1) Stop the operation of the air conditioner and turn off
its main power supply or remove the power supply
cord.
3) Remove 2 cord clamps (4 screws ∅4 x 16L) and
disconnect the power supply cord and connecting
cable after removing 6 screwson on the terminal
block and 1 ground screw on the electrical parts
base.
No. Part name Procedures Remarks
Front cabinet
2) Remove the packed valve cover and the
electrical parts cover (2 screws ∅4 x 10L)
4) Remove the top cabinet. (7 screws ∅ 4 x 10L)
(Pulling out upward)
5) Remove the top cabinet. (2 screws ∅ 4 x 10L)
(Pull the front right portion toward you, and
remove it pulling out upward)
Top cabinet
∅4 x 10L
4 screws ∅4 x 16L
7 screws ∅ 4 x 10L
Packed valve cover
Front
cabinet
2 Cord clamps
2 screws
Side
cabinet
1 Common
procedure
To Next Page
