Drain
guide
Space for pipes
Wall
Shield pipe
Inside the room
Drain hose
Extension drain hose
Arrange the drain pipe for proper drainage from the unit.
Improper drainage can result in dew-dropping.
This air conditioner has the structure designed
to drain water collected from dew, which forms
on the back of the indoor unit, to the drain pan.
Therefore, do not store the power cord and other
parts at a height above the drain guide.
CAUTION

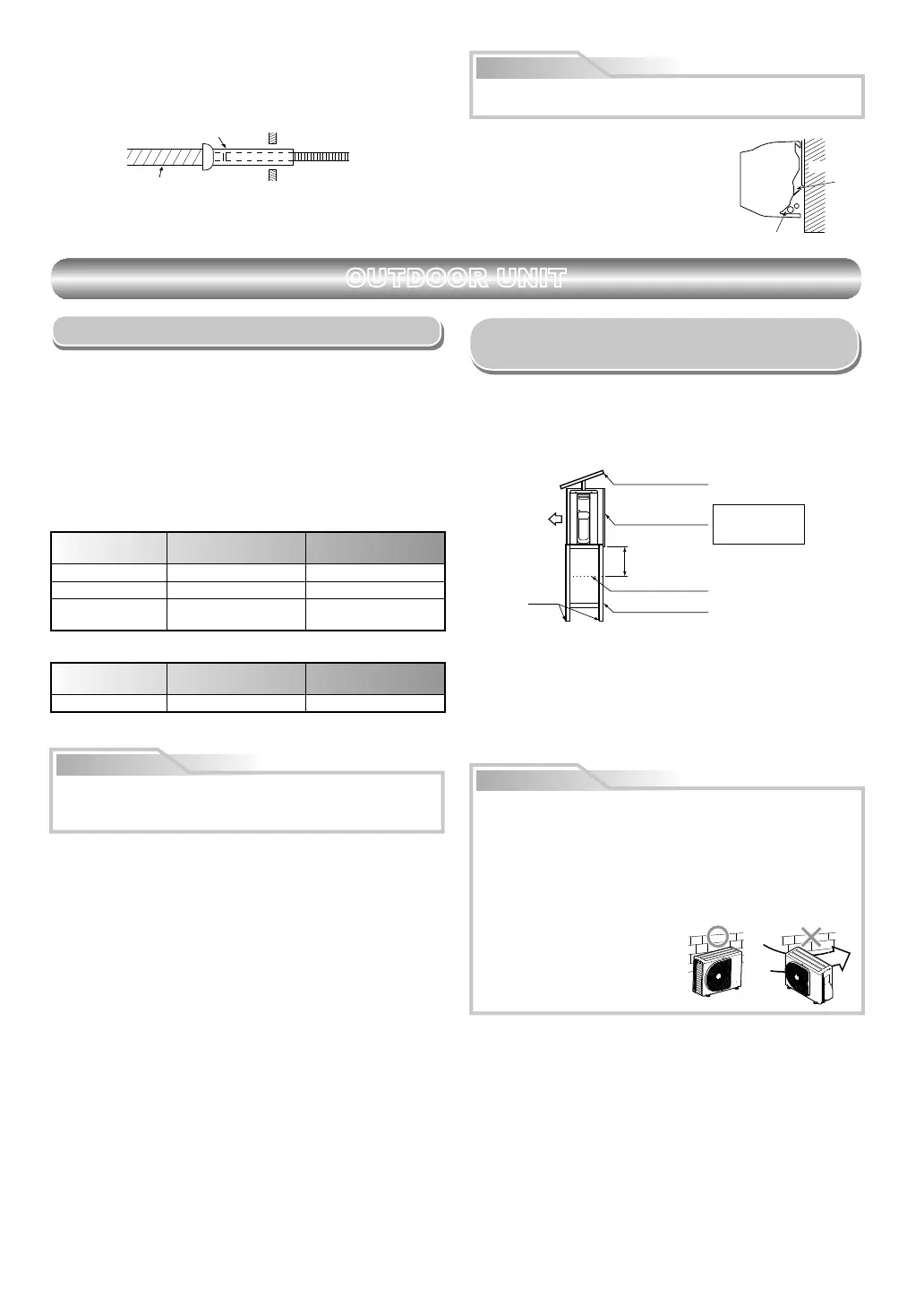

OUTDOOR UNIT
Installation Place
A place which provides the spaces around the outdoor unit as shown in the
diagram
A place which can bear the weight of the outdoor unit and does not allow an
increase in noise level and vibration
A place where the operation noise and discharged air do not disturb your
neighbors
A place which is not exposed to a strong wind
A place free of a leakage of combustible gases
A place which does not block a passage
When the outdoor unit is to be installed in an elevated position, be sure to
secure its feet.
The allowable length of the connecting pipe.
Model
RAS-05, 07, 10,
13J2AVG-E
RAS-16, 18J2AVG-E
Chargeless Up to 15 m Up to 15 m
Maximum length
Additional
refrigerant charging
16 - 20 m (20 g / 1 m)
The allowable height of outdoor unit installation site.
Model
RAS-05, 07, 10,
13J2AVG-E
RAS-16, 18J2AVG-E
A place where the drain water does not raise any problems
CAUTION
1. Install the outdoor unit without anything blocking the air discharging.
2. When the outdoor unit is installed in a place always exposed to strong
wind like a coast or on a high storey of a building, secure the normal fan
operation using a duct or a windshield.
3. In particularly windy areas, install the unit such as to avoid admission of
wind.
4. Installation in the following places may result in trouble.
Do not install the unit in such places.
A place full of machine oil
A saline-place such as the coast
A place full of sulfi de gas
A place where high-frequency
waves are likely to be generated
as from audio equipment, welders,
and medical equipment
Do not use the supplied drain nipple for draining water. Drain the water
from all the drain holes directly.
To protect the outdoor unit from snow accumulation, install a holding
frame, and attach a snow protection hood and plate.
* Do not use a double-stacked design.
Precautions about Installation in Regions
with Snowfall and Cold Temperatures
Snow protection plate
Snow protection hood
Snow accumulation line
Holding frame
At least
50 cm
Install at least 50 cm
above the snow
accumulation line.
Anchor
bolts
Front
2. Put water in the drain pan and make sure that the water is drained out of
doors.
3. When connecting extension drain hose, insulate the connecting part of
extension drain hose with shield pipe.
15 m 20 m
-
Maximum height 12 m 12 m
When the outdoor unit is installed in a place where the drain water
might cause any problems, Seal the water leakage point tightly using a
silicone adhesive or caulking compound.
CAUTION
Strong
wind
Precautions for adding refrigerant
8VHDVFDOHKDYLQJDSUHFLVLRQZLWKDWOHDVWJSHULQGH[OLQHZKHQ
adding the refrigerant.
Do not use a bathroom scale or similar instrument.
8VHOLTXLGUHIULJHUDQWZKHQUHILOOLQJWKHUHIULJHUDQW
Since the refrigerant is in liquid form, it can fill quickly.
Therefore, perform the filling operation carefully and insert the refrigerant
gradually.
8
