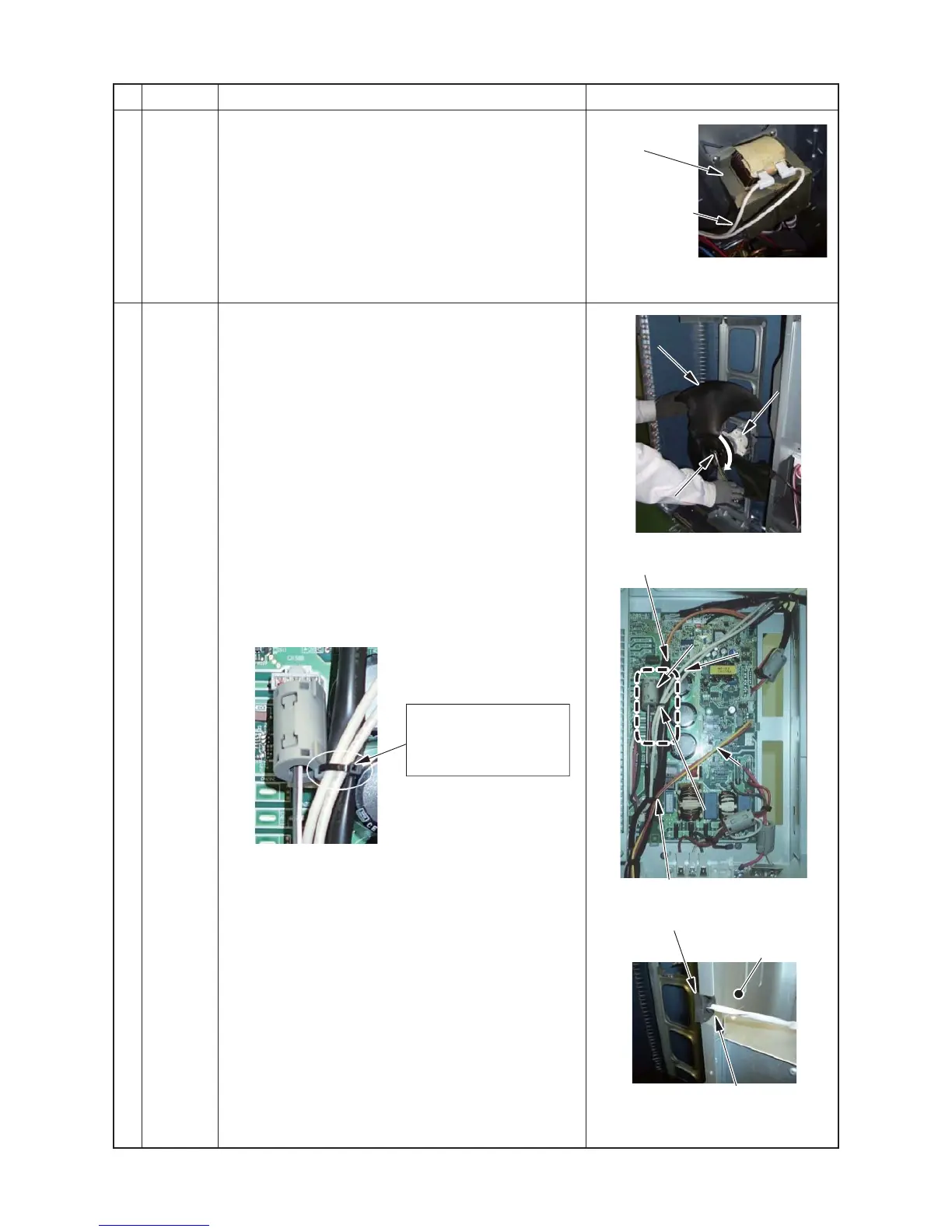

No. Part name Procedure Remarks
g
Electric
part
(Reactor)
3. Detachment (Reactor)
1) Following to work of Detachment of
f
2) Remove the connector of the reactor lead wire
connected to the reactor. (2 positions)
3) Remove the connector.
( Ø4 ST3T, 2 pcs,)
4. Attachment (Reactor)
Attach the reactor in the reverse process of the
“3. Detachment (Reactor)”.
Reactor
Reactor lead × 2
h
Fan motor
1.Detachment
1) Following to work of Detachment of
c
,
d
and
e
.
2) Make sure that the fan motor and the propeller fan
stop.
Remove the flange nut from the fan motor and
propeller fan.
• Loosen the flange nut by turning clock wise.
(To tighten the flange nut, turn it counter clockwise)
3) Remove the propeller fan.
4) Following to work of Detachment of
g
, 1) to 5).
Propeller fan
Propeller fan
Fan motor
Fan motor
Flange nut
Flange nut
(Loose it tuning to right)
(Loose it tuning to right)
Compressor case thermostat lead
(Black tube)
Clamp filter
Clamp filter
4-way valve coil lead
4-way valve coil lead
(1 : Yellow , 1 : Red )
(1 : Yellow , 1 : Red )
Binding band A1
Fan motor lead fixing rubber
Separate plate
Protrusion/refrigeration
cycle side
Propeller fan
Fan motor
Flange nut
(Loose it tuning to right)
[Detail. C]
[Detail. C]
Clamp filter
Reactor lead
Reactor lead
(White × 2)
(White × 2)
4-way valve coil lead
(1 : Yellow , 1 : Red )
Binding band A4
Binding band A4
[Detail. C]
Reactor lead
(White × 2)
Binding band A4
Pass the binding band A4
through the hole on the
clamp filter, and then
bundle two reactor leads.
[Detail.C]
5) Cut the binding band A4 ( Thickness :1.1 mm, Width
:2.5 mm) bundling the case thermostat lead and the
reactor lead × 2
6) Remove the connector for the fan motor lead.
(The clamp filter is removed and used when installing)
7) Remove the fan motor lead from the fixing rubber for
separate plate.
