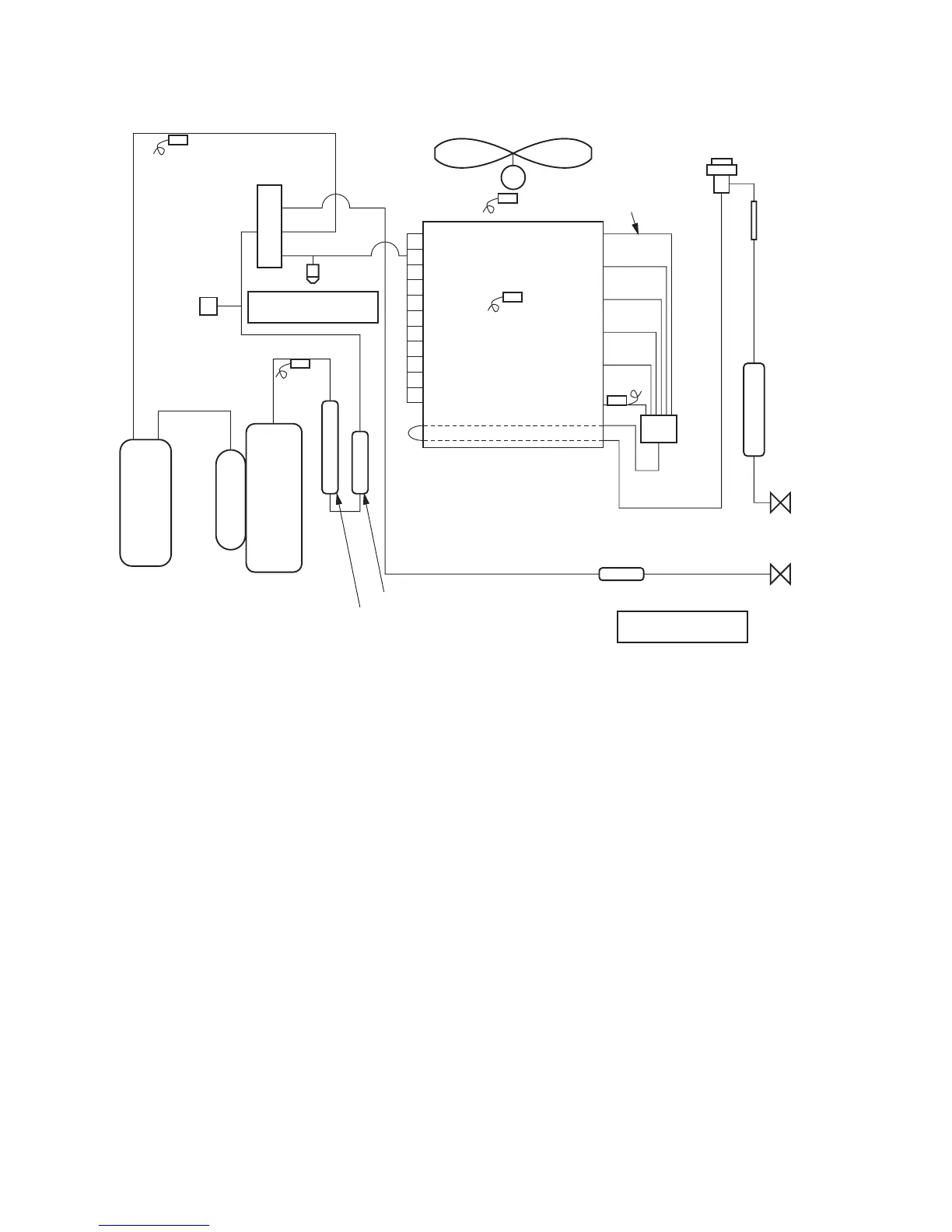

GP1101/1401
Capillary
tube
Pulse motor
valve
Fan motor
TO sensor
TL sensor
Outdoor heat exchanger
TS sensor
High-pressure
switch
Automatic restoration
OFF:4.15Mpa
ON :3.2MPa
4-way valve
TD sensor
Compressor
Accumulator
(2500cc)
Muffler Ø25 × L180
Muffler Ø25 × L210
Strainer
Ø25.4
Cooling : Low pressure
Heating : High pressure
Gas pipe
Ø15.9
Packed valve
Liquid pipe
Ø9.5
Packed valve
Strainer
Ø12.7
Liquid tan
k
(500cc)
Distributor
TE
sensor
Fan
M
Cooling : High pressure
Heating : Low pressure
Check joint
