Replacement Procedures
Satellite P100 Maintenance Manual (960-Q02) 4-47
4.18 CPU
Removing the CPU heat sink
The following describes the procedure for removing the CPU heat sink (See Figure 4-27 ).
1. Disconnect the Heat sink cable from the connector CN20 on the system board
2. Remove the following screws securing the heat sink holder along 1 to 3.
• M2.5×4.0 BIND screw x3
NOTE: When removing the heat sink holder, be sure to remove the screws in the reverse
order of the number marked on the holder.
3. Remove the CPU heat sink.

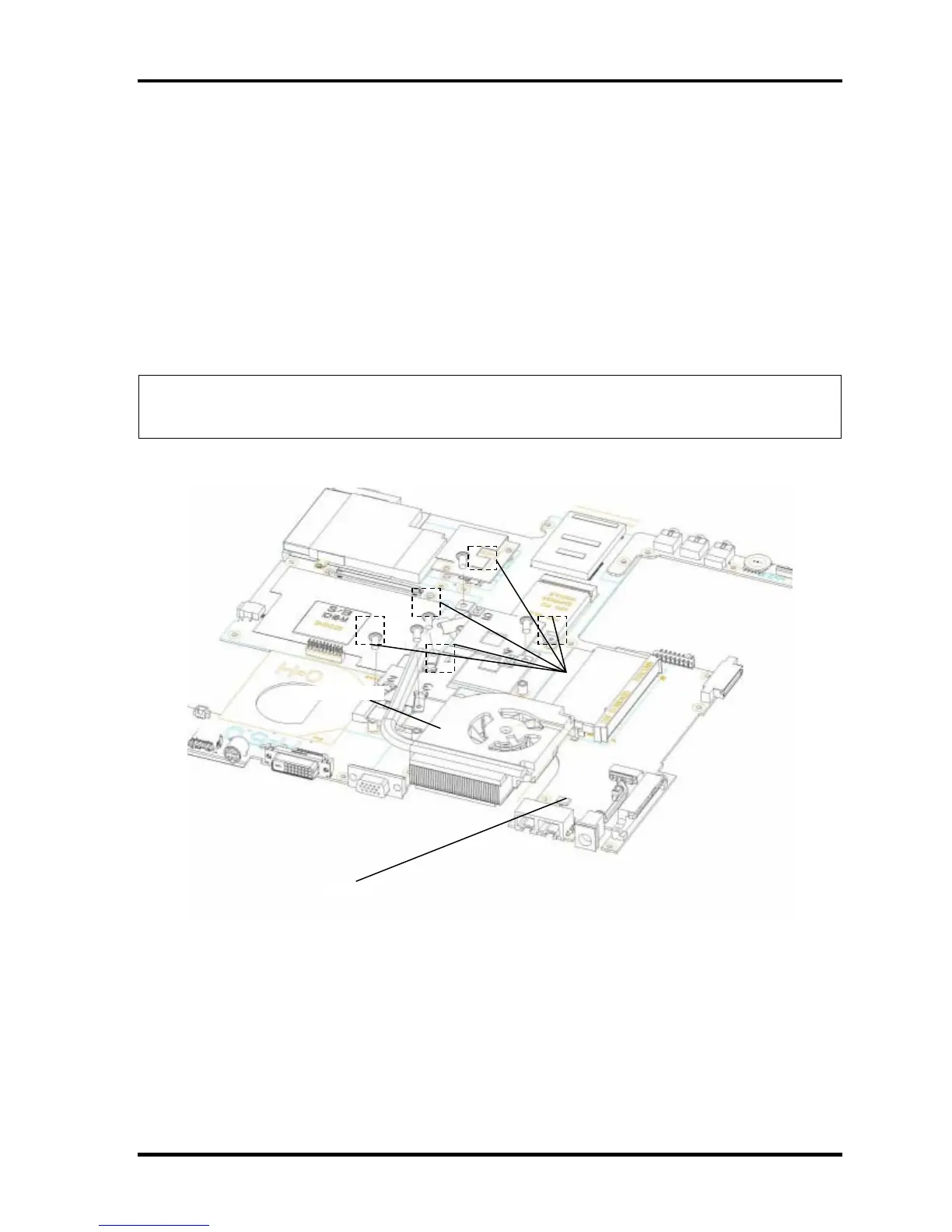

Figure 4-27 Removing the CPU heat sink
M2.5 x 4.0 BIND
CPU heat sink
CN20
1
2
3 5
4
To Next Page
