Operation section

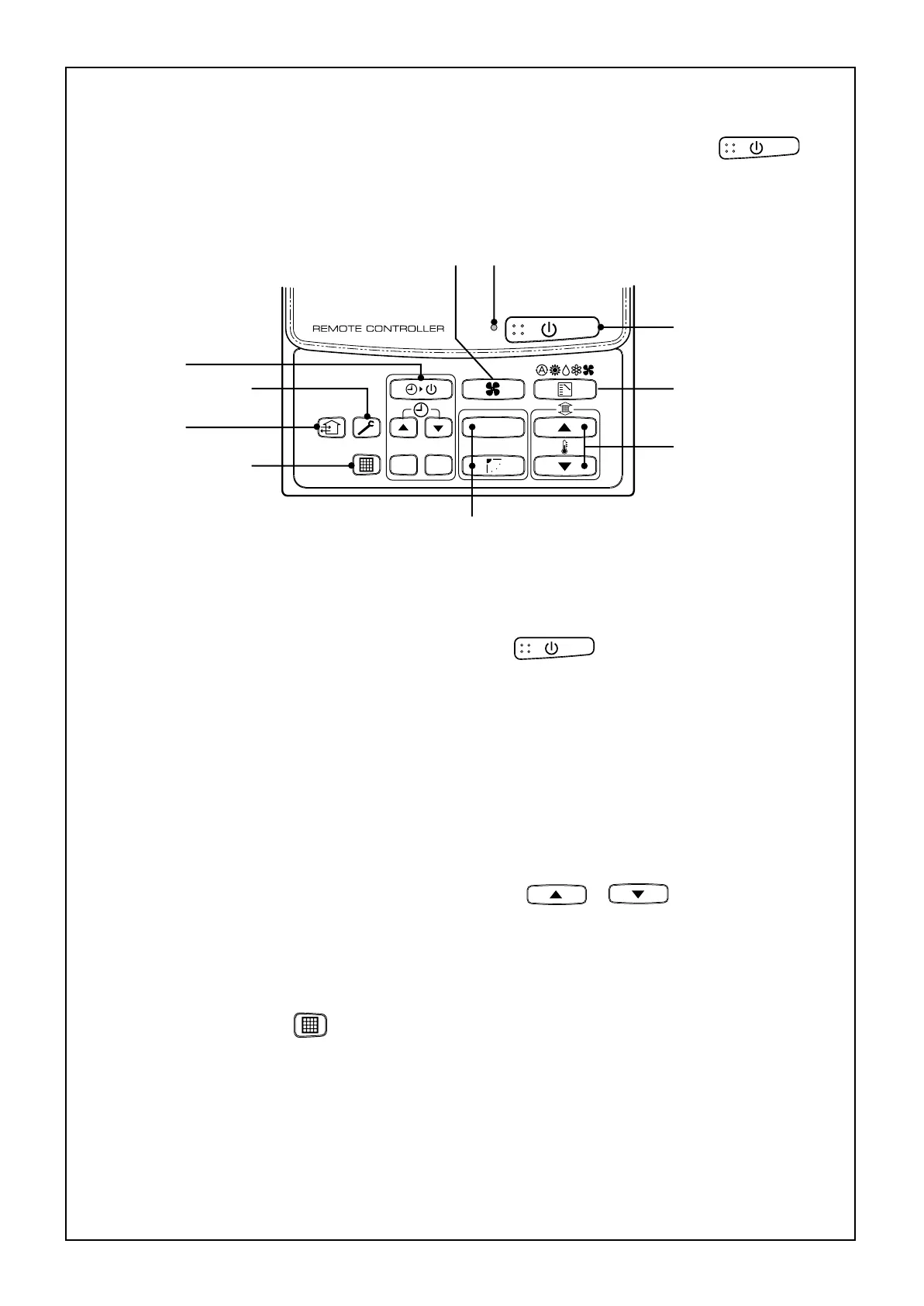

Push each button to select a desired operation.
• The details of the operation needs to be set up once, the same states are used by pushing
button.
1 Fan mode button
Selects a fan mode.
2 Timer set button
TIMER SET button is used when the timer is
set up.
3 Check button
CHECK button is used for check operation.
During normal operation, do not use this
button.
4 Fan button
FAN button is used when a fan which is sold on
the market or etc. is connected.
• If “No function” is displayed on the remote
controller when pushing the FAN button, a
fan is not connected.
5 Filter reset button
Resets (Erases) “FILTER ” display.
6 UNIT and AUTO flap button
No function
7 Operation lamp
Lamp is lit during the operation. Lamp is off
when stopped.
It flashes when operating a protection device
or abnormal occurred.
8 button
When the button is pushed, operation starts,
and it stops by pushing the button again.
When the operation stops, the operation lamp
and all displays disappear.
9 Operation select button
Selects operation mode.
10 Set up temperature button
Adjusts required room temperature.
Set required set temperature by pushing
or .
FILTER UP/DOWN button
(No function display)
OPTION :
Remote controller sensor
Usually the TEMP. sensor of the indoor unit mea-
sures a temperature. A temperature around the
remote controller can also be measured.
For details, contact the dealer from which you have
purchased the air conditioner.
