User’s Manual 2-7
TECRA A10/S10/M10/SatellitePro S300
Underside
The following figure shows the underside of the computer. You should
ensure that the display is closed before the computer is turned over to
avoid causing any damage.

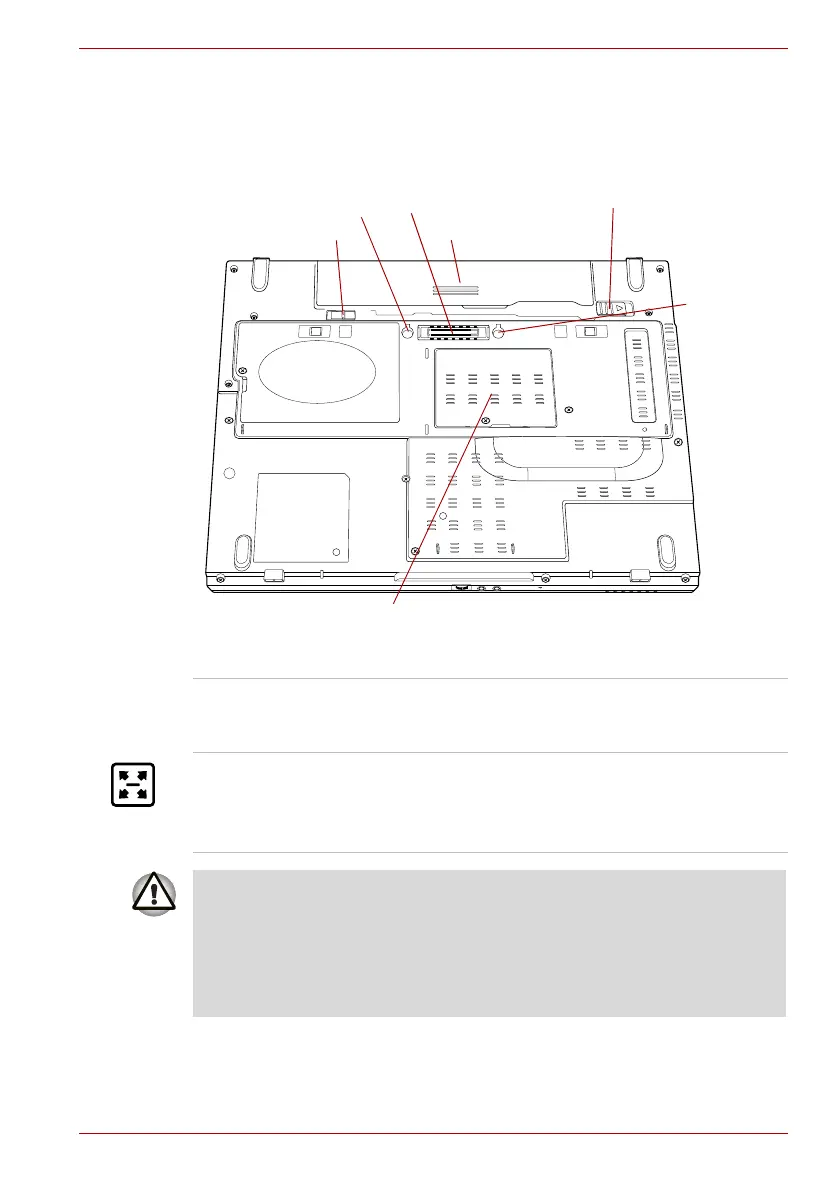

Figure 2-5 The underside of the computer
Memory module slot
Battery release latch
Battery pack
Battery lock
Notch
Docking port
Notch
Notches Notches on the computer engage hooks on the
TOSHIBA Express Port Replicator to ensure a
secure connection.
Docking port This port enables connection of an optional
TOSHIBA Express Port Replicator described in
Chapter 3, Hardware, Utilities and Options.
Some models are equipped with a Docking port.
■ Only the TOSHIBA Express Port Replicator can be used with this
computer. Do not attempt to use any other Port Replicator.
■ Keep foreign objects out of the docking port. A pin or similar object can
damage the computer’s circuitry.
■ Do not use the computer’s External monitor port, when connecting the
TOSHIBA Express Port Replicator to the computer.
