Preparations

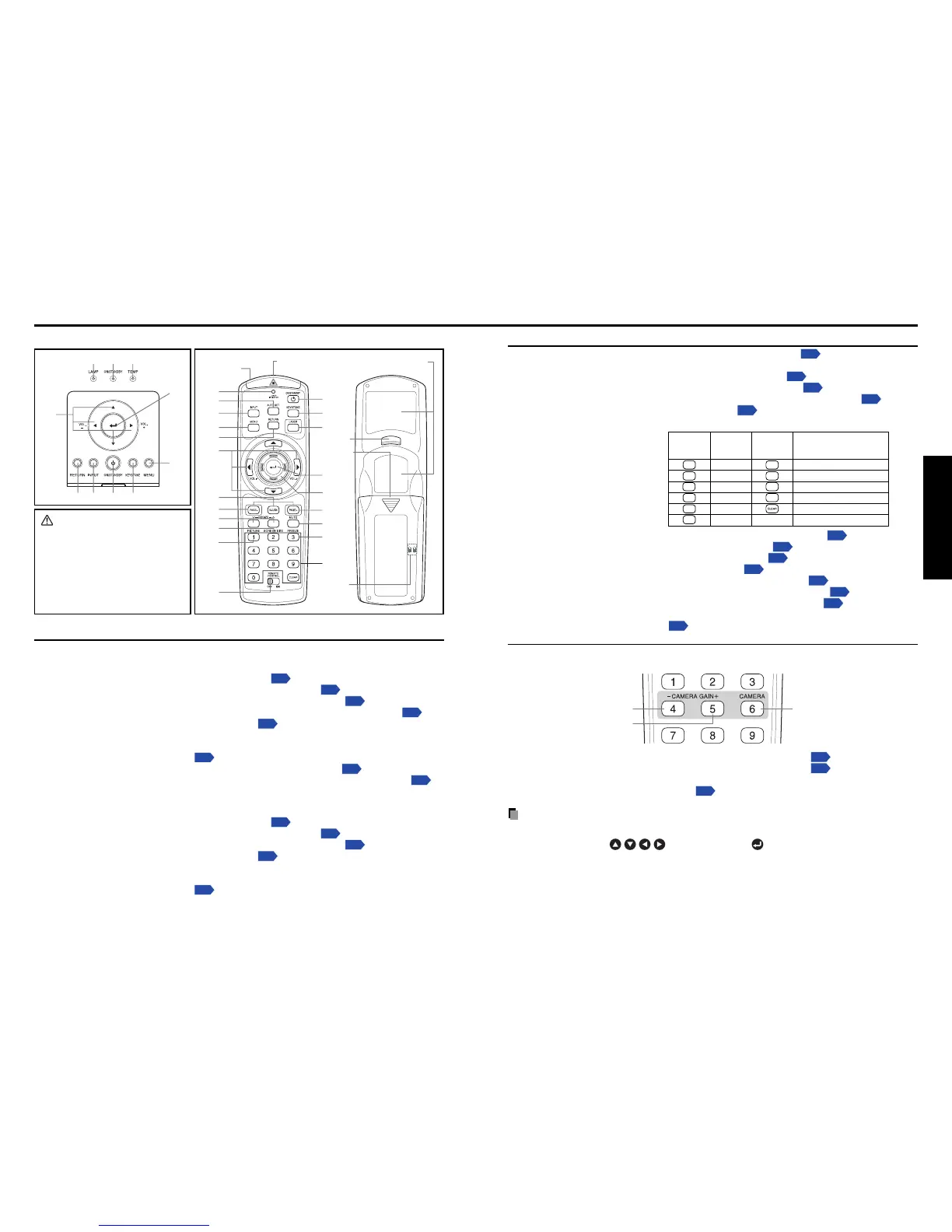

Names of each part on the control panel and remote control
Control panel Remote Control (TLP-X2000)
Name : Main Function
Control panel
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
p.36
(3) KEYSTONE button : Adjusts keystone distortion.
p.29
(4) ON/STANDBY button : Turns the power on/off (standby).
p.25
(5) ON/STANDBY indicator : Displays whether power is on or off (standby).
p.25
(6) INPUT button : Selects input.
p.27
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.36
(9) LAMP indicator : Informs the abnormality of lamp.
p.54
(
10
) TEMP indicator : Informs the abnormality of internal temperature.
p.54
Remote control
(1) ENTER button : Accepts the selected mode.
(2) MENU button : Displays menus.
p.36
(3) KEYSTONE button : Adjusts keystone distortion.
p.29
(4) ON/STANDBY button : Turns the power on/off (standby).
p.25
(6) INPUT button : Selects input.
p.27
(7) RETURN button : Goes back one screen.
(8) Selection button : Menu selections and adjustments, volume control, etc.
p.36
(
12
) LASER button : Shows a laser pointer.
(9) (5) (10)
(1)
(2)
(8)
(7) (6) (4) (3)
CAUTION
• Do not look into the laser light
source of the remote control or
direct the laser pointer toward a
person or a mirror.
• Handling and adjusting other than
described here may lead to
dangerous exposure to laser.
Name : Main Function
(
13
)AUTO SET button : Sets up input from computer.
p.29
(
14
) Laser indicator : Lights when laser is on.
(
15
) Mouse control button : Controls a mouse pointer.
p.21
(
16
)PAGE+ button : Proceeds PowerPoint
®
slides.
p.21
(
17
) MUTE button : Cuts off the picture and sound temporarily.
p.31
(
18
) FREEZE button : Pauses image.
p.32
(
19
)Ten-Key button : Use when entering password.
(
20
)
Remote control ON/OFF switch
: Switches on/off the remote control.
p.21
(
21
) PICTURE button : Changes image mode.
p.31
(
22
) SCREEN SIZE button : Changes screen size.
p.32
(
23
) RESIZE button : Enlarges image.
p.30
(
24
)PAGE- button : Goes back PowerPoint
®
slides.
p.21
(
25
) R-CLICK button : Functions as right-click of a mouse.
p.21
(
26
) L-CLICK button : Functions as left-click of a mouse.
p.21
(
27
) Remote control code switch : Sets the code of remote control to that of the projector.
(inside the battery cover)
p.43
Remote Control (TLP-XC2000)
(28)
(29)
(30
)
(
28
) CAMERA GAIN- button : Adjusts the gain of the camera.
p.47
(
29
) CAMERA GAIN+ button : Adjusts the gain of the camera.
p.47
(
30
) CAMERA button : Switches between the camera input and the previous
input.
p.46
Note
•For the remainder of this manual, buttons are referred to as follows:
Selection buttons ⇒
; ENTER button ⇒
Remote
Input
Remote
control
items
control Input items
button button
1
[1]
7
[7]
2
[2]
8
[8]
3
[3]
9
[9]
4
[4]
0
[0]
5
[5] Deletes one character.
6
[6]
(4)
(6)
(3)
(13)
(2)
(1)
(12)
(25)
(16)
(17)
(18)
(19)
(20)
(26)
(8)
(7)
(24)
(23)
(22)
(21)
(14)
(27)
(15)
Remote control
transmitter
Laser light
source
Battery
cover
Warning label
