Preparations

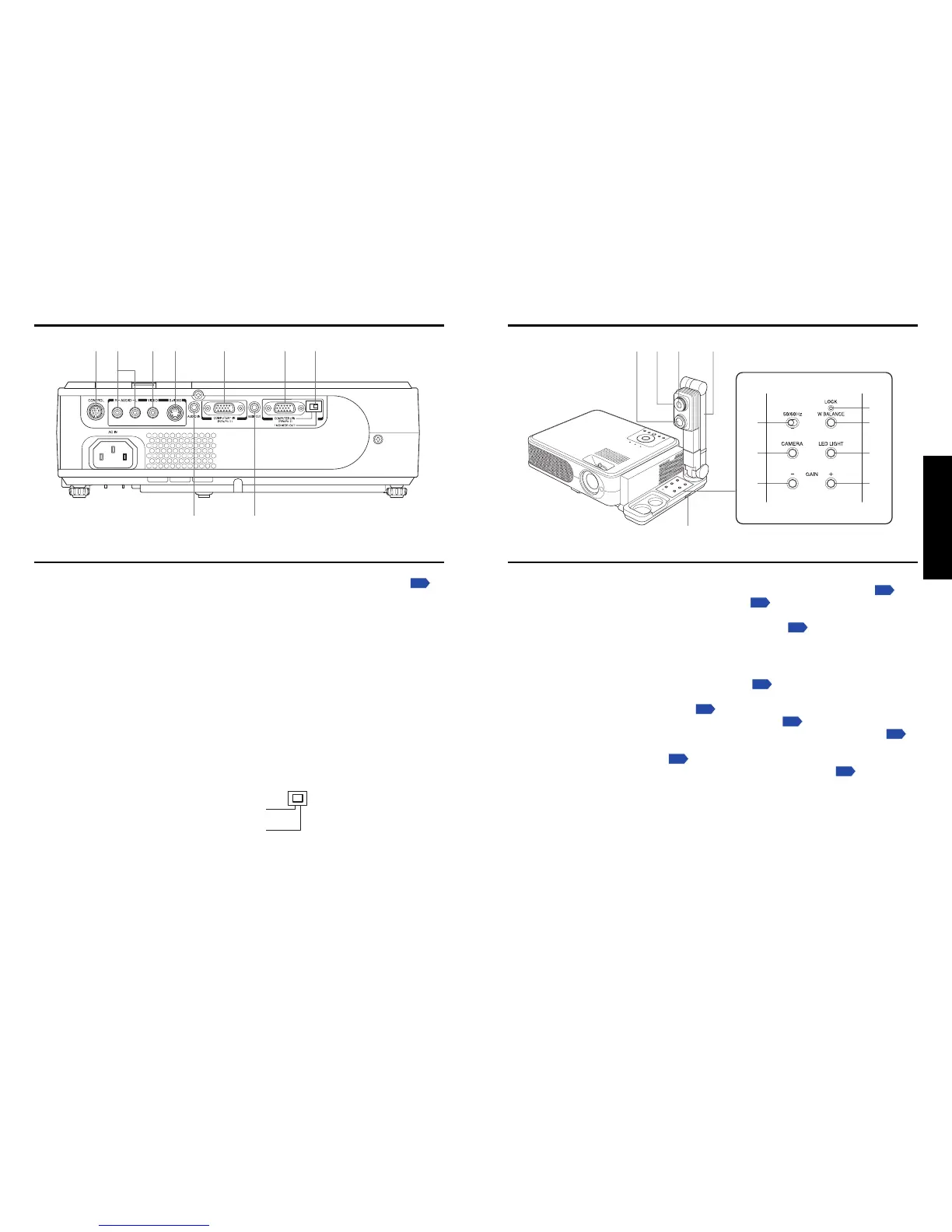

Names of the terminals on the rear panel
(1) (2) (3) (4) (6) (8) (9)
(5) (7)
COMPUTER 2 IN
(Y/P B /P R 2)
/MONITOR OUT
Names of each part on the document camara (models with a document camera)
Name : Main Function
Camera
(1) LED illumination : The illumination LED for referring documents.
p.46
(2) Focus ring : Adjusts the focus.
p.47
(3) Camera lens : The camera lens of the document camera.
(4) Camera arm : Adjusts the camera angle.
p.45
(5) Infrared remote sensor : Senses commands from the remote control.
Control Panel
(6) 50/60 Hz switch : Matches the shutter speed of the camera to your power
system frequency.
p.47
(7) CAMERA button : Switches between the camera input and the previous
input.
p.46
(8) CAMERA GAIN button : Adjusts the camera gain.
p.47
(9) LOCK (W.BALANCE) indicator : Lights when the white balance has been locked.
p.48
( 10 )W.BALANCE button : Switches between auto and locking of white balance.
p.48
( 11 ) LED LIGHT button : Switches on/off the LED illumination.
p.46
(1) (2) (3) (4)
(6)
(5)
(7)
(8)
(9)
(10)
(11)
(8)
Name : Main Function
(1) CONTROL terminal : When operating the projector via a computer, connect
this to the controlling computer’s RS-232C port.
p.59
(2) AUDIO (L/R) terminal : Input audio signals from video equipment.
(3) VIDEO terminal : Input video signals from video equipment.
(4) S-VIDEO terminal : Input S video signals from video equipment.
(5) AUDIO IN terminal : Input audio signals from a computer, or from video
equipment with a component video signal output
terminal.
(6) COMPUTER 1 IN terminal : Input RGB signal from a computer or other source or a
component video signal (Y/P
B/PR) from video
equipment.
(7) AUDIO OUT terminal : Outputs audio signals.
(8) COMPUTER 2 IN terminal : Inputs RGB signal from a computer or other source or
(Also used for MONITOR OUT terminal) a component video signal (Y/PB/PR) rom video
equipment. It can also be used as MONITOR OUT
terminal by the switch of (9).
(9) Switch : Switches between COMPUTER 2 IN and MONITOR
OUT.
