E6581611
E-14
5

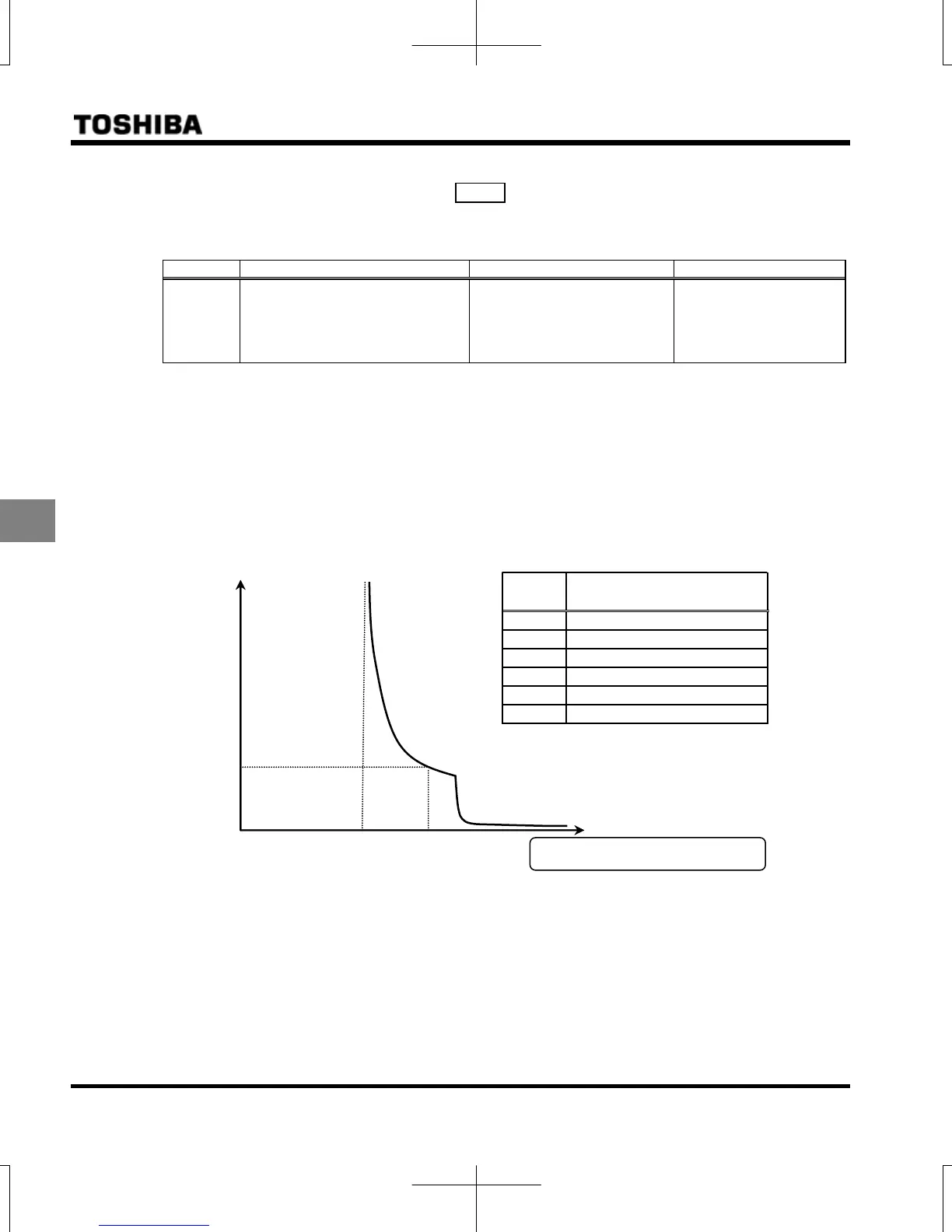

5) Overload characteristic selection aul
Overload characteristic of inverter can be selected to 150%-60s or 120%-60s.
[Parameters settings]
Title Function Adjustment range Default setting
aul
Overload characteristic selection
0: -
1: Constant torque
characteristic（150%-60s）
2: Variable torque
characteristic（120%-60s）
0
● Regarding to characteristic for aul=1 setting, refer to section 5.6.3).
Note 1) In case of aul=2 setting, be sure to install the input AC reactor (ACL) between power supply and inverter.
Note 2) In case of aul=2 setting in three phase 500V-4.0kW model, be sure to press the grounding capacitor
switch and connect the grounding capacitors to the ground.
aul=2 (Variable torque characteristic), f631=0 (120%-60s)
Inverter overload protection characteristic
60
100%: Inverter rated output current
time [s]
Inverter overload
Monitored output current [%]
0
105% 120%
Current
[%]
Inverter overload time [s]
(Outline data)
106 900
110 180
115 90
120 60
140 2
165 0.5
